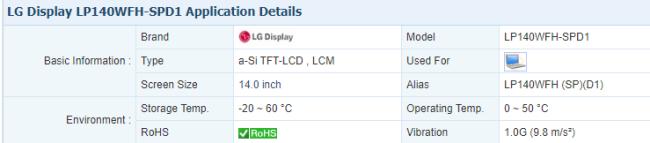

LP140WFH-SPD1 LG Display 14.0" 1920(RGB)×1080, 250 cd/m² INDUSTRIAL LCD DISPLAY

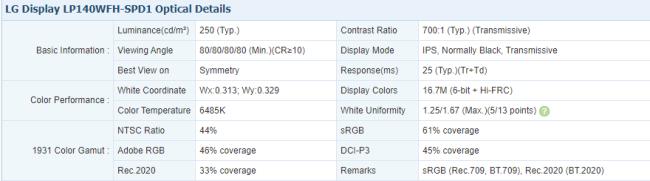

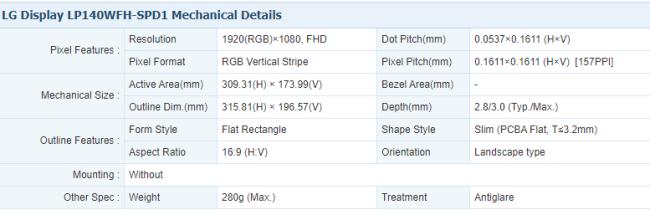

whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 309.31(W)×173.99(H) mm, outline size of 315.81(W)×196.57(H)×3(D) mm, with surface treament of Antiglare, net weight of 280g (Max.), shape stype of Slim (PCBA Flat, T≤3.2mm). As a IPS, Normally Black, Transmissive LCM product, LP140WFH-SPD1 can provides 250 cd/m² display brightness 700:1 transimissive contrast ratio, 80/80/80/80 (Min.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 25 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit + Hi-FRC gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 45% (NTSC). This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 15K hours, With LED Driver. LP140WFH-SPD1 utilizes eDP (2 Lanes) as it's signal inputting systerm, which connected by 30 pins Connector with power supply voltage of 3.3V (Typ.).
