LP140WU2-SPB1 LP140WU2-SPB1 14.0" 1920(RGB)×1200, 250 cd/m² INDUSTRIAL LCD DISPLAY

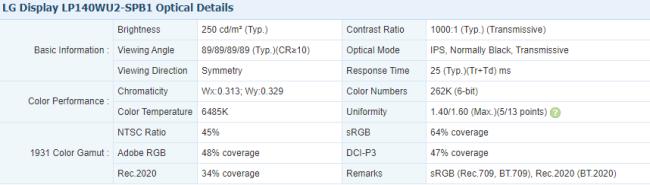

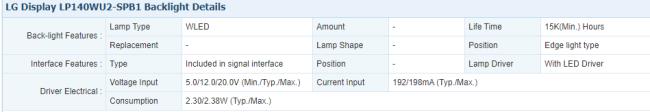

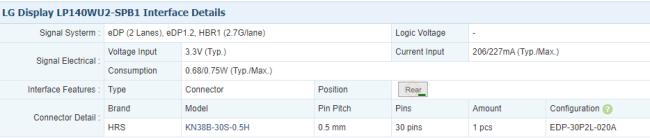

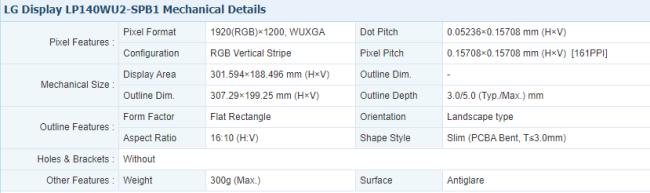

whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 301.594(W)×188.496(H) mm, outline size of 307.29(W)×199.25(H)×5(D) mm, with surface treament of Antiglare, net weight of 300g (Max.), shape stype of Slim (PCBA Bent, T≤3.0mm). As a IPS, Normally Black, Transmissive LCM product, LP140WU2-SPB1 can provides 250 cd/m² display brightness 1000:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 25 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors, also with performance of color gamut 45% (NTSC). This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 15K hours, With LED Driver. LP140WU2-SPB1 utilizes eDP (2 Lanes) as it's signal inputting systerm, which connected by 30 pins Connector with power supply voltage of 3.3V (Typ.).
