LM238WQ1-SSC1 LG 23.8" 2560(RGB)×1440 300 cd/m² INDUSTRIAL LCD DISPLAY
LG Display LM238WQ1-SSC1 Mechanical Details
| Pixel Features : | Resolution | 2560(RGB)×1440, Quad-HD | Dot Pitch(mm) | 0.06845×0.20535 (H×V) |
|---|---|---|---|---|
| Pixel Format | RGB Vertical Stripe | Pixel Pitch(mm) | 0.20535×0.20535 (H×V) [123PPI] | |
| Mechanical Size : | Active Area(mm) | 525.7(H) × 295.7(V) | Bezel Area(mm) | - |
| Outline Dim.(mm) | 535(H) × 313(V) | Depth(mm) | 6.75/13.15 (Typ./Max.) | |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | 3-side borderless |
| Aspect Ratio | 16:9 (H:V) | Orientation | Landscape type | |

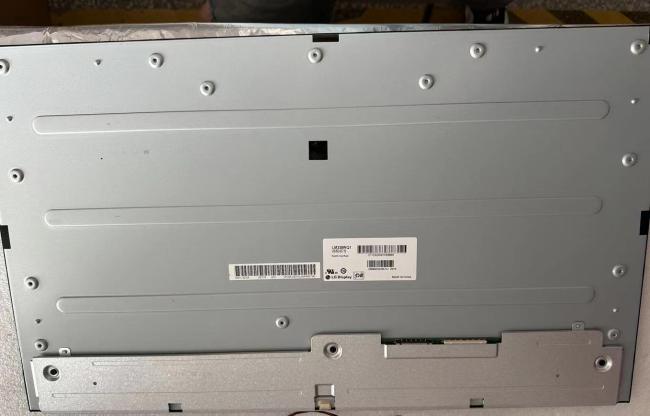

| Mounting : | Rear mounting holes (14-M3) | |||
| Other Spec : | Weight | 2.26Kgs (Typ.) | Treatment | Antiglare (Haze 25%), Hard coating (3H) |
LG Display LM238WQ1-SSC1 Optical Details
| Basic Information : | Luminance(cd/m²) | 300 (Typ.) | Contrast Ratio | 1000:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | Display Mode | IPS, Normally Black, Transmissive | |
| Best View on | Symmetry | Response(ms) | 14 (Typ.)(G to G) | |
| Color Performance : | White Coordinate | X:0.313; Y:0.329 | Display Colors | 16.7M (8-bit) |
| Color Temperature | 6485K | White Uniformity | 1.33 (Max.)(9 points) | |
| 1931 Color Gamut : | NTSC Ratio | 80% | sRGB | 100% coverage |
| Adobe RGB | 78% coverage | DCI-P3 | 84% coverage | |
| Rec.2020 | 60% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
LG Display LM238WQ1-SSC1 Interface Details
| Signal Electrical : | Voltage Supply | 10.0V (Typ.) | Current Supply | 0.42/0.52A (Typ./Max.) | ||
|---|---|---|---|---|---|---|
| Consumption | 4.2/5.2W (Typ./Max.) | |||||
| Signal Type : | LVDS (4 ch, 8-bit) | Signal Voltage | - | |||
| Interface Features : | Position | - | Type | Connector | ||
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| UJU | IS050-C51B-C39-A | 1 pcs | 51 pins | 0.5 mm | ||
| UJU | IS050-C41B-C39-A | 1 pcs | 41 pins | 0.5 mm | ||
LM238WQ1-SSC1 supports display 2560(RGB)×1440 (Quad-HD) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 525.7(W)×295.7(H) mm, outline size of 535(W)×313(H)×13.15(D) mm, with surface treament of Antiglare (Haze 25%), Hard coating (3H), net weight of 2.26Kgs (Typ.). As a IPS, Normally Black, Transmissive LCM product, LM238WQ1-SSC1 can provides 300 cd/m² display brightness 1000:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 14 (Typ.)(G to G) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 100% (sRGB). This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 30K hours, external backlight driver is additionally needed. LM238WQ1-SSC1 utilizes LVDS (4 ch, 8-bit) as it's signal inputting systerm, which connected by 92 pins Connector with power supply voltage of 10.0V (Typ.). It's typical vertical frame rate (Fv) is 60Hz. For more latest product detail of LM238WQ1-SSC1 We strongly recommend that you should refer to datasheet listed on Panelook.com or contact with LG Display or it's distributor. The above parameters are not from the datasheet, only as a reference, please use with caution!
