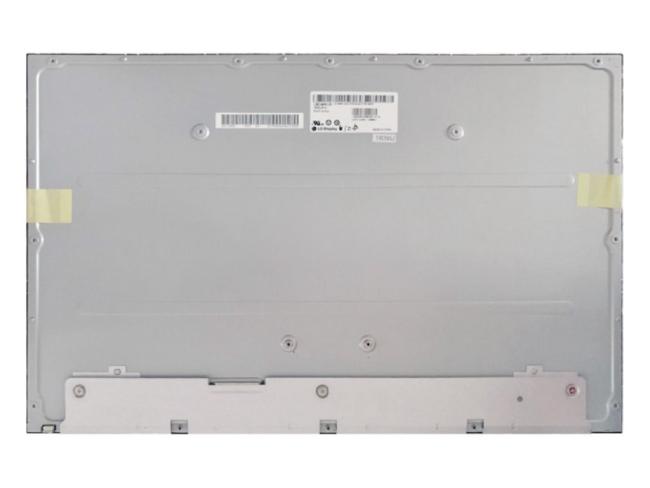

LM240WUB-SSA1LG Display 24" 1920(RGB)×1200, WUXGA 94PPI 350 cd/m² INDUSTRIAL LCD DISPLAY
Price:
Negotiable
MOQ:
1PCS
Delivery Time:
1-2 DAYS
Brand:
LG DISPLAY
Product Description
LG Display LM240WUB-SSA1 Mechanical Details
| Pixel Features : | Resolution | 1920(RGB)×1200, WUXGA | Dot Pitch(mm) | 0.090×0.270 (H×V) |
|---|---|---|---|---|
| Pixel Format | RGB Vertical Stripe | Pixel Pitch(mm) | 0.270×0.270 (H×V) [94PPI] | |
| Mechanical Size : | Active Area(mm) | 518.4(H) × 324(V) | Bezel Area(mm) | - |
| Outline Dim.(mm) | 528.2(H) × 335.9(V) | Depth(mm) | 8.8/12.8 (Typ./Max.) | |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | 4-side borderless |
| Aspect Ratio | 16:10 (H:V) | Orientation | Landscape type | |
| Mounting : | Rear mounting holes (9-M3) | |||
| Other Spec : | Weight | 2.12/2.22Kgs (Typ./Max.) | Treatment | Antiglare (Haze 25%), Hard coating (3H) |
LG Display LM240WUB-SSA1 Optical Details
| Basic Information : | Luminance(cd/m²) | 350 (Typ.) | Contrast Ratio | 1000:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | Display Mode | IPS, Normally Black, Transmissive | |
| Best View on | Symmetry | Response(ms) | 14 (Typ.)(G to G) | |
| Color Performance : | White Coordinate | X:0.313; Y:0.329 | Display Colors | 16.7M (6-bit + Hi-FRC) |
| Color Temperature | 6485K | White Uniformity | 1.33 (Max.)(9 points) | |
| 1931 Color Gamut : | NTSC Ratio | 76% | sRGB | 99% coverage |
| Adobe RGB | 77% coverage | DCI-P3 | 79% coverage | |
| Rec.2020 | 56% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
LG Display LM240WUB-SSA1 Interface Details
| Signal Electrical : | Voltage Supply | 5.0V (Typ.) | Current Supply | 485/610mA (Typ./Max.) | ||
|---|---|---|---|---|---|---|
| Consumption | 2.45/3.05W (Typ./Max.) | |||||
| Signal Type : | LVDS (2 ch, 8-bit) | Signal Voltage | - | |||
| Interface Features : | Position | Type | Connector | |||
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| UJU | IS100-L30O-C23 | 1 pcs | 30 pins | 1.0 mm | LVDS-30P2C8B-160B | |
LG Display LM240WUB-SSA1 Backlight Details
| Backlight Features: | Shape | 4 strings | Type | WLED | Position | Edge light type (Bottom side) |
|---|---|---|---|---|---|---|
| Replacement | - | Quantity | 14S4P | Life Time | 30K(Min.) (Hours) | |
| Lamp Electrical : | Voltage Supply | 40.3±2.9V | Current Supply | 80/85mA (Typ./Max.) | ||
| Consumption | 12.9/13.9W (Typ./Max.) | |||||
| Interface Features : | Position | Type | Connector | |||
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| JST | BM06B-SHJS-TB(HF) | 1 pcs | 6 pins | 1.0 mm | BLE-6PINS-CCAACC | |
| Backlight Driver : | No | |||||
LG Display LM240WUB-SSA1 Application Details
| Basic Information : | Brand | Model | LM240WUB-SSA1 | |
|---|---|---|---|---|
| Type | LCM a-Si TFT-LCD | Used For | ||
| Screen Size | 24.0" | Alias | - | |
| Environment : | Storage Temp. | -20 ~~ 60 °C | Operating Temp. | 0 ~~ 50 °C |
| RoHS | Vibration | - |
FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
