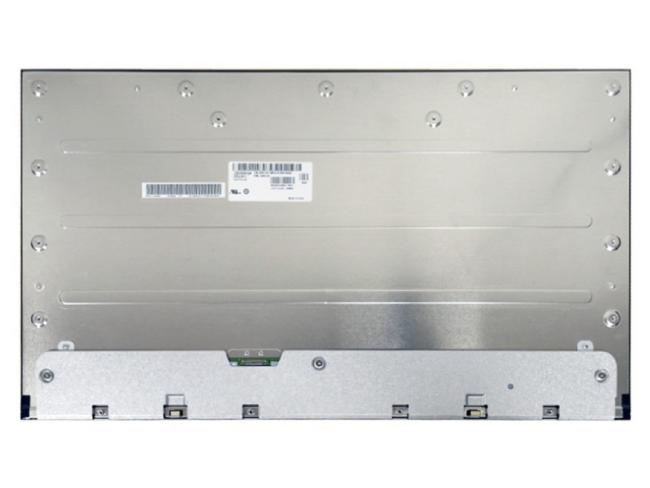

LM250WQ4-SSA1 LG Display 25" 2560(RGB)×1440, Quad-HD 117PPI 400 cd/m² INDUSTRIAL LCD DISPLAY

Price Negotiable
Price: Negotiable
MOQ: 1PCS
Delivery Time: 1-2 DAYS
Brand: LG DISPLAY
Product Description



LG Display LM250WQ4-SSA1 Mechanical Details

Pixel Features :
Number of Pixel
2560(RGB)×1440, Quad-HD
Arrangement
RGB Vertical Stripe
Dot Pitch(W×H)
0.0725×0.2160 mm
Pixel Pitch(W×H)
0.2160×0.2160 mm [117PPI]
Physical Size :
Active Viewing
552.96(W)×311.04(H) mm
Overall Dim.
565(W)×324.25(H) mm
Bezel Opening
-
Overall Depth
7.9/14 (Typ./Max.) mm
Outline Features :
Form Shape
Flat Rectangle
Orientation
Landscape type
Aspect Ratio(W:H)
16:9
Shape Style
4-side borderless
Fixation :
Rear mounting holes (17-M3)
Other Detail :
Mass
1.99/2.09Kgs (Typ./Max.)
Surface
Antiglare (Haze 25%), Hard coating (3H)

LG Display LM250WQ4-SSA1 Optical Details

Basic Detail :
Luminance
400 cd/m² (Typ.), HDR400
Contrast Ratio
1000:1 (Typ.) (Transmissive)
Good View at
Symmetry
Response Speed
14 (Typ.)(G to G) ms
Viewing Angle
89/89/89/89 (Typ.)(CR≥10)
Operating Mode
IPS, Normally Black, Transmissive
Color Performance :
Chromaticity
Wx:0.313; Wy:0.329
Support Color
16.7M (8-bit)
Color Temperature
6485K
White Variation
1.33 (Max.)(9 points)
1931 Color Gamut :
NTSC Ratio
92%
sRGB
100% coverage
Adobe RGB
86% coverage
DCI-P3
94% coverage
Rec.2020
69% coverage
Remarks
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

LG Display LM250WQ4-SSA1 Interface Detail

Signal Electrical :
Input Current
410/515mA (Typ./Max.)(60Hz)
Input Voltage
10.0V (Typ.)
Consumption
4.1/5.15W (Typ./Max.)
Signal Interface
eDP (4 Lanes), HBR1 (2.7G/lane)
Interface Features :
Position

Type
Connector
Interface Detail :
Brand
Model
Pitch
Pins
Amount
Pin Assignment
LS Mtron
GT05Q-30S-H10-MN
0.5 mm
30 pins
1 pcs
EDP-30P4L-031A

LG Display LM250WQ4-SSA1 Lightting Details

Lamp Features :
Lamp Type
WLED
Amount
9S8P
Position
Edge light type (Bottom side)
Exchange
-
Lamp Shape
8 strings
Lamp Life
30K(Min.) (Hours)
Lamp Electrical :
Input Voltage
25.8±1.8V
Input Current
85/90mA (Typ./Max.)
Consumption
17.6/18.8W (Typ./Max.)
Interface Features :
Position

Type
Connector
Interface Detail :
Brand
Model
Pitch
Pins
Amount
Pin Assignment
JST
BM06B-SHJS-TB(HF)
1.0 mm
6 pins
2 pcs
BLE-6PINS-CCAACC
Backlight Driver :
No
