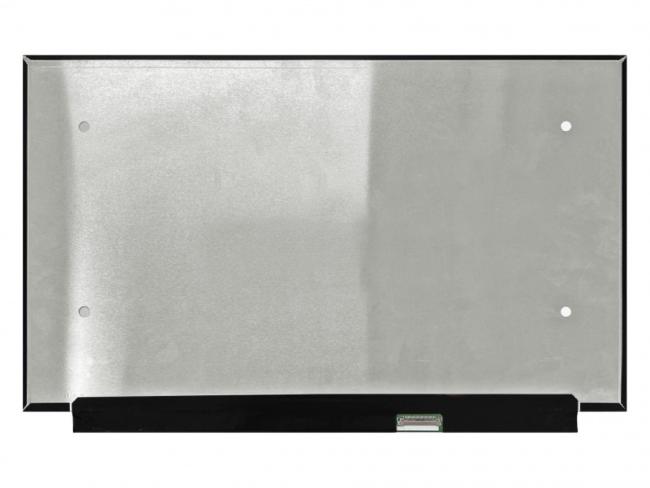

LP133WF9-SPF2 LG Display 13.3" 1920(RGB)×1080, FHD 166PPI 400 cd/m² INDUSTRIAL LCD DISPLAY

Price Negotiable
Price: Negotiable
MOQ: 1PCS
Delivery Time: 1-2 DAYS
Brand: LG DISPLAY
Product Description



LG Display LP133WF9-SPF2 Mechanical Details

Pixel Features :
Resolution
1920(RGB)×1080, FHD
Dot Pitch(mm)
0.051×0.153 (H×V)
Pixel Format
RGB Vertical Stripe
Pixel Pitch(mm)
0.153×0.153 (H×V) [166PPI]
Mechanical Size :
Active Area(mm)
293.76(H) × 165.24(V)
Bezel Area(mm)
295.76(H) × 167.54(V)
Outline Dim.(mm)
298.76(H) × 176.24(V)
Depth(mm)
2.0/3.8 (Typ./Max.)
Outline Features :
Form Style
Flat Rectangle
Shape Style
Slim (PCBA Bent, T≤3.0mm)
Aspect Ratio
16:9 (H:V)
Orientation
Landscape type
Mounting :
Without
Other Spec :
Weight
170g (Max.)
Treatment
Antiglare, Hard coating (3H)



LG Display LP133WF9-SPF2 Optical Details

Basic Information :
Luminance(cd/m²)
400 (Typ.)
Contrast Ratio
1500:1 (Typ.) (Transmissive)
Viewing Angle
85/85/85/85 (Typ.)(CR≥10)
Display Mode
IPS, Normally Black, Transmissive
Best View on
Symmetry
Response(ms)
30 (Typ.)(Tr+Td)
Color Performance :
White Coordinate
Wx:0.313; Wy:0.329
Display Colors
16.7M (8-bit)
Color Temperature
6485K
White Uniformity
1.40/1.60 (Max.)(5/13 points)
1931 Color Gamut :
NTSC Ratio
74%
sRGB
99% coverage
Adobe RGB
76% coverage
DCI-P3
77% coverage
Rec.2020
55% coverage
Remarks
sRGB (Rec.709, BT.709), Rec.2020 (BT.202



LG Display LP133WF9-SPF2 Interface Detail

Signal Electrical :
Voltage Supply
3.3V (Typ.)
Current Supply
116/126mA (Typ./Max.)
Consumption
0.38/0.42W (Typ./Max.)
Signal Type :
eDP (2 Lanes), eDP1.4a, HBR1 (2.7G/lane)
Logic Voltage
-
Interface Features :
Position

Type
Connector
Interface Detail :
Brand
Model
Pitch
Pins
Quantity
Pin Configuration
HRS
KN38B-30S-0.5H
0.5 mm
30 pins
1 pcs
EDP-30P2L-020A



LG Display LP133WF9-SPF2 Backlight Details

Backlight Features :
Type
WLED
Quantity
-
Position
Edge light type
Replacement
-
Shape
-
Life Time
15K(Min.) (Hours)
Interface Features :
Position
-
Type
Included in signal interface
Backlight Driver :
With LED Driver
Driver Electrical :
Voltage Supply
5.0/12.0/21.0V (Min./Typ./Max.)
Current Supply
140/144mA (Typ./Max.)
Consumption
1.69/1.73W (Typ./Max.)

FAQ:

Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
