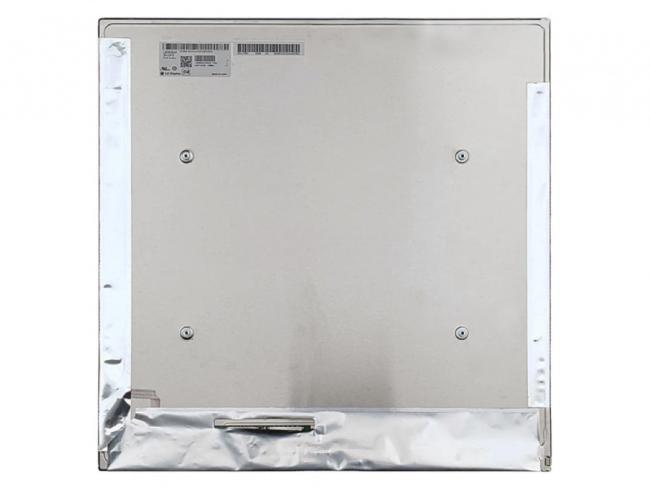

LM265SQ1-SLA1 LG Display 26.5" 1920(RGB)×1920 102PPI, 300 cd/m² INDUSTRIAL LCD DISPLAY
LG Display LM265SQ1-SLA1 Mechanical Details
| Screen Size : | 26.5" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Number | Pixel Format | Dot Pitch (H×V) | Pixel Pitch (H×V) |
| 1920(RGB)×1920 | RGB Vertical Stripe | 0.0826×0.2478 mm (H×V) | 0.2478×0.2478 mm (H×V) [102PPI] | |
| Mechanical Size : | Display Area (H×V) | Bezel Opening (H×V) | Overall Dimension (H×V) | Overall Depth |
| 475.776×475.776 mm (H×V) | - | 491.8×491.8 mm (H×V) | 8.4/13.1 (Typ./Max.) mm | |
| Outline Features : | Form Shape | Aspect Ratio (H:V) | Orientation | Shape Style |
| Flat Rectangle | 21:9 | Landscape type | 3-side borderless | |
| Other Spec : | Mass | Panel Cover | Surface Treatment | |
| 2.21Kgs (Typ.) | - | Antiglare, Hard coating (3H) | ||
| Holes & Brackets : | Rear mounting poles (13-M3) | |||
LG Display LM265SQ1-SLA1 Optical Details
| Basic Information : | Luminance | Work Mode | Contrast Ratio |
|---|---|---|---|
| 300 cd/m² (Typ.) | IPS, Normally Black, Transmissive | 1000:1 (Typ.) (Transmissive) | |
| Good View at | Viewing Angle | Response Time | |
| Symmetry | 89/89/89/89 (Typ.)(CR≥10) | 14 (Typ.)(G to G) (ms) | |
| Dispaly Color : | Color Temperature: | Support Color | Color Coordinate |
| 6485K | 1.07B (8-bit + Hi-FRC) | X:0.313; Y:0.329 | |
| 1931 Color Gamut : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 77% | 100% | 78% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 80% | 57% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| White Uniformity : | 1.33 (Max.)(9 points) | ||
LG Display LM265SQ1-SLA1 Backlight Features
| Back-light Features: | Type | Position | Life(Hours) | Amount | Shape | Replacement |
|---|---|---|---|---|---|---|
| WLED | Edge light type | 30K(Min.) | 12S4P | 4 strings | - | |
| WLED Electrical : | Input Voltage | Input Current | Power Consumption | |||
| 36.6±2.4V | 120/125mA (Typ./Max.) | 35.1/37.5W (Typ./Max.) | ||||
| Interface Features : | WLED Driver State | Physical Type | Interface Position | |||
| No | Connector | |||||
| Interface Detail | Brand Name | Model Name | Amount | Pins | Pin Pitch | Pin Configuration |
| JST | SM06B-SHJH(HF) | 2 pcs | 6 pins | 1.0 mm | BLE-6PINS-CCAACC | |
LG Display LM265SQ1-SLA1 Interface Features
| Signal Electrical : | Input Voltage | Input Current | Power Consumption | |||
|---|---|---|---|---|---|---|
| 10.0V (Typ.) | 0.8/1.0A (Typ./Max.) | 9.7/12.2W (Typ./Max.) | ||||
| Interface Features : | Signal Type | Physical Type | Interface Position | |||
| LVDS (8 ch, 10-bit) | Connector | |||||
| Interface Detail : | Brand Name | Model Name | Amount | Pins | Pin Pitch | Pin Configuration |
| UJU | IS050-C51B-C39-S | 1 pcs | 51 pins | 0.5 mm | ||
| UJU | IS050-C41B-C39-S | 3 pcs | 41 pins | 0.5 mm | ||
whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 475.776(W)×475.776(H) mm, outline size of 491.8(W)×491.8(H)×13.1(D) mm, viewing area size of 479.0(W)×479.0(H) mm, with surface treament of Antiglare (Haze 25%), Hard coating (3H), net weight of 2.21Kgs (Typ.), active_to_active splicing seam 16.0 mm. As a IPS, Normally Black, Transmissive LCM product, LM265SQ1-SLA1 can provides 300 cd/m² display brightness 1000:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 14 (Typ.)(G to G) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 99% (sRGB). This product adopted WLED as it's backlight systerm which was placed as Edge light type (Left side) and have a working life time of 30K hours, external backlight driver is additionally needed. LM265SQ1-SLA1 utilizes LVDS (4 ch, 8-bit) as it's signal inputting systerm, which connected by 92 pins Connector with power supply voltage of 10V (Typ.). It's typical vertical frame rate (Fv) is 60Hz. For more latest product detail of LM265SQ1-SLA1 We strongly recommend that you should refer to datasheet listed on Panelook.com or contact with LG Display or it's distributor. All specification details are inputted by Panelook engineers according to datasheet, but we cannot guarantee the spec listed is entirely correct.
