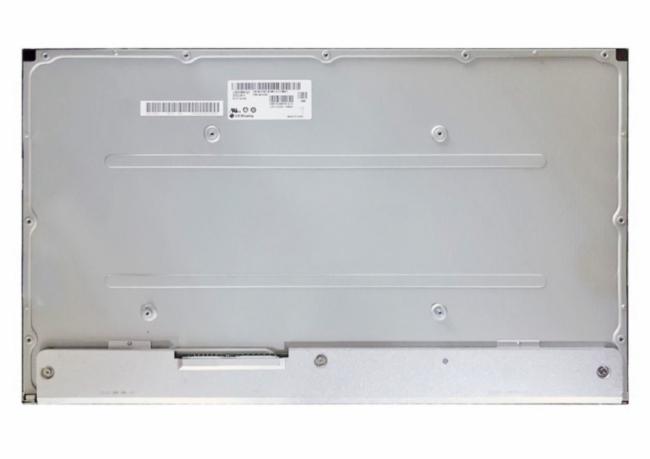

LM250WQ2-SSA1 LG Display 25" 2560(RGB)×1440 Quad-HD 117PPI 300 cd/m² INDUSTRIAL LCD DISPLAY

whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 552.96(W)×311.04(H) mm, outline size of 565(W)×330.7(H)×17.4(D) mm, with surface treament of Antiglare, Hard coating (3H), net weight of 2.40/2.51Kgs (Typ./Max.). As a IPS, Normally Black, Transmissive LCM product, LM250WQ2-SSA1 can provides 300 cd/m² display brightness 1000:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 14 (Typ.)(G to G) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit + Hi-FRC gray scale signal for each dot, thus presenting a palette of 1.07B colors, also with performance of color gamut 100% (Adobe). This product adopted GB-r LED as it's backlight systerm which was placed as Edge light type (Bottom side) and have a working life time of 30K hours, external backlight driver is additionally needed. LM250WQ2-SSA1 utilizes LVDS (4 ch, 10-bit) as it's signal inputting systerm, which connected by 92 pins Connector with power supply voltage of 10.0V (Typ.). It's typical vertical frame rate (Fv) is 60Hz. For more latest product detail of LM250WQ2-SSA1 we strongly recommend that you should refer to datasheet listed on Panelook.com or contact with LG Display.
