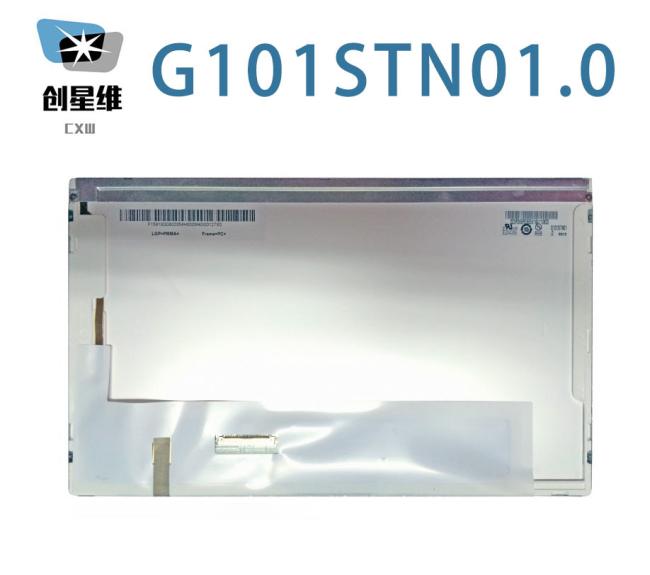

10.1 Inch 1024*600 G101STN01.0 WLED Backlight AUO TFT Display
10.1 Inch 1024*600 TFT LCD G101STN01.0 With LED Driver WLED Backlight
1. Main Information:
AU Optronics Corp.G101STN01.0 is a 10.1 inch diagonal a-Si TFT-LCD display panel product, with an integral WLED backlight system, With LED Driver , without touch screen.
It features an operating temperature range of -10 ~ 60°C , a storage temperature range of -30 ~ 70°C , and the maximal vibration level of 1.5G (14.7 m/s²).
It's general features are following: WLED Backlight, With LED Driver, Reverse I/F, 6/8 bit, Matte .
Based on its features, this model be applied to Industrial etc.
2. AUO G101STN01.0 Optical Features:
| Basic Information : | Luminance (cd/m²) | Viewing Angle (L/R/U/D) | Response Time (ms) |
|---|---|---|---|
| 250 (Typ.) | 70/70/60/60 (Typ.)(CR≥10) | 7/9 (Typ.)(Tr/Td) | |
| Best View on | Display Mode | Contrast Ratio | |
| - | TN, Normally White, Transmissive | 500 : 1 (Typ.) (Transmissive) | |
| Dispaly Color : | Color Temperature | Display Colors | White Coordinate |
| 6485K | 262K/16.7M (6-bit / 6-bit + Hi-FRC) | X:0.313; Y:0.329 | |
| 1931 Color Gamlt : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 47% | 65% | 49% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 48% | 35% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| White Variation : |
1.25 (Max.)(5 points) |
||
3. AUO G101STN01.0 Mechanical Features:
| Panel Size : | 10.1 Inch | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Format | Pixel Configuration | Pixel Pitch (mm) | Dot Pitch (mm) |
| 1024(RGB)×600 [WSVGA] | RGB Vertical Stripe | 0.2175×0.2088 [117PPI] | 0.0725×0.2088 | |
| Mechanical Size : | Active Area (mm) | Bezel Area (mm) | Outline Dimension (mm) | Outline Depth (mm) |
| 222.72(H) × 125.28(V) | 226.34(H) × 128.1(V) | 235(H) × 143(V) | 4.9/5.2 (Typ./Max.) mm | |
| Outline Features : | Form Factor | Orientation | Aspect Ratio | Shape Style |
| Flat Rectangle | Landscape type | 16:9 (H:V) | - | |
| Mounting : | Side mounting holes (4-M3) on left, right bezel | |||
| Other Detail | Weight | Panel Cover | Treatment | |
| 180g (Typ.) | - | Antiglare, Hard coating (3H) | ||
4. AUO G101STN01.0 Backlight Features:
| Lamp Features: | Type | Position | Quantity | Shape | Life(Hours) | Lamp Exchange |
|---|---|---|---|---|---|---|
| WLED | Edge light type | - | - | 15K(Min.) | - | |
| Interface Features : | Position | Backlight Driver | Type | |||
| - | With LED Driver | Included in panel signal interface | ||||
| Driver Electrical : | Voltage Supply | Current Supply | Power Consumption | |||
| 5.0/12.0/23.0V (Min./Typ./Max.) | 150/165mA (Typ./Max.) | |||||
5. FAQ:
Q1:What's the quality of your LCD Panel?
A:Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2:What is your return and refund policy?
A:We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3:How long is the lead time?
A:The lead time is about 1-3 working days after receipt of payment.
Q4:How can I get the quotation?
A:Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
