LM270WQ1-SLC2 Upside I/F 27 Inch 92 Pins LG TFT Display 89/89/89/89 (Typ.)(CR≥10)
Price:
150USD
MOQ:
1PCS
Delivery Time:
1 DAY
Brand:
LG Display
Product Description

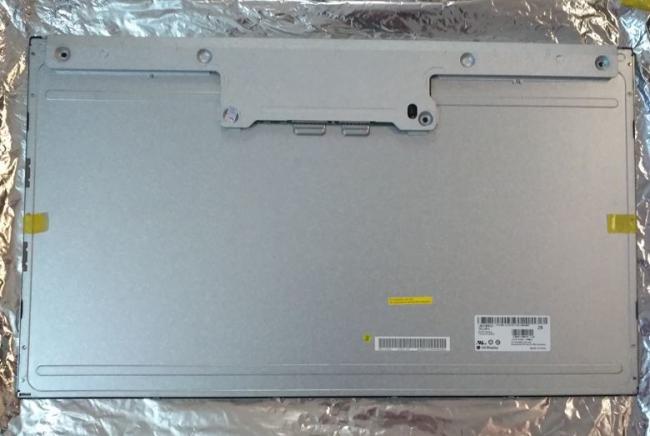

27 Inch 92 pins Connector LM270WQ1-SLC2 Upside I/F For Desktop Monitor
1. Main Information:
The LM270WQ1-SLC2 (Alias: LM270WQ1 (SL)(C2)) is a 27.0 inch diagonal a-Si TFT-LCD display panel product from LG Display Co., Ltd. with an integral WLED backlight system, without backlight driver, without touch screen. It features an operating temperature range of 0 ~ 50°C , a storage temperature range of -20 ~ 60°C , and the maximal vibration level of 1.0G (9.8 m/s²).
It's general features are following: sRGB, WLED Backlight, Upside I/F, Matte . Based on its features,this model be applied to Desktop Monitor, Industrial, Medical Imaging etc.
2. LG Display LM270WQ1-SLC2 Mechanical Features:
| Screen Size : | 27 Inch | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Number | Pixel Format | Dot Pitch (H×V) | Pixel Pitch (H×V) |
| 2560(RGB)×1440, Quad-HD | RGB Vertical Stripe | 0.0777×0.2331 mm | 0.2331×0.2331 mm [108PPI] | |
| Mechanical Size : | Display Area (H×V) | Bezel Opening (H×V) | Overall Dimension (H×V) | Overall Depth |
| 596.736×335.664 mm | 602.0×340.4 mm | 630×368.2 mm | 8.7/15.4 (Typ./Max.) mm | |
| Outline Features : | Form Shape | Aspect Ratio (H:V) | Orientation | Shape Style |
| Flat Rectangle | 16:9 | Landscape type | - | |
| Other Spec : | Mass | Panel Cover | Surface Treatment | |
| 2.62/2.75Kgs (Typ./Max.) | - | Antiglare, Hard coating (3H) | ||
| Holes & Brackets : | Side mounting holes (4-M3) on left, right bezel | |||
3. LG Display LM270WQ1-SLC2 Optical Features:
| Basic Information : | Luminance | Work Mode | Contrast Ratio |
|---|---|---|---|
| 350 cd/m² (Typ.) | AH-IPS, Normally Black, Transmissive | 1000:1 (Typ.) (Transmissive) | |
| Good View at | Viewing Angle | Response Time | |
| Symmetry | 89/89/89/89 (Typ.)(CR≥10) | 12 (Typ.)(G to G) (ms) | |
| Dispaly Color : | Color Temperature: | Support Color | Color Coordinate |
| 6485K | 16.7M (8-bit) | X:0.313; Y:0.329 | |
| 1931 Color Gamlt : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 82% | 100% | 80% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 84% | 61% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| White Uniformity : | 1.43 (Max.)(9 points) | ||
4. LG Display LM270WQ1-SLC2 Backlight Features:
| Back-light Features: | Type | Position | Life(Hours) | Amount | Shape | Replacement |
|---|---|---|---|---|---|---|
| WLED | Edge light type (Bottom side) | 30K(Min.) | 17S4P | 4 strings | - | |
| WLED Electrical : | Input Voltage | Input Current | Power Consumption | |||
| 53.6±3.4V | 120/125mA (Typ./Max.) | 25.7/27.3W (Typ./Max.) | ||||
| Interface Features : | WLED Driver State | Physical Type | Interface Position | |||
| No | Connector | |||||
| Interface Detail | Brand Name | Model Name | Amount | Pins | Pin Pitch | Pin Configuration |
| JST | SM06B-SHJH(HF) | 1 pcs | 6 pins | 1.0 mm | BLE-6PINS-CCAACC | |
5. FAQ
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
