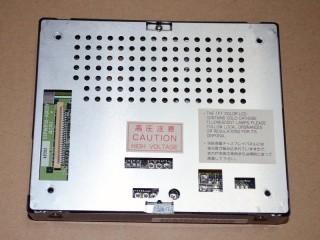

NL3224AC35-09 72PPI 5.5 INCH 320×240 Industrial TFT Display
NL3224AC35-09 5.5 INCH NEC TFT-LCD 320(RGB)×240 (QVGA) 72PPI PIXEL industrial LCD panel
1. Main Information:
The NL3224AC35-09 is a 5.5 inch diagonal a-Si TFT-LCD display panel product from NEC LCD Technologies, Ltd. (hereafter called NEC), without touch screen. It's general features are summarized by Panelook in the following: U/D,L/R Reverse . Based on its features, Panelook recommend that this model be applied to Industrial etc
2. NEC NL3224AC35-09 Mechanical Features
| Screen Size : | 5.5" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Number | Pixel Format | Dot Pitch (H×V) | Pixel Pitch (H×V) |
| 320(RGB)×240, QVGA | RGB Vertical Stripe | 0.116×0.348 mm | 0.348×0.348 mm [72PPI] | |
| Mechanical Size : | Display Area (H×V) | Bezel Opening (H×V) | Overall Dimension (H×V) | Overall Depth |
| 111.36×83.52 mm | - | - | - | |
| Outline Features : | Form Shape | Aspect Ratio (H:V) | Orientation | Shape Style |
| Flat Rectangle | 4:3 | Landscape type | - | |
| Other Spec : | Mass | Panel Cover | Surface Treatment | |
| - | - | Antireflection | ||
| Holes & Brackets : | Rear mounting holes (4-M3) | |||
3. NEC NL3224AC35-09 Optical Features
| Basic Information : | Luminance | Work Mode | Contrast Ratio |
|---|---|---|---|
| - | TN, Normally White, Transmissive | 400:1 (Typ.) (Transmissive) | |
| Good View at | Viewing Angle | Response Time | |
| - | - | 5/25 (Typ.)(Tr/Td) (ms) | |
| Dispaly Color : | Color Temperature: | Support Color | Color Coordinate |
| 6914K | 262K (6-bit) | X:0.305; Y:0.330 | |
| White Uniformity : | 1.25/1.35 (Typ./Max.)(5 points) | ||
4. NEC NL3224AC35-09 Interface Features
| Signal Electrical : | Input Voltage | Input Current | Power Consumption | |||
|---|---|---|---|---|---|---|
| 3.3/5.0V (Typ.)(VCC) | 180/120mA (Typ.)(ICC) | - | ||||
| Interface Features : | Signal Type | Physical Type | Interface Position | |||
NEC NL3224AC35-09 Application Features
| Basic Information : | Manufacturer | Panel Model | Panel Type | Alias |
|---|---|---|---|---|
| NL3224AC35-09 | a-Si TFT-LCD , LCM | - | ||
| Environment : | RoHS State | Operating Temp. | Storage Temp. | Vibration Level |
NEC NL3224AC35-09 Mechanical Features
| Panel Size : | 5.5" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Format | Pixel Configuration | Pixel Pitch (mm) | Dot Pitch (mm) |
| 320(RGB)×240 [QVGA] | RGB Vertical Stripe | 0.348×0.348 [72PPI] | 0.116×0.348 | |
| Mechanical Size : | Active Area (mm) | Bezel Area (mm) | Outline Dimension (mm) | Outline Depth (mm) |
| 111.36(H) × 83.52(V) | - | - | - | |
| Outline Features : | Form Factor | Orientation | Aspect Ratio | Shape Style |
| Flat Rectangle | Landscape type | 4:3 (H:V) | ||
| Mounting : | Rear mounting holes (4-M3) | |||
| Other Detail : | Weight | Panel Cover | Treatment | |
| - | - | Antireflection | ||
NEC NL3224AC35-09 Electronics Features
| Reverse Scan : | Yes (U/D, L/R) |
|---|---|
| Vertical Frequency : | 60Hz |
whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 111.36(W)×83.52(H) mm, with surface treament of Antireflection. As a TN, Normally White, Transmissive LCM product, NL3224AC35-09 can provides 400:1 transimissive contrast ratio , and response time of 5/25 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors. NL3224AC35-09 utilizes CMOS (1 ch, 6-bit) as it's signal inputting systerm Connector with power supply voltage of 3.3/5.0V (Typ.)(VCC)
