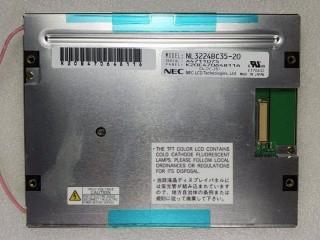

NL3224BC35-20 5.5 INCH 320×240 72PPI NEC TFT Display 55/55/50/40 (Typ.)(CR≥10)
NL3224BC35-20 5.5 INCH NEC TFT-LCD 320(RGB)×240 [QVGA] 72PPI PIXEL -10 ~ 70 °C industrial LCD panel
1. Main Information:
NL3224BC35-20 is a 5.5" diagonal a-Si TFT-LCD display panel product from NEC LCD Technologies, Ltd. (hereafter called NEC), with an integral CCFL backlight system, without backlight driver, without touch screen. It features an operating temperature range of -10 ~ 70°C , a storage temperature range of -30 ~ 80°C , and the maximal vibration level of 3.0G (29.4 m/s²). It's general features are summarized by Panelook in the following: Lamp Repaceable, U/D,L/R Reverse, Matte , NL3224BC35-20 & NL3224BC35-21 Variation: Position of Lamp Cable Compartment. Side compartment: NL3224BC35-20, Back compartment: NL3224BC35-21. Based on its features, Panelook recommend that this model be applied to Industrial etc
2. NEC NL3224BC35-20 Mechanical Features
| Screen Size : | 5.5" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Number | Pixel Format | Dot Pitch (H×V) | Pixel Pitch (H×V) |
| 320(RGB)×240, QVGA | RGB Vertical Stripe | 0.116×0.348 mm | 0.348×0.348 mm [72PPI] | |
| Mechanical Size : | Display Area (H×V) | Bezel Opening (H×V) | Overall Dimension (H×V) | Overall Depth |
| 111.36×83.52 mm | 116.4×88.5 mm | 134×104.5 mm | 12.5±0.5 mm | |
| Outline Features : | Form Shape | Aspect Ratio (H:V) | Orientation | Shape Style |
| Flat Rectangle | 4:3 | Landscape type | - | |
| Other Spec : | Mass | Panel Cover | Surface Treatment | |
| 210/220g (Typ./Max.) | - | Antiglare, Hard coating (3H), Antireflection | ||
| Holes & Brackets : | Rear mounting holes (4-M3) | |||
3. NEC NL3224BC35-20 Optical Features
| Basic Information : | Luminance | Work Mode | Contrast Ratio |
|---|---|---|---|
| 400 cd/m² (Typ.) | TN, Normally White, Transmissive | 400:1 (Typ.) (Transmissive) | |
| Good View at | Viewing Angle | Response Time | |
| 12 o'clock | 55/55/50/40 (Typ.)(CR≥10) | 5/25 (Typ.)(Tr/Td) (ms) | |
| Dispaly Color : | Color Temperature: | Support Color | Color Coordinate |
| 6914K | 262K (6-bit) | X:0.305; Y:0.330 | |
| 1931 Color Gamlt : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 49% | 68% | 52% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 51% | 37% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| White Uniformity : | 1.25/1.35 (Typ./Max.)(5 points) | ||
4. NEC NL3224BC35-20 Backlight Features
| Back-light Features: | Type | Position | Life(Hours) | Amount | Shape | Replacement |
|---|---|---|---|---|---|---|
| CCFL | Edge light type (Top and Bottom) | 40K(Typ.) | 2 pcs | Straight | Replaceable (55LHS11) | |
| CCFL Electrical : | Input Voltage | Input Current | Power Consumption | |||
| 350V (Typ.) | 4.5/5.0/5.5mA (Min./Typ./Max.) | |||||
| Operating Frequency | Startup Voltage | |||||
| 39/43/47KHz (Min./Typ./Max.) | 550/780V (Min.)(Ta=+25/-10℃) | |||||
| Interface Features : | CCFL Driver State | Physical Type | Interface Position | |||
| No | Connector | - | ||||
| Interface Detail | Brand Name | Model Name | Amount | Pins | Pin Pitch | Pin Configuration |
| JST | BHR-03VS-1 | 2 pcs | 3 pins | 4.0 mm | BLL-3PINS-HNL | |
