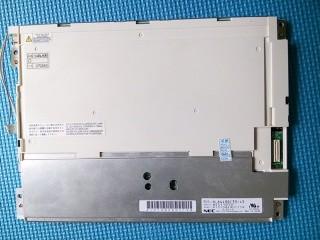

NL6448BC33-49 76PPI Anti Glare 10.4 INCH NEC TFT Display 640(RGB)×480 [VGA] 76PPI
Price:
80USD
MOQ:
1PCS
Delivery Time:
1 DAY
Brand:
NEC
Product Description
NL6448BC33-49 10.4 INCH NEC TFT-LCD 640(RGB)×480 [VGA] 76PPI PIXEL 0 ~ 55 °C industrial LCD panel
1. NEC NL6448BC33-49 Mechanical Features
| Panel Size : | 10.4 inch | |||
|---|---|---|---|---|
| Pixel Features : | Resolution | Pixel Arrangement | Dot Pitch (W×H) | Pixel Pitch (W×H) |
| 640(RGB)×480, VGA | RGB Vertical Stripe | 0.110×0.330 mm | 0.330×0.330 mm [76PPI] | |
| Mechanical Size : | Active Area (W×H) | Bezel Area (W×H) | Outline Dimension (W×H) | Outline Depth |
| 211.2×158.4 mm | 216.2×163.4 mm | 243×185.1 mm | 10.5±0.5 mm | |
| Outline Features : | Form Style | Aspect Ratio | Orientation | Shape Style |
| Flat Rectangle | 4:3 (W : H) | Landscape type | - | |
| Fixation : | Face mounting holes (4 pcs) on left, right bezel | |||
| Other Features : | Panel Cover | Weight | Surface | |
| - | 530/550g (Typ./Max.) | Antiglare, Hard coating (2H) | ||
2. NEC NL6448BC33-49 Interface Features
| Signal Electrical : | Current Input | Voltage Input | Consumption | |||
|---|---|---|---|---|---|---|
| 300/200mA (Typ.) | 3.3/5.0V (Typ.) | - | ||||
| Voltage for Display Signals : | 0≤VIL≤0.3VCC; 0.7VCC≤VIH≤VCC | |||||
| Interface Features : | Position | Type | Interface | |||
| - | Connector | Parallel RGB (1 ch, 6-bit) | ||||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pins | Pin Assignment |
| HRS | DF9C-31P-1V | 1 pcs | 1.0 mm | 31 pins | DRGB-31P1C6B-010K | |
3. NEC NL6448BC33-49 Backlight Features
| Backlight Features: | Type | Position | Shape | Amount | Life(Hours) | Replacement |
|---|---|---|---|---|---|---|
| CCFL | Edge light type | Straight | 1 pcs | - | Replaceable (104LHS36) | |
| CCFL Electrical : | Current Input | Voltage Input | Consumption | |||
| 2.0/6.0/6.5mA (Min./Typ./Max.) | 520V (Typ.) | |||||
| Turn-on Voltage | Lamp Frequency | |||||
| 850/1100V (Min.)(Ta=+25/0℃) | 30/35/60KHz (Min./Typ./Max.) | |||||
| Interface Features : | Position | Type | CCFL Driver | |||
| - | Connector | No | ||||
| Interface Detail | Brand | Model | Amount | Pin Pitch | Pins | Pin Assignment |
| JST | BHR-03VS-1 | 1 pcs | 4.0 mm | 3 pins | BLL-3PINS-HNL | |
4. FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4:How can I get the quotation?
A:Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
