12.1 Inch TM121SDSG05 55% NTSC LED Driver Tianma TFT 80/80/65/75 (Typ.)(CR≥10)
1. Main Information:

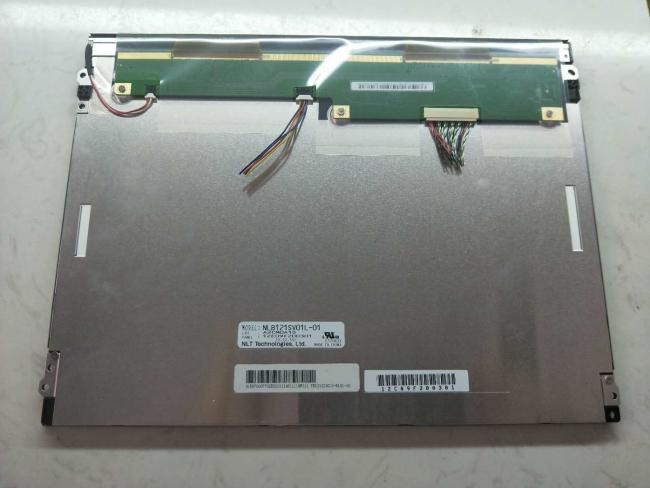

TM121SDSG05 is a 12.1" diagonal a-Si TFT-LCD display panel product from Tianma Microelectronics Co., Ltd.with an integral WLED backlight system, With LED Driver , without touch screen. It features an operating temperature range of -20 ~ 70°C , a storage temperature range of -30 ~ 80°C .
It's general features are following: WLED Backlight, With LED Driver, 180° Reverse, 6/8 bit . Based on its features,this model be applied to Industrial etc.
2. TIANMA TM121SDSG05 Mechanical Details:
| Pixel Features : | Resolution | 800(RGB)×600, SVGA | Dot Pitch(mm) | 0.1025×0.3075 (H×V) |
|---|---|---|---|---|
| Pixel Format | RGB Vertical Stripe | Pixel Pitch(mm) | 0.3075×0.3075 (H×V) [82PPI] | |
| Mechanical Size : | Active Area(mm) | 246(H) × 184.5(V) | Bezel Area(mm) | 250(H) × 188.3(V) |
| Outline Dim.(mm) | 279(H) × 209(V) | Depth(mm) | 5.73/9.0 (Typ./Max.) | |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | - |
| Aspect Ratio | 4:3 (H:V) | Orientation | Landscape type | |
| Mounting : | Face mounting holes (4 pcs) on left, right bezel | |||
| Other Spec : | Weight | 540g (Typ.) | Treatment | - |
3. TIANMA TM121SDSG05 Optical Details:
| Basic Information : | Luminance(cd/m²) | 350 (Typ.) | Contrast Ratio | 700:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 80/80/65/75 (Typ.)(CR≥10) | Display Mode | TN, Normally White, Transmissive | |
| Best View on | - | Response(ms) | 35 (Typ.)(Tr+Td) | |
| Color Performance : | White Coordinate | - | Display Colors | 262K/16.7M (6-bit / 8-bit) |
| Color Temperature | - | White Uniformity | 1.25/1.33 (Typ./Max.)(9 points) |
4. TIANMA TM121SDSG05 Backlight Details:
| Backlight Features: | Shape | - | Type | WLED | Position | Edge light type |
|---|---|---|---|---|---|---|
| Replacement | - | Quantity | - | Life Time | 30K(Min.) (Hours) | |
| Interface Features : | Position | - | Type | Connector | ||
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| STM | MSB24038P5 | 1 pcs | 5 pins | 1.25 mm | ||
| Backlight Driver : | With LED Driver | |||||
| Driver Electrical : | Voltage Supply | 12.0V (Typ.) | ||||
