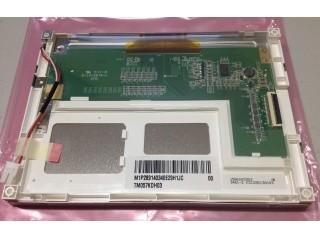

5.7 Inch 320*240 TM057KDH03 A-Si TFT LCD Screen 70/70/70/60 (Typ.)(CR≥10)
1. Main Information:
Tianma Microelectronics Co., Ltd.TM057KDH03 is a 5.7 inch diagonal a-Si TFT-LCD display panel product, with an integral WLED backlight system, without backlight driver, without touch screen.
It features an operating temperature range of -20 ~ 70°C , a storage temperature range of -30 ~ 85°C . It's general features are following: WLED Backlight, Life ≥ 50K hours, U/D,L/R Reverse, Matte , lamp wire length: 80mm. Based on its features,this model be applied to Industrial etc.
2. TIANMA TM057KDH03 Optical Details:
| Basic Information : | Luminance | 400 cd/m² (Typ.) | Contrast Ratio | 500 : 1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Good View at | 6 o'clock | Response Speed | 20 (Typ.)(Tr+Td) (ms) | |
| Viewing Angle | 70/70/70/60 (Typ.)(CR≥10) | Operating Mode | TN, Normally White, Transmissive | |
| Color Performance : | Chromaticity | Wx:0.324; Wy:0.362 | Support Color | 262K (6-bit) |
| Color Temperature | 5814K | White Uniformity | 1.25/1.33 (Typ./Max.)(9 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 54% | sRGB | 73% coverage |
| Adobe RGB | 56% coverage | DCI-P3 | 56% coverage | |
| Rec.2020 | 40% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
3. TIANMA TM057KDH03 Mechanical Details:
| Pixel Features | Number of Pixel | 320(RGB)×240 [QVGA] | Arrangement | RGB Vertical Stripe |
|---|---|---|---|---|
| Dot Pitch(W×H) | 0.120×0.360 mm | Pixel Pitch(W×H) | 0.360×0.360 mm [70PPI] | |
| Physical Size : | Active Viewing | 115.2(W)×86.4(H) mm | Overall Dim. | 144(W)×104.6(H) mm |
| Bezel Opening | 118.2(W)×89.4(H) mm | Overall Depth | 12.8 (Max.) mm | |
| Outline Features : | Form Shape | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio(W:H) | 4:3 | Shape Style | - | |
| Fixation : | Rear mounting poles (4-Φ2.6) | |||
| Other Detail : | Mass | 160g | Surface | Antiglare, Hard coating (3H |
4. TIANMA TM057KDH03 Interface Details:
| Signal Electrical : | Input Current | 145/225mA (Typ./Max.) | Input Voltage | 3.3V (Typ.) | ||
|---|---|---|---|---|---|---|
| Consumption | - | Signal Interface | Parallel RGB (1 ch, 6-bit) | |||
| Logic Voltage for Signals : | 0≤VIL≤0.3VCC; 0.7VCC≤VIH≤VCC | |||||
| Interface Features : | Position | - | Physical Type | Connector | ||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| STARCONN | 089H33-000100-G2-R | 1 pcs | 0.5 mm | 33 pins | DRGB-33P1C6B-020B | |
