41% NTSC TM058JFHG0 15.8 Inch 1280*768 TFT Projector Panel 45/45/20/50 (Typ.)(CR≥10)
1. Main Information:

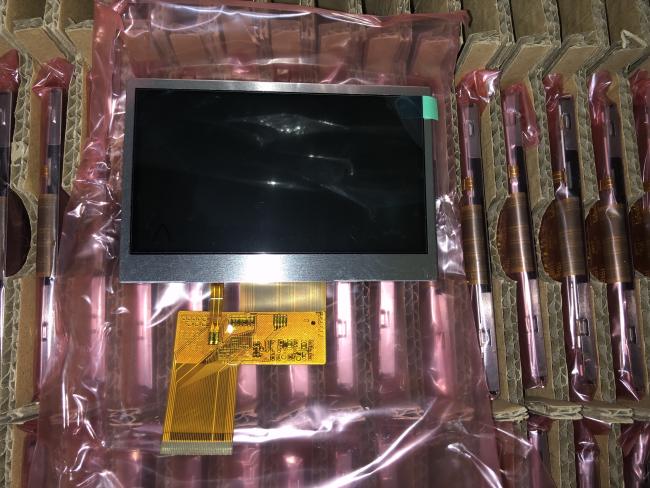

The TM058JFHG01 is a 5.8 inch diagonal a-Si TFT-LCD display panel product from Tianma Microelectronics Co., Ltd. without backlight, without touch screen. It features an operating temperature range of -20 ~ 70°C , a storage temperature range of -30 ~ 80°C . It's general features are following: U/D,L/R Reverse . Based on its features,this model be applied to Projector etc.
2. TIANMA TM058JFHG01 Mechanical Features:
| Panel Size | 5.8 Inch | |||
|---|---|---|---|---|
| Pixel Features : | Resolution | Pixel Arrangement | Dot Pitch (W×H) | Pixel Pitch (W×H) |
| 1280(RGB)×768, WXGA | RGB Vertical Stripe | 0.0330×0.2975 mm | 0.0990×0.2975 mm [257PPI] | |
| Mechanical Size : | Active Area (W×H) | Bezel Area (W×H) | Outline Dimension (W×H) | Outline Depth |
| 126.72×74.88 mm | - | 137.49×84.7 mm | 1.27 (Typ.) mm | |
| Outline Features : | Form Style | Aspect Ratio | Orientation | Plate Thickness |
| Flat Rectangle | 17:10 (W : H) | Landscape type | 0.50+0.50 mm | |
| Other Features : | Panel Cover | Weight | Surface | |
| - | TBD | Clear | ||
3. TIANMA TM058JFHG01 Optical Features:
| Basic Information : | Brightness | Operating Mode | Contrast Ratio |
|---|---|---|---|
| 0 cd/m² | TN, Normally White, Transmissive | 500:1 (Typ.) (Transmissive) | |
| Viewing Angle(L/R/U/D) | Viewing Direction | Response Speed | |
| 45/45/20/50 (Typ.)(CR≥10) | 12 o'clock | 20 (Typ.)(Tr+Td) (ms) | |
| Dispaly Color : | Color Temperature | Color Amount | White color Chromaticity |
| 9359K | 262K (6-bit) | X:0.283; Y:0.296 | |
| 1931 Color Gamlt : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 41% | 58% | 43% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 43% | 31% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
4. TIANMA TM058JFHG01 Interface Features:
| Signal Electrical : | Current Input | Voltage Input | Consumption | |||
|---|---|---|---|---|---|---|
| - | 3.3/10.9/20/-7.0V (Typ.)(VDD/AVDD/VGH/VGL) | - | ||||
| Interface Features : | Position | Type | Interface | |||
| - | FPC | Mini LVDS | ||||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pins | Pin Assignment |
| 1 pcs | 0.5 mm | 60 pins | ||||
