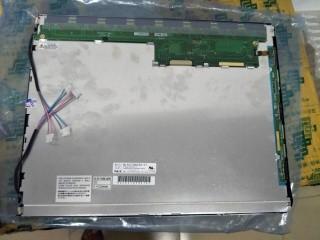

15 Inch TFT Display NL10276BC30-17 UA-SFT 4 PCS CCFL Used For Industrial
1.HIGHEST QUALITY STANDARD DISPLAYS
As a distributor,Sapientia display provides technical support for the development of every type and class of LCD, from the design stage right through to the production phase, while guaranteeing the highest quality standards.
Our products can be customized for various applications and market sectors, including (but not limited to): automotive, medical, building automation, white goods, digital signage, security, transportation and industrial.
2.NEC NL10276BC30-17 Optical Details:
| Basic Information : | Luminance | 350 cd/m² (Typ.) | Contrast Ratio | 700 : 1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Good View at | Symmetry | Response Speed | 14/11 (Typ.)(Tr/Td) (ms) | |
| Viewing Angle | 88/88/88/88 (Typ.)(CR≥10) | Operating Mode | UA-SFT, Normally Black, Transmissive | |
| Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Support Color | 16.7M (6-bit + Hi-FRC) |
| Color Temperature | 6485K | White Uniformity | 1.10/1.30 (Typ./Max.)(5 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 75% | sRGB | 96% coverage |
| Adobe RGB | 78% coverage | DCI-P3 | 78% coverage | |
| Rec.2020 | 56% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
3.NEC NL10276BC30-17 Mechanical Details:
| Pixel Features : | Number of Pixel | 1024(RGB)×768 [XGA] | Arrangement | RGB Vertical Stripe |
|---|---|---|---|---|
| Dot Pitch(W×H) | 0.099×0.297 mm | Pixel Pitch(W×H) | 0.297×0.297 mm [85PPI] | |
| Physical Size : | Active Viewing | 304.128(W)×228.096(H) mm | Overall Dim. | 326.5(W)×253.5(H) mm |
| Bezel Opening | 307.4(W)×231.3(H) mm | Overall Depth | 17.0 (Max.) mm | |
| Outline Features : | Form Shape | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio(W:H) | 4:3 | Shape Style | - | |
| Fixation : | Side mounting holes (6-M3) on left, right bezel | |||
| Other Detail : | Mass | 1.30/1.43Kgs (Typ./Max.) | Surface | Antiglare, Hard coating (3H) |
4.NEC NL10276BC30-17 Lightting Details:
| Lamp Features: | Lamp Shape | Straight | Lamp Type | CCFL | Position | Edge light type (Top and Bottom) |
|---|---|---|---|---|---|---|
| Exchange | Replaceable (150LHS25) | Amount | 4 pcs | Life | - | |
| Lamp Electrical : | Input Current | 3.0/6.0/6.5mA (Min./Typ./Max.) | Input Voltage | 580V (Typ.) | ||
| Frequency | 38/43/48KHz (Min./Typ./Max.) | Turn-on Voltage | 1550/1690V (Ta=+25/0℃) | |||
| Interface Features : | Position | - | Physical Type | Connector | ||
| Interface Detail : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| JST | BHR-03VS-1 | 4 pcs | 4.0 mm | 3 pins | BLL-3PINS-HNL | |
| Backlight Driver : | No | |||||
- 5. FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
