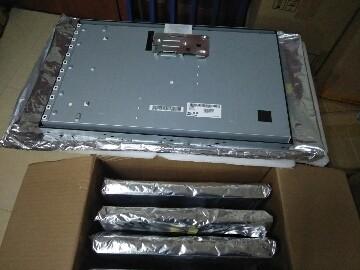

AA121XK01 Mitsubishi 12.1INCH 1024×768 500CD/M2 WLED LVDS INDUSTRIAL LCD DISPLAY
Price:
USD95
MOQ:
1PCS
Delivery Time:
1-2 DAYS
Brand:
Mitsubishi
Product Description
Mitsubishi AA121XK01 Application Features
| Basic Information : | Brand Name | Model Name 0 Compatible | Type | Model Alias |
|---|---|---|---|---|
| AA121XK01 | a-Si TFT-LCD , LCM | - | ||
| Maximum Ratings : | RoHS | Operating Temperature | Storage Temperature | Vibration Level |
| -30 ~ 80 °C | -30 ~ 80 °C | - |
Mitsubishi AA121XK01 Mechanical Features
| Screen Size : | 12.1" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Number | Pixel Format | Dot Pitch (H×V) | Pixel Pitch (H×V) |
| 1024(RGB)×768, XGA | RGB Vertical Stripe | 0.080×0.240 mm | 0.240×0.240 mm [105PPI] | |
| Mechanical Size : | Display Area (H×V) | Bezel Opening (H×V) | Overall Dimension (H×V) | Overall Depth |
| 245.76×184.32 mm | 249.0×187.5 mm | 280×210 mm | 12.0 (Typ.) mm | |
| Outline Features : | Form Shape | Aspect Ratio (H:V) | Orientation | Shape Style |
| Flat Rectangle | 4:3 | Landscape type | ||
| Other Spec : | Mass | Panel Cover | Surface Treatment | |
| 750g (Typ.) | - | Antiglare, Hard coating (3H) | ||
Mitsubishi AA121XK01 Optical Features
| Basic Information : | Luminance | Work Mode | Contrast Ratio |
|---|---|---|---|
| 500 cd/m² (Typ.) | TN, Normally White, Transmissive | 600:1 (Typ.) (Transmissive) | |
| Good View at | Viewing Angle | Response Time | |
| 6 o'clock | 80/80/60/80 (Typ.)(CR≥10) | 6/19 (Typ.)(Tr/Td) (ms) | |
| Dispaly Color : | Color Temperature: | Support Color | Color Coordinate |
| 6485K | 262K/16.7M (6-bit / 8-bit) | X:0.313; Y:0.329 | |
| 1931 Color Gamlt : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 39% | 55% | 41% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 41% | 29% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
Mitsubishi AA121XK01 Electronics Features
| Refresh Rate : | 60Hz |
|---|---|
| Reverse Scan : | Yes (180°) |
| Power Consumption : | 6.9W (Typ.) |
Mitsubishi AA121XK01 Backlight Features
| Back-light Features: | Type | Position | Life(Hours) | Amount | Shape | Replacement |
|---|---|---|---|---|---|---|
| WLED | Edge light type (Top side) | 100K(Typ.) | 2 strings | 2 strings | Replaceable | |
| WLED Electrical : | Input Voltage | Input Current | Power Consumption | |||
| 24.0/31.1V (Typ./Max.) | 120/130mA (Typ./Max.) | |||||
| Interface Features : | WLED Driver State | Physical Type | Interface Position | |||
| No | Connector | - | ||||
| Interface Detail | Brand Name | Model Name | Amount | Pins | Pin Pitch | Pin Configuration |
| JST | SM06B-SHLS-TF(LF)(SN) | 1 pcs | 6 pins | 1.0 mm | BLE-6PINS-NNCAAC | |
Mitsubishi AA121XK01 Interface Features
| Signal Electrical : | Input Voltage | Input Current | Power Consumption | |||
|---|---|---|---|---|---|---|
| 3.3V (Typ.) | 320/600mA (Typ./Max.) | - | ||||
| Interface Features : | Signal Type | Physical Type | Interface Position | |||
| LVDS (1 ch, 6/8-bit) | Connector | - | ||||
| Interface Detail : | Brand Name | Model Name | Amount | Pins | Pin Pitch | Pin Configuration |
| JAE | FI-SE20P-HFE | 1 pcs | 20 pins | 1.25 mm | LVDS-20P1C8B-010H | |
