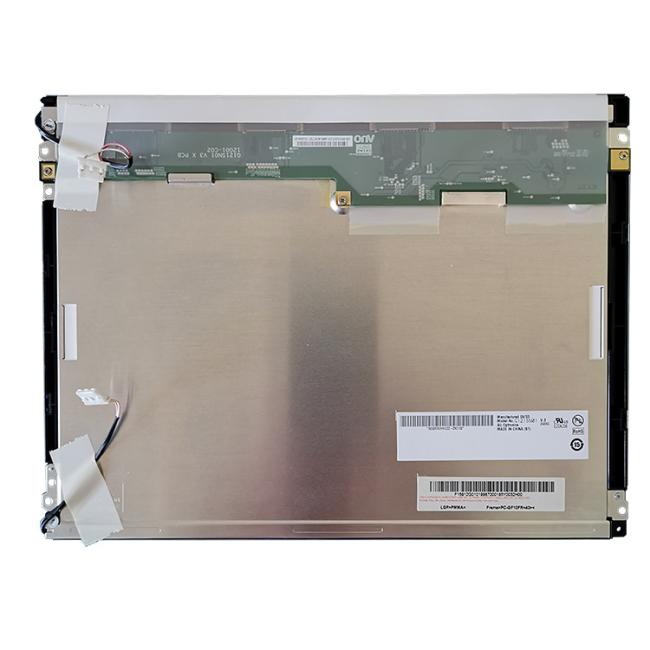

G121SN01 V3 AUO 12.1 INCH Lamp Repaceable，Life ≥ 50K hours，180° Reverse，6/8 bit，Matte
MOQ:
1PCS
Delivery Time:
1-2DAYS
Brand:
AUO
Product Description
AUO G121SN01 V3 Application Features
| Basic Information : | Manufacturer | Panel Model | Panel Type | Alias |
|---|---|---|---|---|
| G121SN01 V3 | a-Si TFT-LCD , LCM | G121SN01 V.3 | ||
| Environment : | RoHS State | Operating Temp. | Storage Temp. | Vibration Level |
| -30 ~ 85 °C | -30 ~ 85 °C | - | ||
| Used For : | ||||
| Specific Features : |
|
|||
AUO G121SN01 V3 Mechanical Details
| Pixel Features : | Resolution | 800(RGB)×600, SVGA | Dot Pitch(mm) | 0.1025×0.3075 (H×V) |
|---|---|---|---|---|
| Pixel Format | RGB Vertical Stripe | Pixel Pitch(mm) | 0.3075×0.3075 (H×V) [82PPI] | |
| Mechanical Size : | Active Area(mm) | 246(H) × 184.5(V) | Bezel Area(mm) | 249.05(H) × 188.3(V) |
| Outline Dim.(mm) | 279(H) × 209(V) | Depth(mm) | 11.0 (Max.) | |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | |
| Aspect Ratio | 4:3 (H:V) | Orientation | Landscape type | |
| Mounting : | Face mounting holes (6-Φ3.4, 1-R1.7) on left and right bezel | |||
| Other Spec : | Weight | 660g (Typ.) | Treatment | Antiglare, Hard coating (3H) |
AUO G121SN01 V3 Optical Details
| Basic Information : | Luminance(cd/m²) | 400 (Typ.) | Contrast Ratio | 600:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 80/80/50/60 (Typ.)(CR≥10) | Display Mode | TN, Normally White, Transmissive | |
| Best View on | 6 o'clock | Response(ms) | 10/25 (Typ.)(Tr/Td) | |
| Color Performance : | White Coordinate | X:0.313; Y:0.329 | Display Colors | 262K/16.2M (6-bit / 6-bit + FRC) |
| Color Temperature | 6485K | White Uniformity | - | |
| 1931 Color Gamlt : | NTSC Ratio | 54% | sRGB | 74% coverage |
| Adobe RGB | 57% coverage | DCI-P3 | 56% coverage | |
| Rec.2020 | 40% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
AUO G121SN01 V3 Backlight Details
| Backlight Features: | Shape | Straight | Type | CCFL | Position | Edge light type (Top and Bottom) |
|---|---|---|---|---|---|---|
| Replacement | Replaceable | Quantity | 2 pcs | Life Time | 50K(Min.) (Hours) | |
| Lamp Electrical : | Voltage Supply | 510V (Typ.) | Current Supply | 3.0/6.0/6.5mA (Min./Typ./Max.) | ||
| Frequency | 40/55/60KHz (Min./Typ./Max.) | Startup Voltage | 930/1120V (Max.)(Ta=+25/0℃) | |||
| Consumption | 3.8/6.7/7.7W (Min./Typ./Max.) | |||||
| Interface Features : | Position | - | Type | Connector | ||
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| JST | BHR-03VS-1 | 2 pcs | 3 pins | 4.0 mm | BLL-3PINS-HNL | |
| Backlight Driver : | No | |||||
AUO G121SN01 V3 Interface Features
| Panel Driving Electrical : | Voltage Supply | Current Supply | Power | |||
|---|---|---|---|---|---|---|
| 3.3V (Typ.) | 200mA (Typ.) | 0.66W (Typ.) | ||||
| Interface Features : | Position | Signal | Type | |||
| - | LVDS (1 ch, 6/8-bit) | Connector | ||||
| Connector Detail : | Brand | Model | Pin Pitch | Pin Amount | Quantity | Configuration |
| STM | MSB240420E | 1.25 mm | 20 pins | 1 pcs | LVDS-20P1C8B-080B | |
