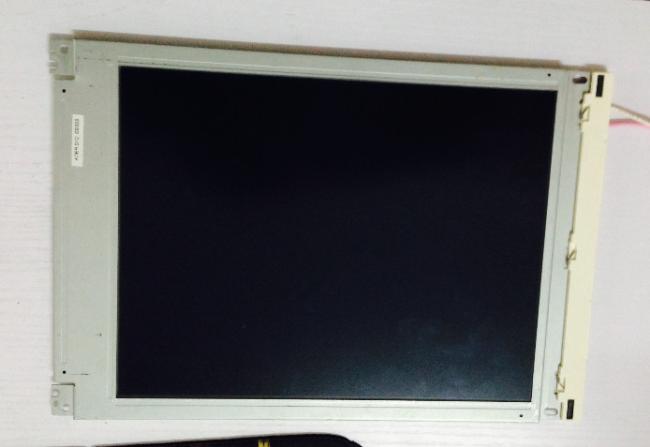

G085VW01 V1 AUO 8.5INCH 800×480RGB 200CD/M2 CCFL TTL Operating Temp.: -30 ~ 85 °C INDUSTRIAL LCD DISPLAY
MOQ:
1PCS
Delivery Time:
1-2 DAYS
Brand:
AUO
Product Description
AUO G085VW01 V1 Application Details
| Basic Information : | Brand | Model | G085VW01 V1 | |
|---|---|---|---|---|
| Type | LCM a-Si TFT-LCD | Used For | ||
| Screen Size | 8.5" | Alias | G085VW01 V.1 | |
| Environment : | Storage Temp. | -35 ~~ 85 °C | Operating Temp. | -30 ~~ 85 °C |
| RoHS | Vibration | 1.5G (14.7 m/s²) |
AUO G085VW01 V1 Mechanical Details
| Pixel Features : | Resolution | 800(RGB)×480, WVGA | Dot Pitch(mm) | 0.077×0.231 (H×V) |
|---|---|---|---|---|
| Pixel Format | RGB Vertical Stripe | Pixel Pitch(mm) | 0.231×0.231 (H×V) [109PPI] | |
| Mechanical Size : | Active Area(mm) | 184.8(H) × 110.88(V) | Bezel Area(mm) | 189.8(H) × 116.0(V) |
| Outline Dim.(mm) | 222.7(H) × 135.4(V) | Depth(mm) | 12.5 (Max.) | |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | |
| Aspect Ratio | 15:9 (H:V) | Orientation | Landscape type | |
| Mounting : | Face mounting holes (4 pcs) on left, right bezel | |||
| Other Spec : | Weight | 300g (Typ.) | Treatment | Antiglare, Hard coating (3H) |
AUO G085VW01 V1 Optical Details
| Basic Information : | Luminance(cd/m²) | 200 (Typ.) | Contrast Ratio | 500:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 80/80/80/60 (Typ.)(CR≥10) | Display Mode | TN, Normally White, Transmissive | |
| Best View on | - | Response(ms) | 20/10 (Typ.)(Tr/Td) | |
| Color Performance : | White Coordinate | X:0.300; Y:0.320 | Display Colors | 262K (6-bit) |
| Color Temperature | 7351K | White Uniformity | 1.33/1.43 (Typ./Max.)(9 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 52% | sRGB | 71% coverage |
| Adobe RGB | 54% coverage | DCI-P3 | 54% coverage | |
| Rec.2020 | 39% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
AUO G085VW01 V1 Electronics Details
| Frame Rate : | 60Hz |
|---|---|
| Reverse Scan : | Yes (180°) |
| Power Consumption : | 3.2W |
AUO G085VW01 V1 Interface Details
| Signal Electrical : | Voltage Supply | 3.3V (Typ.) | Current Supply | 135/150/200mA (Min./Typ./Max.) | ||
|---|---|---|---|---|---|---|
| Consumption | 0.5W (Typ.) | |||||
| Signal Type : | TTL (1 ch, 6-bit) | Signal Voltage | - | |||
| Interface Features : | Position | - | Type | Connector | ||
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| HRS | FH12-40S-0.5SH(89) | 1 pcs | 40 pins | 0.5 mm | DRGB-40P1C6B-070A | |
AUO G085VW01 V1 Backlight Details
| Backlight Features: | Shape | Straight | Type | CCFL | Position | Edge light type (Top side) |
|---|---|---|---|---|---|---|
| Replacement | - | Quantity | 1 pcs | Life Time | 50K(Typ.) (Hours) | |
| Lamp Electrical : | Voltage Supply | 440V (Typ.) | Current Supply | 4.0/5.0/6.5mA (Min./Typ./Max.) | ||
| Frequency | 45KHz (Min.) | Startup Voltage | 700/900V (Max.)(Ta=+25/0℃) | |||
| Consumption | 2.7W (Typ.) | |||||
| Interface Features : | Position | - | Type | Connector | ||
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| JST | BHSR-02VS-1(N) | 1 pcs | 2 pins | 3.5 mm | BLL-2PINS-HL | |
| Backlight Driver : | No | |||||
