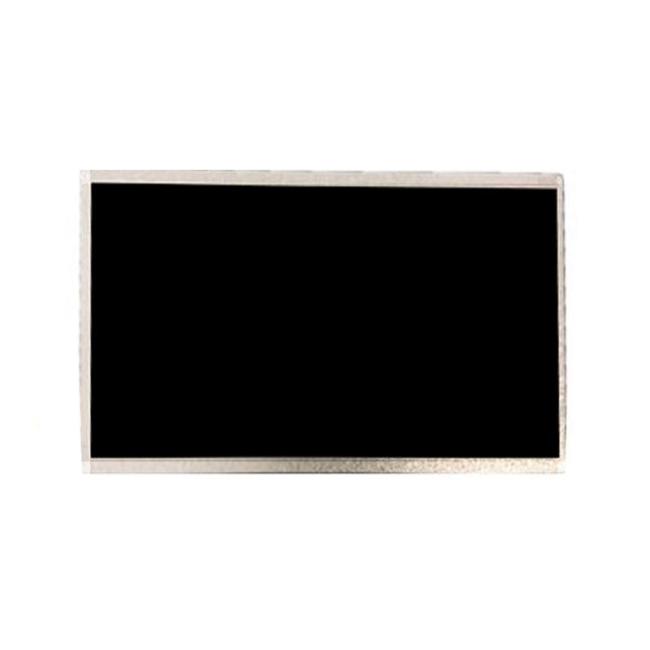

G101QAN01.1 AUO 10.1INCH 1600×2560RGB 400CD/M2 WLED MIPI Storage Temp.: -20 ~ 60 °C INDUSTRIAL LCD DISPLAY
MOQ:
1PCS
Delivery Time:
1-2 DAYS
Brand:
AUO
Product Description
AUO G101QAN01.1 Application Details
| Basic Info : | Panel Brand | Panel Model | G101QAN01.1 | |
|---|---|---|---|---|
| Diagonal Size | 10.1" | Application | ||
| Panel Type | a-Si TFT-LCD , LCM | Model Alias | - | |
| Reliability : | Operating Temp. | 0 ~ 50 °C | Storage Temp. | -20 ~ 60 °C |
| RoHS State | Vibration Rating | 1.5G (14.7 m/s²) | ||
| Specific Features : | ||||
AUO G101QAN01.1 Mechanical Details
| Pixel Features : | Pixel Format | 1600(RGB)×2560 [WQXGA] | Dot Pitch | 0.0282×0.0846 mm (H×V) |
|---|---|---|---|---|
| Configuration | RGB Vertical Stripe | Pixel Pitch | 0.0846×0.0846 mm (H×V) [300PPI] | |
| Mechanical Size : | Display Area | 135.36×216.576 mm (H×V) | Bezel Area | - |
| Outline Dim. | 142.96×228.04 mm (H×V) | Outline Depth | 2.18/4.05 (Typ./Max.) mm | |
| Outline Features : | Form Factor | Flat Rectangle | Orientation | Portrait type |
| Aspect Ratio | 10:16 (H:V) | Shape Style | ||
| Holes & Brackets : | Without | |||
| Other Features : | Weight | 120g (Typ.) | Surface | Glare (Haze 0%) |
AUO G101QAN01.1 Optical Details
| Basic Information : | Brightness | 400 cd/m² (Typ.) | Contrast Ratio | 1000:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) | Optical Mode | AHVA, Normally Black, Transmissive | |
| Viewing Direction | Symmetry | Response Time | 25 (Typ.)(Tr+Td) (ms) | |
| Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Color Numbers | 16.7M (8-bit) |
| Color Temperature | 6485K | White Uniformity | 1.43 (Max.)(9 points) | |
| 1931 Color Gamut : | NTSC Ratio | 69% | sRGB | 95% coverage |
| Adobe RGB | 72% coverage | DCI-P3 | 72% coverage | |
| Rec.2020 | 52% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
AUO G101QAN01.1 Interface Details
| Signal Systerm : | MIPI (2 ch, 4 data lanes) | Logic Voltage | - | |||
|---|---|---|---|---|---|---|
| Signal Electrical : | Voltage Input | 1.8/5.6/-5.6V (Typ.)(IOVCC/VSP/VSN) | Current Input | 45/30/30mA (Typ.)(IOICC/ISP/ISN) | ||
| Consumption | 0.5W (Max.) | |||||
| Interface Features : | Type | Connector | Position | - | ||
| Connector Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| HRS | FH26W-61S-0.3SHW(60) | 0.3 mm | 61 pins | 1 pcs | ||
FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
