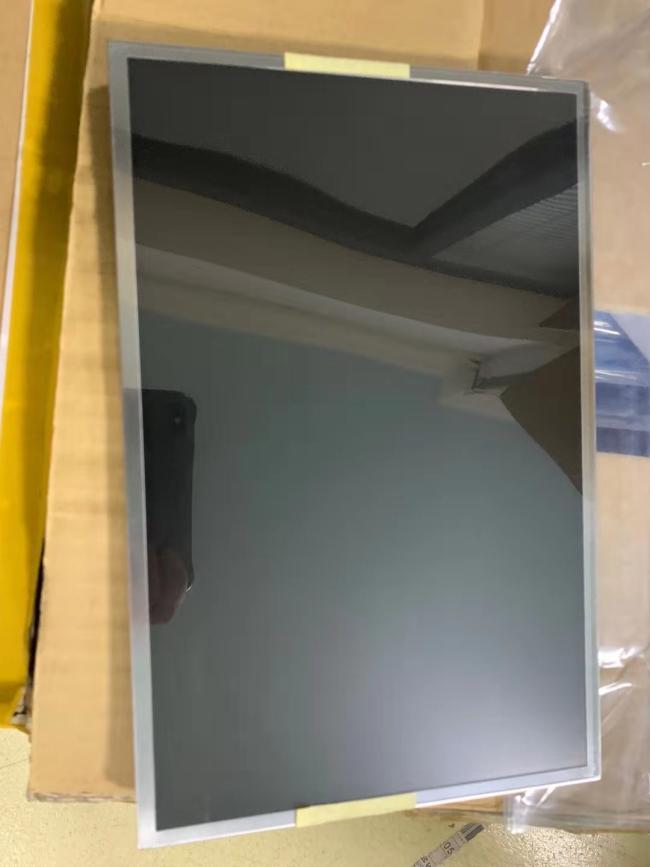

NL12880BC20-07F NLT 12.1INCH 1800CD/M2 LCM 1280×800 1280×800RGB WLED LVDS Operating Temperature: -20 ~ 70 °C INDUSTRIAL
Price:
Negotiable
MOQ:
1PCS
Delivery Time:
2-3 DAYS
Brand:
NEC
Product Description
NLT NL12880BC20-07F Application Details
| Basic Info : | Panel Brand | Panel Model | NL12880BC20-07F | |
|---|---|---|---|---|
| Diagonal Size | 12.1" | Application |
|
|
| Panel Type | a-Si TFT-LCD , LCM | Model Alias | - | |
| Reliability : | Operating Temp. | -20 ~ 70 °C | Storage Temp. | -30 ~ 80 °C |
| RoHS State | Vibration Rating | 2.0G (19.6 m/s²) |
NLT NL12880BC20-07F Mechanical Details
| Pixel Features : | Pixel Format | 1280(RGB)×800 [WXGA] | Dot Pitch | 0.068×0.204 mm (H×V) |
|---|---|---|---|---|
| Configuration | RGB Vertical Stripe | Pixel Pitch | 0.204×0.204 mm (H×V) [124PPI] | |
| Mechanical Size : | Display Area | 261.12×163.2 mm (H×V) | Bezel Area | 266.1×168.2 mm (H×V) |
| Outline Dim. | 277.7×180.6 mm (H×V) | Outline Depth | 8.7±0.5 mm | |
| Outline Features : | Form Factor | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio | 16:10 (H:V) | Shape Style | ||
| Holes & Brackets : | Side mounting holes (4-M2) on left, right bezel | |||
| Other Features : | Weight | 470/500g (Typ./Max.) | Surface | Antiglare, Hard coating (3H) |
NLT NL12880BC20-07F Optical Details
| Basic Information : | Brightness | 1800 cd/m² (Typ.) | Contrast Ratio | 800:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥10) | Optical Mode | TN, Normally White, Transmissive | |
| Viewing Direction | - | Response Time | 3/15 (Typ.)(Tr/Td) (ms) | |
| Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Color Numbers | 262K/16.7M (6-bit / 6-bit + Hi-FRC) |
| Color Temperature | 6485K | White Uniformity | 1.25 (Typ.)(5 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 40% | sRGB | 57% coverage |
| Adobe RGB | 42% coverage | DCI-P3 | 42% coverage | |
| Rec.2020 | 30% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| Dispaly Performance : | Outdoor Visibility | Sunlight Readable | Transmittance | - |
NLT NL12880BC20-07F Backlight Details
| Back-light Features: | Lamp Shape | 5 strings | Lamp Type | WLED | Life Time | 60K(Typ.) (Hours) |
|---|---|---|---|---|---|---|
| Replacement | Replaceable | Amount | 5 strings | Position | Edge light type | |
| Lamp Electrical : | Voltage Input | 24.7/27.9/30.6V (Min./Typ./Max.) | Current Input | 110/120mA (Typ./Max.) | ||
| Interface Features : | Type | Connector | Position | - | Lamp Driver | No |
| Interface Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| JST | SM10B-SHLS-TF(LF)(SN) | 1.0 mm | 10 pins | 1 pcs | BLE-10PINS-AAANNCCCCC | |
NLT NL12880BC20-07F Interface Details
| Signal Systerm : | LVDS (1 ch, 6/8-bit) | Logic Voltage | - | |||
|---|---|---|---|---|---|---|
| Signal Electrical : | Voltage Input | 3.3V (Typ.) | Current Input | 400/820mA (Typ./Max.) | ||
| Interface Features : | Type | Connector | Position | - | ||
| Connector Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| JAE | FI-SE20P-HFE | 1.25 mm | 20 pins | 1 pcs | LVDS-20P1C8B-170A | |
FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
