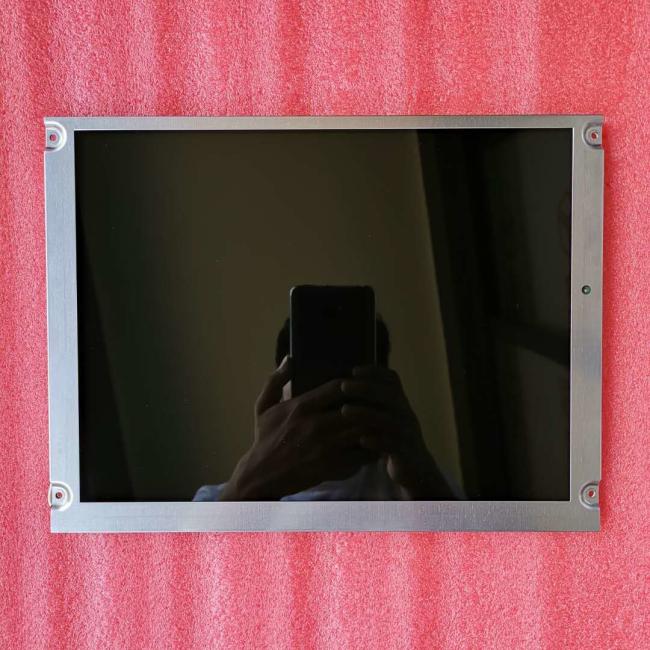

NL8060BC31-17 NLT 12.1INCH 350CD/M2 LCM 800×600 800×600RGB CCFL TTL Storage Temp.: -20 ~ 60 °C INDUSTRIAL LCD DISPLAY
Price:
Negotiable
MOQ:
1PCS
Delivery Time:
1-2day
Brand:
NEC
Product Description
NEC NL8060BC31-17 Application Features
| Basic Information : | Brand Name | Model Name | Type | Model Alias |
|---|---|---|---|---|
| NL8060BC31-17 | a-Si TFT-LCD , LCM | - | ||
| Maximum Ratings : | RoHS | Operating Temperature | Storage Temperature | Vibration Level |
| 0 ~ 50 °C | -20 ~ 60 °C | 2.0G (19.6 m/s²) |
NEC NL8060BC31-17 Mechanical Features
| Screen Size : | 12.1" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Number | Pixel Format | Dot Pitch (H×V) | Pixel Pitch (H×V) |
| 800(RGB)×600, SVGA | RGB Vertical Stripe | 0.1025×0.3075 mm | 0.3075×0.3075 mm [82PPI] | |
| Mechanical Size : | Display Area (H×V) | Bezel Opening (H×V) | Overall Dimension (H×V) | Overall Depth |
| 246×184.5 mm | 249.0×187.5 mm | 280×210 mm | 13.0/13.7 (Typ./Max.) mm | |
| Outline Features : | Form Shape | Aspect Ratio (H:V) | Orientation | Shape Style |
| Flat Rectangle | 4:3 | Landscape type | ||
| Other Spec : | Mass | Panel Cover | Surface Treatment | |
| 750/780g (Typ./Max.) | - | - | ||
| Holes & Brackets : | Face mounting holes (4-Φ3.5) on left, right bezel | |||
NEC NL8060BC31-17 Optical Features
| Basic Information : | Luminance | Work Mode | Contrast Ratio |
|---|---|---|---|
| 350 cd/m² (Typ.) | TN, Normally White, Transmissive | 350:1 (Typ.) (Transmissive) | |
| Good View at | Viewing Angle | Response Time | |
| 6 o'clock | 55/55/40/50 (Typ.)(CR≥10) | 15/55 (Typ.)(Tr/Td) (ms) | |
| Dispaly Color : | Color Temperature: | Support Color | Color Coordinate |
| - | 262K (6-bit) | - | |
| White Uniformity : | 1.40 (Max.)(5 points) | ||
NEC NL8060BC31-17 Backlight Features
| Back-light Features: | Type | Position | Life(Hours) | Amount | Shape | Replacement |
|---|---|---|---|---|---|---|
| CCFL | Edge light type (Top side) | - | 2 pcs | Straight | Replaceable (121LHS15) | |
| CCFL Electrical : | Input Voltage | Input Current | Power Consumption | |||
| 600V (Typ.) | 2.0/5.0/5.5mA (Min./Typ./Max.) | |||||
| Operating Frequency | Startup Voltage | |||||
| 58/65/69KHz (Min./Typ./Max.) | 960/1200V (Min.)(Ta=+25/0℃) | |||||
| Interface Features : | CCFL Driver State | Physical Type | Interface Position | |||
| No | Connector | - | ||||
| Interface Detail | Brand Name | Model Name | Amount | Pins | Pin Pitch | Pin Configuration |
| JST | BHR-03VS-1 | 1 pcs | 3 pins | 4.0 mm | BLL-3PINS-LHH | |
NEC NL8060BC31-17 Interface Features
| Signal Electrical : | Input Voltage | Input Current | Power Consumption | |||
|---|---|---|---|---|---|---|
| 3.3/5.0V (Typ.)(VCC) | 320/240mA (Typ.)(ICC) | - | ||||
| Interface Features : | Signal Type | Physical Type | Interface Position | |||
| CMOS (1 ch, 6-bit) | Connector | - | ||||
| Interface Detail : | Brand Name | Model Name | Amount | Pins | Pin Pitch | Pin Configuration |
| HRS | DF9-41P-1V | 1 pcs | 41 pins | 1.0 mm | DRGB-41P1C6B-010G | |
