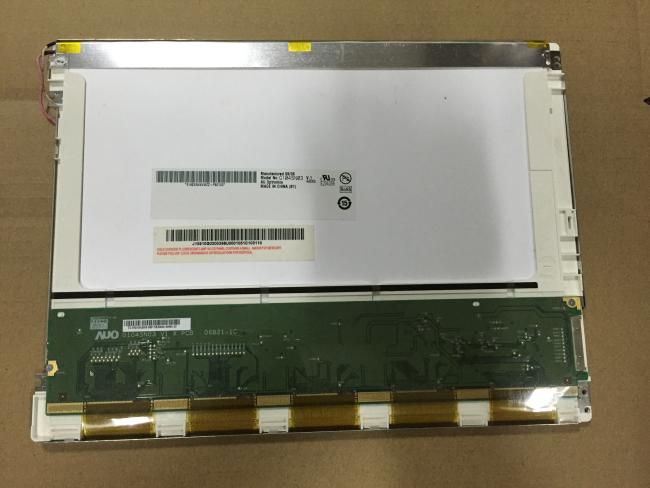

China G104SN03 V2 AUO 10.4INCH 800×600RGB 180CD/M2 CCFL LVDS Storage Temp.: -20 ~ 60 °C INDUSTRIAL LCD DISPLAY for sale

G104SN03 V2 AUO 10.4INCH 800×600RGB 180CD/M2 CCFL LVDS Storage Temp.: -20 ~ 60 °C INDUSTRIAL LCD DISPLAY

Name: G104SN03 V2 AUOt10.4INCH 800u00d7600RGB 180CD/M2 CCFL LVDS Storage Temp.: -20 ~ 60 u00b0C INDUSTRIAL LCD DISPLAY
Brand: Sapientia Display Co.,LIMITED

Price Negotiable

MOQ: 1PCS

Delivery Time: 1-2 DAYS

Brand: AUO

Product Description

AUO G104SN03 V2 Application Details

Basic Info :	Panel Brand Panel Model G104SN03 V2 Diagonal Size 10.4" Application Panel Type a-Si TFT-LCD , LCM Model Alias G104SN03 V.2
Reliability :	Operating Temp. 0 ~ 50 °C Storage Temp. -20 ~ 60 °C RoHS State Vibration Rating 1.5G (14.7 m/s²)

AUO G104SN03 V2 Mechanical Details

Pixel Features :	Pixel Format 800(RGB)×600, SVGA Dot Pitch 0.088×0.264 mm (H×V) Configuration RGB Vertical Stripe Pixel Pitch 0.264×0.264 mm (H×V) [96PPI]
Mechanical Size :	Display Area 211.2×158.4 mm (H×V) Bezel Area 215.0×162.0 mm (H×V) Outline Dim. 236×174.3 mm (H×V) Outline Depth 7.7 (Max.) mm
Outline Features :	Form Factor Flat Rectangle Orientation Landscape type Aspect Ratio 4:3 (H:V) Shape Style
Touch Screen :	Touch Points 1 point TP Signal - TP Controller Without touch controller Touchscreen 4-wire Resistive Touch
Holes & Brackets :	Face mounting holes (4-Φ2.5, 2-R1.25) on left, right bezel
Other Features :	Weight 400±10g Surface Antiglare, Hard coating (3H)

AUO G104SN03 V2 Optical Details

Basic Information :	Brightness 180 cd/m² (Typ.) Contrast Ratio 500:1 (Typ.) (Transmissive) Viewing Angle 60/60/35/65 (Typ.)(CR≥10) Optical Mode TN, Normally White, Transmissive Viewing Direction - Response Time 10/25 (Typ.)(Tr/Td) ms
Color Performance :	Chromaticity Wx:0.320; Wy:0.330 Color Numbers 262K (6-bit) Color Temperature 6116K Uniformity 1.33 (Max.)(13 points)
1931 Color Gamlt :	NTSC Ratio 47% sRGB 64% coverage Adobe RGB 49% coverage DCI-P3 48% coverage Rec.2020 35% coverage Remarks sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

AUO G104SN03 V2 Backlight Details

Back-light Features :	Lamp Type CCFL Amount 1 pcs Life Time 20K(Typ.) (Hours) Replacement - Lamp Shape Straight Position Edge light type (Top side)
Lamp Electrical :	Voltage Input 560±50V Current Input 3.0/4.5/5.5mA (Min./Typ./Max.) Frequency 60KHz (Typ.) Kick-off Voltage 800/1050V (Max.)(Ta=+25/0℃) Consumption 2.52W (Typ.)
Interface Features :	Type Connector Position - Lamp Driver No
Interface Detail :	Brand Model Pin Pitch Pins Amount Configuration JST BHSR-02VS-1 3.5 mm 2 pins 1 pcs BLL-2PINS-HL

AUO G104SN03 V2 Interface Detail

Signal Systerm :	LVDS (1 ch, 6-bit) Logic Voltage -
Signal Electrical :	Voltage Input 3.3V (Typ.) Current Input 260/310mA (Typ./Max.) Consumption 0.76W (Typ.)
Interface Features :	Type Connector Position -
Connector Detail :	Brand Model Pin Pitch Pins Amount Configuration HRS DF19K-20P-1H 1.0 mm 20 pins 1 pcs LVDS-20P1C6B-070A
