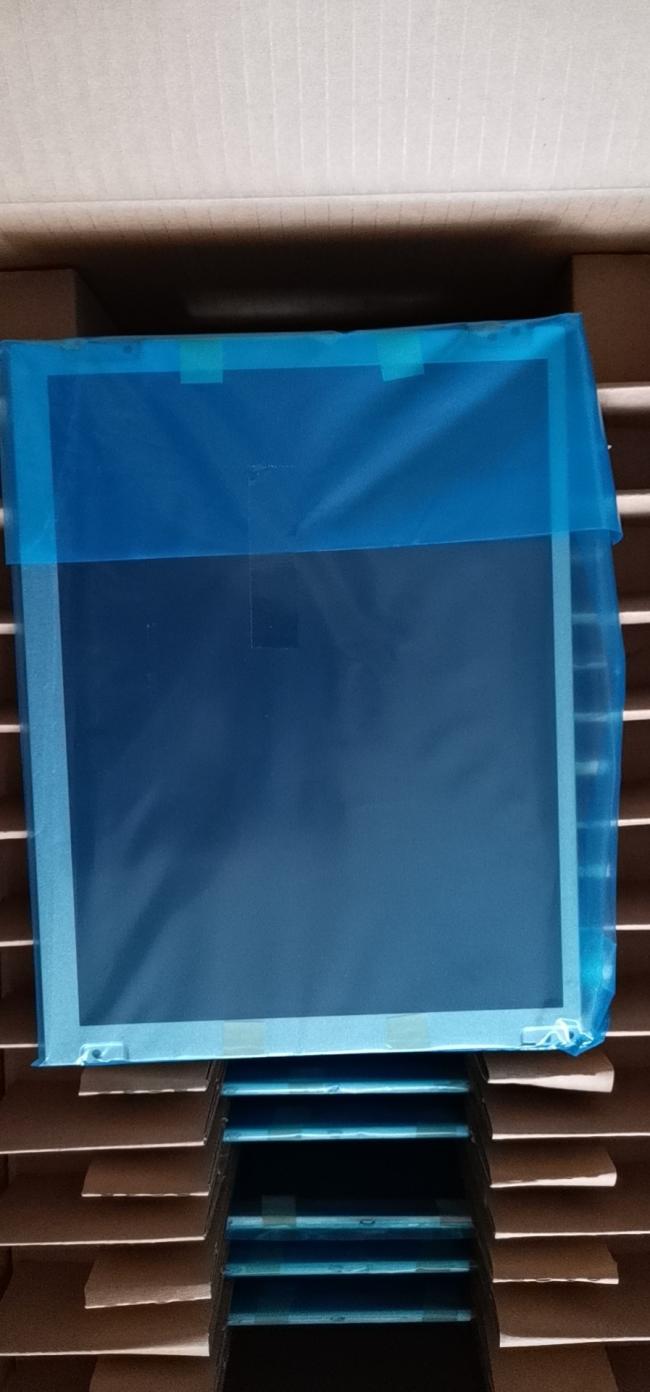

G121SN01 V403 AUO 12.1INCH 800×600RGB 500CD/M2 WLED LVDS Storage Temp.: -30 ~ 85 °C INDUSTRIAL LCD DISPLAY
MOQ:
1PCS
Delivery Time:
1-2 DAYS
Brand:
AUO
Product Description
AUO G121SN01 V403 Application Details
| Basic Information : | Brand | Model | G121SN01 V403 | |
|---|---|---|---|---|
| Type | LCM a-Si TFT-LCD | Used For | ||
| Screen Size | 12.1" | Alias | 97.12G01.403 | |
| Environment : | Storage Temp. | -30 ~~ 85 °C | Operating Temp. | -30 ~~ 85 °C |
| RoHS | Vibration | 1.5G (14.7 m/s²) |
AUO G121SN01 V403 Mechanical Details
| Pixel Features : | Resolution | 800(RGB)×600, SVGA | Dot Pitch(mm) | 0.1025×0.3075 (H×V) |
|---|---|---|---|---|
| Pixel Format | RGB Vertical Stripe | Pixel Pitch(mm) | 0.3075×0.3075 (H×V) [82PPI] | |
| Mechanical Size : | Active Area(mm) | 246(H) × 184.5(V) | Bezel Area(mm) | 249.05(H) × 188.3(V) |
| Outline Dim.(mm) | 279(H) × 209(V) | Depth(mm) | 9.0 (Typ.) | |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | |
| Aspect Ratio | 4:3 (H:V) | Orientation | Landscape type | |
| Mounting : | Face mounting holes (6-Φ3.4, 1-R1.7) on left and right bezel | |||
| Other Spec : | Weight | 750g (Max.) | Treatment | Antiglare, Hard coating (3H) |
AUO G121SN01 V403 Optical Details
| Basic Information : | Luminance(cd/m²) | 500 (Typ.) | Contrast Ratio | 700:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 80/80/65/75 (Typ.)(CR≥10) | Display Mode | TN, Normally White, Transmissive | |
| Best View on | 6 o'clock | Response(ms) | 25/10 (Typ.)(Tr/Td) | |
| Color Performance : | White Coordinate | X:0.313; Y:0.329 | Display Colors | 262K/16.2M (6-bit / 6-bit + FRC) |
| Color Temperature | 6485K | White Uniformity | 1.33 (Max.)(5 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 54% | sRGB | 74% coverage |
| Adobe RGB | 57% coverage | DCI-P3 | 56% coverage | |
| Rec.2020 | 40% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
AUO G121SN01 V403 Electronics Details
| Frame Rate : | 60Hz |
|---|---|
| Reverse Scan : | Yes (180°) |
| Power Consumption : | 4.62W (Typ.) |
AUO G121SN01 V403 Interface Details
| Signal Electrical : | Voltage Supply | 3.3V (Typ.) | Current Supply | 200/240mA (Typ./Max.) | ||
|---|---|---|---|---|---|---|
| Consumption | 0.66/0.79W (Typ./Max.) | |||||
| Signal Type : | LVDS (1 ch, 6/8-bit) | Signal Voltage | - | |||
| Interface Features : | Position | Type | Connector | |||
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| STM | MSB240420E | 1 pcs | 20 pins | 1.25 mm | LVDS-20P1C8B-080B | |
AUO G121SN01 V403 Backlight Details
| Backlight Features: | Shape | 3 strings | Type | WLED | Position | Edge light type (Top side) |
|---|---|---|---|---|---|---|
| Replacement | Replaceable | Quantity | 7S3P | Life Time | 50K(Min.) (Hours) | |
| Lamp Electrical : | Voltage Supply | 22.4/25.2V (Typ./Max.) | Current Supply | 45mA (Typ.) | ||
| Consumption | 3.02/3.4W (Typ./Max.) | |||||
| Interface Features : | Position | - | Type | Connector | ||
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| E&T | 3808K-F05N-02R | 1 pcs | 5 pins | 1.25 mm | ||
| Backlight Driver : | With LED Driver | |||||
| Driver Electrical : | Voltage Supply | 10.8/12.0/12.6V (Min./Typ./Max.) | Current Supply | 330/400mA (Typ./Max.) | ||
| Consumption | 3.96/4.80W (Typ/Max.) | |||||
