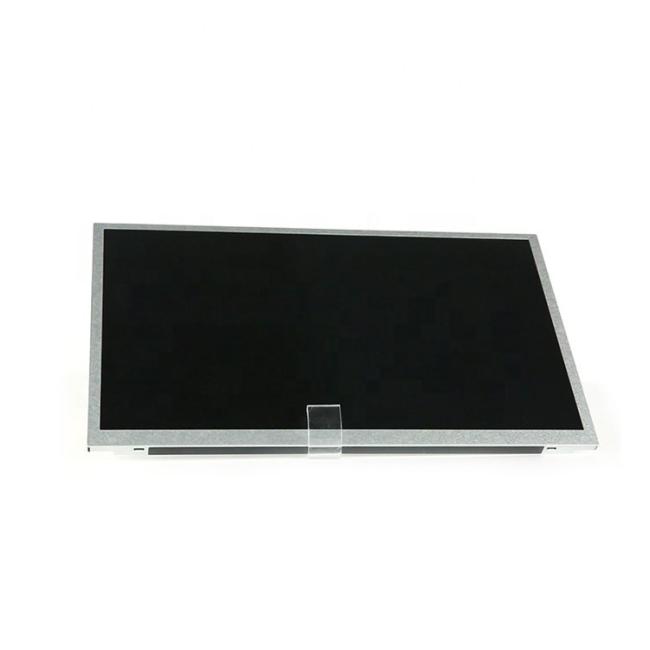

13.3" 1366×768RGB 300CD/M2 AUO TFT Screen WLED LVDS G133XTN01.0
MOQ:
1PCS
Delivery Time:
1-2 DAYS
Brand:
AUO
Product Description
AUO G133XTN01.0 Application Features
| Basic Information : | Brand | Model | Type | Model Alias |
|---|---|---|---|---|
| G133XTN01.0 | a-Si TFT-LCD , LCM | - | ||
| Reliability : | RoHS | Operating Temperature | Storage Temperature | Vibration Resistance |
| -20 ~ 60 °C | -30 ~ 70 °C | - | ||
| Designed For : |
|
|||
AUO G133XTN01.0 Mechanical Features
| Panel Size : | 13.3 inch | |||
|---|---|---|---|---|
| Pixel Features : | Resolution | Pixel Arrangement | Dot Pitch (W×H) | Pixel Pitch (W×H) |
| 1366(RGB)×768, WXGA | RGB Vertical Stripe | 0.0716×0.2148 mm | 0.2148×0.2148 mm [118PPI] | |
| Mechanical Size : | Active Area (W×H) | Bezel Area (W×H) | Outline Dimension (W×H) | Outline Depth |
| 293.42×164.97 mm | - | 306.3×197.2 mm | 3.0 (Typ.) mm | |
| Outline Features : | Form Style | Aspect Ratio | Orientation | Shape Style |
| Flat Rectangle | 16:9 (W : H) | Landscape type | ||
| Fixation : | Face mounting holes (8 pcs) on up, down slugs | |||
| Other Features : | Panel Cover | Weight | Surface | |
| - | 255g (Max.) | Antiglare, Hard coating (3H) | ||
AUO G133XTN01.0 Optical Features
| Basic Information : | Brightness | Operating Mode | Contrast Ratio |
|---|---|---|---|
| 300 cd/m² (Typ.) | TN, Normally White, Transmissive | 400:1 (Typ.) (Transmissive) | |
| Viewing Angle(L/R/U/D) | Viewing Direction | Response Speed | |
| 70/70/50/60 (Typ.)(CR≥10) | - | 5.7/2.3 (Typ.)(Tr/Td) (ms) | |
| Dispaly Color : | Color Temperature | Color Amount | White color Chromaticity |
| 6485K | 16.7M (6-bit + Hi-FRC) | X:0.313; Y:0.329 | |
| 1931 Color Gamlt : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 46% | 65% | 48% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 48% | 34% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| Luminance Variation : | 1.25 (Max.)(5 points) | ||
AUO G133XTN01.0 Electronics Features
| Power Consumption : | 3.0W (Max.) |
|---|---|
| Frame Rate : | 60Hz |
| Reverse Scan : | No |
AUO G133XTN01.0 Interface Features
| Signal Electrical : | Current Input | Voltage Input | Consumption | |||
|---|---|---|---|---|---|---|
| 0.2/0.21A (Typ./Max.) | 3.3V (Typ.) | 0.66/0.76W (Typ./Max.) | ||||
| Interface Features : | Position | Type | Interface | |||
 |
Connector | LVDS (1 ch, 8-bit) | ||||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pins | Pin Assignment |
| HRS | FH41-40S-0.5SH(05) | 1 pcs | 0.5 mm | 40 pins | ||
AUO G133XTN01.0 Backlight Features
| Backlight Features: | Type | Position | Shape | Amount | Life(Hours) | Replacement |
|---|---|---|---|---|---|---|
| WLED | Edge light type | - | - | 20K(Min.) | - | |
| Interface Features : | Position | Type | WLED Driver | |||
| - | Included in panel signal interface | With LED Driver | ||||
| Driver Electrical : | Current Input | Voltage Input | Consumption | |||
| 0.18A (Typ.) | 5.0/12.0/21.0V (Min./Typ./Max.) | 2.1/2.3W (Typ./Max.) | ||||
