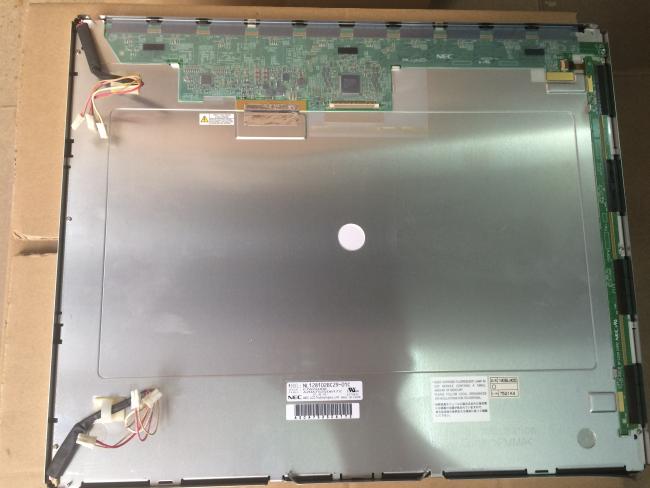

NL128102BC29-01C NLT 19INCH 270CD/M2 LCM 1280×1024 1280×1024RGB CCFL LVDS Operating Temperature: 0 ~ 55 °C INDUSTRIAL LC
Price:
Negotiable
MOQ:
1PCS
Delivery Time:
1-2day
Brand:
NEC
Product Description
NEC NL128102BC29-01C Application Details
| Basic Information : | Brand | Model | NL128102BC29-01C | |
|---|---|---|---|---|
| Type | LCM a-Si TFT-LCD | Used For | ||
| Screen Size | 19.0" | Alias | - | |
| Environment : | Storage Temp. | -20 ~~ 60 °C | Operating Temp. | 0 ~~ 55 °C |
| RoHS | Vibration | 1.2G (11.76 m/s²) |
NEC NL128102BC29-01C Mechanical Details
| Pixel Features : | Resolution | 1280(RGB)×1024, SXGA | Dot Pitch(mm) | 0.098×0.294 (H×V) |
|---|---|---|---|---|
| Pixel Format | RGB Vertical Stripe | Pixel Pitch(mm) | 0.294×0.294 (H×V) [86PPI] | |
| Mechanical Size : | Active Area(mm) | 376.32(H) × 301.056(V) | Bezel Area(mm) | 380.3(H) × 305.1(V) |
| Outline Dim.(mm) | 404.2(H) × 330(V) | Depth(mm) | 22.0/25.55 (Typ./Max.) | |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | Normal bezel |
| Aspect Ratio | 5:4 (H:V) | Orientation | Landscape type | |
| Mounting : | Side mounting holes (4-M3) on left, right bezel | |||
| Other Spec : | Weight | 2.90/3.10Kgs (Typ./Max.) | Treatment | Antiglare, Hard coating (2H) |
NEC NL128102BC29-01C Optical Details
| Basic Information : | Luminance(cd/m²) | 270 (Typ.) | Contrast Ratio | 450:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) | Display Mode | SA-SFT, Normally Black, Transmissive | |
| Best View on | Symmetry | Response(ms) | 10/10 (Typ.)(Tr/Td) | |
| Color Performance : | White Coordinate | X:0.300; Y:0.315 | Display Colors | 16.7M (8-bit) |
| Color Temperature | 7435K | White Uniformity | 1.10/1.25 (Typ./Max.)(5 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 75% | sRGB | 96% coverage |
| Adobe RGB | 78% coverage | DCI-P3 | 78% coverage | |
| Rec.2020 | 56% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
NEC NL128102BC29-01C Interface Details
| Signal Electrical : | Voltage Supply | 5.0V (Typ.) | Current Supply | 680/1400mA (Typ./Max.) | ||
|---|---|---|---|---|---|---|
| Signal Type : | LVDS (2 ch, 8-bit) | Signal Voltage | - | |||
| Interface Features : | Position | - | Type | Connector | ||
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| JAE | FI-X30SSL-HF | 1 pcs | 30 pins | 1.0 mm | LVDS-30P2C8B-160H | |
NEC NL128102BC29-01C Backlight Details
| Backlight Features: | Shape | Straight | Type | CCFL | Position | Edge light type (Top and Bottom) |
|---|---|---|---|---|---|---|
| Replacement | - | Quantity | 6 pcs | Life Time | - | |
| Lamp Electrical : | Voltage Supply | 650V (Typ.) | Current Supply | 3.5/6.0/7.0mA (Min./Typ./Max.) | ||
| Frequency | 40/48/55KHz (Min./Typ./Max.) | Startup Voltage | 1350/1550V (Min.)(Ta=+25/0℃) | |||
| Interface Features : | Position | - | Type | Connector | ||
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| JST | BHSR-02VS-1 | 6 pcs | 2 pins | 3.5 mm | BLL-2PINS-HL | |
| Backlight Driver : | No | |||||
FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
