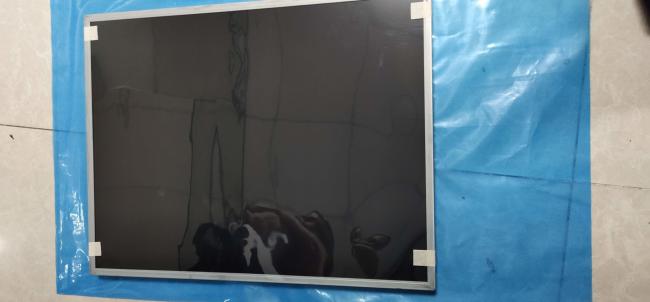

NL160120AC27-37 NLT 21.3INCH 900CD/M2 LCM 1600×1200 1600×1200RGB WLED LVDS Storage Temp.: -20 ~ 60 °C INDUSTRIAL LCD DIS
Price:
Negotiable
MOQ:
1PCS
Delivery Time:
1-2day
Brand:
NEC
Product Description
NLT NL160120AC27-37 Application Features
| Basic Information : | Brand Name | Model Name | Type | Model Alias |
|---|---|---|---|---|
| NL160120AC27-37 | a-Si TFT-LCD , LCM | - | ||
| Maximum Ratings : | RoHS | Operating Temperature | Storage Temperature | Vibration Level |
| 0 ~ 60 °C | -20 ~ 60 °C |
NLT NL160120AC27-37 Mechanical Features
| Screen Size : | 21.3" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Number | Pixel Format | Dot Pitch (H×V) | Pixel Pitch (H×V) |
| 1600(RGB)×1200, UXGA | RGB Vertical Stripe | 0.090×0.270 mm | 0.270×0.270 mm [94PPI] | |
| Mechanical Size : | Display Area (H×V) | Bezel Opening (H×V) | Overall Dimension (H×V) | Overall Depth |
| 432×324 mm | 438.2×330.0 mm | 457×350 mm | 21.5±0.5 mm | |
| Outline Features : | Form Shape | Aspect Ratio (H:V) | Orientation | Shape Style |
| Flat Rectangle | 4:3 | Landscape type | ||
| Other Spec : | Mass | Panel Cover | Surface Treatment | |
| 2.70/2.98Kgs (Typ./Max.) | - | Antiglare, Hard coating (2H) | ||
| Holes & Brackets : | Side mounting holes (4-M3) on left, right bezel | |||
NLT NL160120AC27-37 Optical Features
| Basic Information : | Luminance | Work Mode | Contrast Ratio |
|---|---|---|---|
| 900 cd/m² (Typ.) | SFT, Normally Black, Transmissive | 1400:1 (Typ.) (Transmissive) | |
| Good View at | Viewing Angle | Response Time | |
| Symmetry | 88/88/88/88 (Typ.)(CR≥10) | 20/20 (Typ.)(Tr/Td) (ms) | |
| Dispaly Color : | Color Temperature: | Support Color | Color Coordinate |
| 7502K | 16.7M (8-bit) | X:0.299; Y:0.315 | |
| 1931 Color Gamlt : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 72% | 98% | 75% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 75% | 54% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| White Uniformity : | 1.25 (Max.)(9 points) | ||
| Performance : | 3D Technology | Outdoor Visibility | Reflectance |
| - | Sunlight Readable | - | |
NLT NL160120AC27-37 Backlight Features
| Back-light Features: | Type | Position | Life(Hours) | Amount | Shape | Replacement |
|---|---|---|---|---|---|---|
| WLED | Edge light type | 70K(Typ.) | - | - | - | |
| Interface Features : | WLED Driver State | Physical Type | Interface Position | |||
| With LED Driver | Connector | - | ||||
| Interface Detail | Brand Name | Model Name | Amount | Pins | Pin Pitch | Pin Configuration |
| HRS | DF3Z-10P-2H | 1 pcs | 10 pins | 2.0 mm | ||
| JAE | IL-Z-9PL-SMTYE | 1 pcs | 9 pins | 1.25 mm | ||
| WLED Driver Electrical : | Input Voltage | Input Current | Power Consumption | |||
| 12.0V (Typ.) | 4.2/5.8A (Typ./Max.) | - | ||||
NLT NL160120AC27-37 Interface Features
| Signal Electrical : | Input Voltage | Input Current | Power Consumption | |||
|---|---|---|---|---|---|---|
| 12.0V (Typ.) | 500/700mA (Typ./Max.) | - | ||||
| Interface Features : | Signal Type | Physical Type | Interface Position | |||
| LVDS (2 ch, 8-bit) | Connector | - | ||||
| Interface Detail : | Brand Name | Model Name | Amount | Pins | Pin Pitch | Pin Configuration |
| HRS | DF19G-30P-1H(56) | 1 pcs | 30 pins | 1.0 mm | LVDS-30P2C8B-170B | |
