NL160120AM27-13A NLT 21.3INCH 1650CD/M2 LCM 1600×1200 1600×1200RGB CCFL LVDS Operating Temperature: 0 ~ 55 °C INDUSTRIAL
Price:
Negotiable
MOQ:
1PCS
Delivery Time:
1-2day
Brand:
NEC
Product Description
NEC NL160120AM27-13A Summary

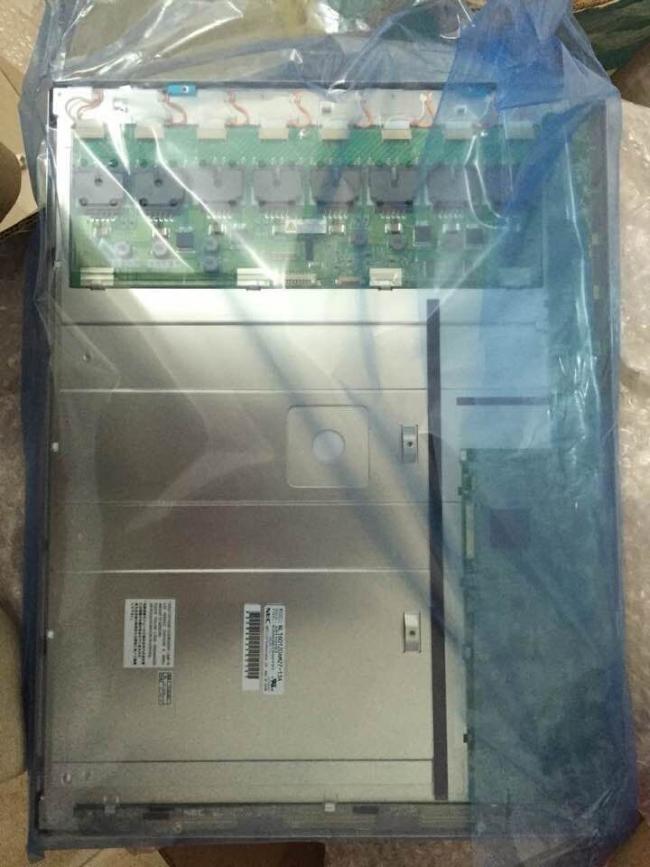

The NL160120AM27-13A is a 21.3 inch diagonal a-Si TFT-LCD display panel product from NEC LCD Technologies, Ltd. (hereafter called NEC), with an integral CCFL backlight system, With Inverter . It features an operating temperature range of 0 ~ 55°C , a storage temperature range of -20 ~ 60°C .
NEC NL160120AM27-13A Application Details
| Basic Detail : | Manufacturer | Model Name | NL160120AM27-13A | |
|---|---|---|---|---|
| Panel Type | a-Si TFT-LCD , LCM | Another Name | - | |
| Panel Size | 21.3 inch | Designed For | ||
| Maximum Ratings : | OP Temperature | 0 ~ 55 °C | ST Temperature | -20 ~ 60 °C |
NEC NL160120AM27-13A Optical Details
| Basic Information : | Luminance | 1650 cd/m² (Typ.) | Contrast Ratio | 850 : 1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Good View at | Symmetry | Response Speed | 25 (Typ.)(Tr+Td) (ms) | |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) | Operating Mode | SA-SFT, Normally Black, Transmissive | |
| Color Performance : | Chromaticity | - | Support Color | Grayscale (8-bit) |
| Dispaly Performance : | Outdoor Visibility | Sunlight Readable | Transmissivity | - |
NEC NL160120AM27-13A Mechanical Details
| Pixel Features : | Number of Pixel | 1600(LCR)×1200 [UXGA] | Arrangement | LCR Vertical Stripe |
|---|---|---|---|---|
| Dot Pitch(W×H) | 0.090×0.270 mm | Pixel Pitch(W×H) | 0.270×0.270 mm [94PPI] | |
| Physical Size : | Active Viewing | 432(W)×324(H) mm | Overall Dim. | 457(W)×350(H) mm |
| Bezel Opening | - | Overall Depth | 37 mm | |
| Outline Features : | Form Shape | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio(W:H) | 4:3 | Shape Style | ||
| Other Detail : | Mass | 2.90Kgs (Typ.) | Surface | Antiglare |
NEC NL160120AM27-13A Interface Details
| Signal Electrical : | Input Current | - | Input Voltage | 12.0V (Typ.) | ||
|---|---|---|---|---|---|---|
| Consumption | - | Signal Interface | LVDS (2 ch, 8-bit) | |||
NEC NL160120AM27-13A Lightting Details
| Lamp Features: | Lamp Shape | Straight | Lamp Type | CCFL | Position | Direct light type |
|---|---|---|---|---|---|---|
| Exchange | - | Amount | 16 pcs | Life | - | |
| Backlight Driver : | With Inverter | |||||
