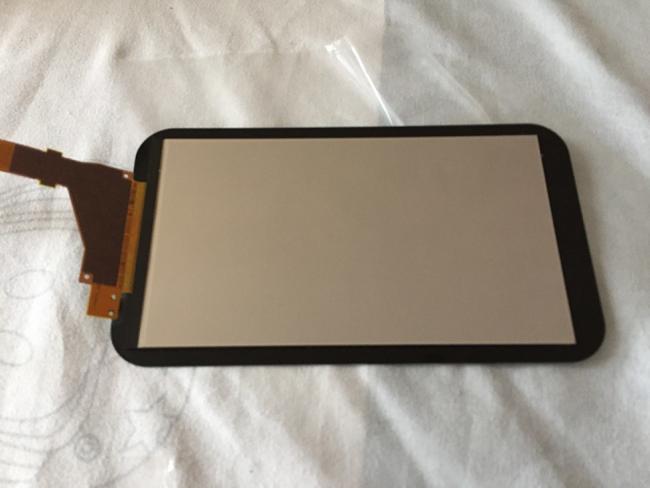

LS050T1SX12(G) Sharp 5" 1080×1920RGB 460 cd/m² INDUSTRIAL LCD DISPLAY

Price Negotiable

Price: Negotiable

MOQ: 1PCS

Delivery Time: 1-2 DAYS

Brand: SHARP

Product Description

LS050 Series LS050T1SX12(G) LS050T1SX06 LS050T1SX04 LS050T1SX01 LS050T1SX18

Sharp LS050T1SX12(G) Application Details

Basic Detail :	Manufacturer SHARP LS050T1SX12(G)Model Name Panel Type CG-Silicon , LCM Another Name - Panel Size 5.0 inch Designed For
Maximum Ratings :	OP Temperature -20 ~ 60 °C ST Temperature -30 ~ 70 °C RoHS -Vibration Level

Pixel Features :	Number of Pixel 1080(RGB)×1920, FHD Arrangement RGB Vertical Stripe Dot Pitch(W×H) 0.019025×0.057075 mm Pixel Pitch(W×H) 0.057075×0.057075 mm [445PPI]
Physical Size :	Active Viewing 61.641(W)×109.584(H) mm Overall Dim. 64.041(W)×116.224(H) mm Bezel Opening - Overall Depth 1.06±0.07 mm
Outline Features :	Form Shape Flat Rectangle Orientation Portrait type Aspect Ratio(W:H) 9:16 Shape Style
Other Detail :	Mass 13.0g (Typ.) Surface Hard coating (3H)

Signal Electrical :	Input Current 25.05/7.7/8.23mA (Typ.)(IOIDD/ISP/ISN) Input Voltage 1.8/5.5/-5.5V (Typ.)(IOVDD/VSP/VSN) Consumption - Signal Interface MIPI (4 data lanes)
Interface Features :	Position - Type Connector
Interface Detail :	Brand Model Pitch Pins Amount Pin Assignment molex 504208-3410 0.4 mm 34 pins 1 pcs

Lamp Features :	Lamp Type WLED Amount 7S2P Position Edge light type Exchange - Lamp Shape 2 strings Lamp Life -
Interface Features :	Position - Type Included in panel signal interface
Backlight Driver :	No

Basic Detail :	Luminance 460 cd/m² (Typ.) Contrast Ratio 1000:1 (Typ.) (Transmissive) Good View at Symmetry Response Speed 35 (Max.)(Tr+Td) ms Viewing Angle 85/85/85/85 (Min.)(CR≥10) Operating Mode New Mode2, Normally Black, Transmissive
Color Performance :	Chromaticity Wx:0.300; Wy:0.320 Support Color 16.7M (8-bit) Color Temperature 7351K White Variation 1.18/1.25 (Typ./Max.)(9 points)
1931 Color Gamlt :	NTSC Ratio 94% sRGB 100% coverage Adobe RGB 84% coverage DCI-P3 92% coverage Rec.2020 70% coverage Remarks sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
