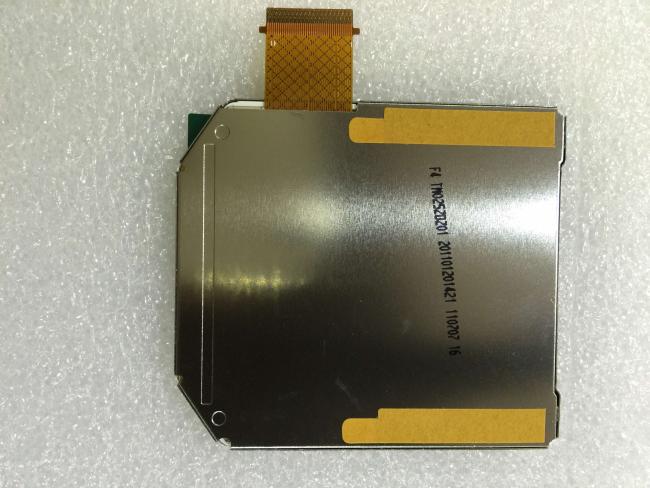

TM025ZDZ01 TIANMA 1.8 inch 320×320 400 cd/m² INDUSTRIAL LCD DISPLAY
Price:
Negotiable
MOQ:
1PCS
Delivery Time:
1-2 DAYS
Brand:
TIANMA
Product Description
TIANMA TM025ZDZ01 Application Details
| Basic Info : | Panel Brand | Panel Model | TM025ZDZ01 | |
|---|---|---|---|---|
| Diagonal Size | 1.8" | Application |
|
|
| Panel Type | a-Si TFT-LCD , LCM | Model Alias | - | |
| Reliability : | Operating Temp. | -20 ~ 70 °C | Storage Temp. | -30 ~ 80 °C |
| RoHS State | Vibration Rating | - | ||
| Specific Features : |
|
|||
TIANMA TM025ZDZ01 Optical Details
| Basic Information : | Brightness | 400 cd/m² (Typ.) | Contrast Ratio | 500:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 70/70/60/70 (Typ.)(CR≥10) | Optical Mode | TN, Normally White, Transmissive | |
| Viewing Direction | 12 o'clock | Response Time | 20 (Typ.)(Tr+Td) (ms) | |
| Color Performance : | Chromaticity | Wx:0.310; Wy:0.340 | Color Numbers | 16.7M (8-bit) |
| Color Temperature | 6551K | White Uniformity | 1.25/1.43 (Typ./Max.)(9 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 54% | sRGB | 75% coverage |
| Adobe RGB | 57% coverage | DCI-P3 | 57% coverage | |
| Rec.2020 | 41% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
TIANMA TM025ZDZ01 Mechanical Details
| Pixel Features : | Pixel Format | 320(RGB)×320 | Dot Pitch | 0.0465×0.1395 mm (H×V) |
|---|---|---|---|---|
| Configuration | RGB Vertical Stripe | Pixel Pitch | 0.1395×0.1395 mm (H×V) [182PPI] | |
| Mechanical Size : | Display Area | 44.64×44.64 mm (H×V) | Bezel Area | - |
| Outline Dim. | 50.44×56.34 mm (H×V) | Outline Depth | 2.6 (Typ.) mm | |
| Outline Features : | Form Factor | Flat Circular | Orientation | Landscape type |
| Aspect Ratio | 1:1 (H:V) | Shape Style | ||
| Other Features : | Weight | 15.2g (Typ.) | Surface | Hard coating |
TIANMA TM025ZDZ01 Electronics Details
| Reverse Scan : | No |
|---|---|
| D-IC Detail : | COG Built-in S6D051A1 |
TIANMA TM025ZDZ01 Backlight Details
| Back-light Features: | Lamp Shape | 1 string | Lamp Type | WLED | Life Time | - |
|---|---|---|---|---|---|---|
| Replacement | - | Amount | 4S1P | Position | Edge light type | |
| Lamp Electrical : | Voltage Input | 12.8V (Typ.) | Current Input | 20mA (Typ.) | ||
| Consumption | 256mW (Typ.) | |||||
| Interface Features : | Type | Included in panel signal interface | Position | - | Lamp Driver | No |
TIANMA TM025ZDZ01 Interface Details
| Signal Systerm : | Parallel RGB (1 ch, 8-bit) + SPI | Logic Voltage | - | |||
|---|---|---|---|---|---|---|
| Signal Electrical : | Voltage Input | (1.8/2.8)/2.8V (Typ.)(IOVCC/VCC) | Current Input | - | ||
| Consumption | 2.25mW (Typ.) | |||||
| Interface Features : | Type | FPC | Position | - | ||
| FPC Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| 0.3 mm | 41 pins | 1 pcs | ||||
TIANMA TM025ZDZ01 Carton Details
| Package Carton : | Amount | Net Weight | Carton Size (L×W×H) |
|---|---|---|---|
| 924 pcs / box | 21.9 Kgs | 550×385×320 mm |
