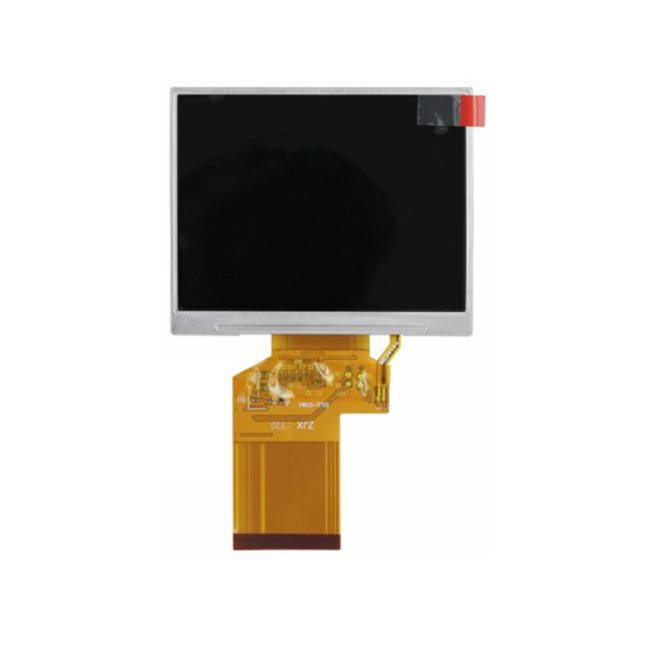

TM035KDH03 TIANMA 3.5 inch 320×240 300 cd/m² INDUSTRIAL LCD DISPLAY

Price Negotiable
Price: Negotiable
MOQ: 1PCS
Delivery Time: 1-2 DAYS
Brand: TIANMA
Product Description

TIANMA TM035KDH03 Mechanical Details

Pixel Features :
Resolution
320(RGB)×240, QVGA
Dot Pitch(mm)
0.073×0.219 (H×V)
Pixel Format
RGB Vertical Stripe
Pixel Pitch(mm)
0.219×0.219 (H×V) [115PPI]
Mechanical Size :
Active Area(mm)
70.08(H) × 52.56(V)
Bezel Area(mm)
72.88(H) × 55.36(V)
Outline Dim.(mm)
76.9(H) × 63.9(V)
Depth(mm)
3.15±0.2
Outline Features :
Form Style
Flat Rectangle
Shape Style

Aspect Ratio
4:3 (H:V)
Orientation
Landscape type
Other Spec :
Weight
30.0g (Typ.)
Treatment
Clear, Hard coating (3H)



TIANMA TM035KDH03 Application Details

Basic Information :
Brand

Model
TM035KDH03 1 Compatible
Type
a-Si TFT-LCD , LCM
Used For




Screen Size
3.5 inch
Alias
TS035KAAVD03-00
Environment :
Storage Temp.
-30 ~ 80 °C
Operating Temp.
-20 ~ 70 °C
RoHS

Vibration
-
Typical Features :
Remarks :
2 in 1 FPC; Down side FPC (55.90mm length)



TIANMA TM035KDH03 Optical Details

Basic Information :
Luminance(cd/m²)
300 (Typ.)
Contrast Ratio
500:1 (Typ.) (Transmissive)
Viewing Angle
70/70/60/70 (Typ.)(CR≥10)
Display Mode
TN, Normally White, Transmissive
Best View on
12 o'clock
Response(ms)
25 (Typ.)(Tr+Td)
Color Performance :
White Coordinate
Wx:0.280; Wy:0.305
Display Colors
16.7M (6-bit + Dithering)
Color Temperature
9273K
White Uniformity
1.25/1.33 (Typ./Max.)(9 points)
1931 Color Gamlt :
NTSC Ratio
53%
sRGB
75% coverage
Adobe RGB
56% coverage
DCI-P3
56% coverage
Rec.2020
40% coverage
Remarks
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)



TIANMA TM035KDH03 Electronics Details

Frame Rate :
60Hz
Reverse Scan :
No
Driver IC :
Built-in NV3035C
Time Controller (T-CON) :
Embedded T-CON



TIANMA TM035KDH03 Backlight Details

Backlight Features :
Type
WLED
Quantity
6S1P
Position
Edge light type
Replacement
-
Shape
1 string
Life Time
20K(Typ.) (Hours)
Lamp Electrical :
Voltage Supply
19.2±2.4V
Current Supply
20/25mA (Typ./Max.)
Consumption
384/510mW (Typ./Max.)
Interface Features :
Position
-
Type
Included in panel signal interface
Backlight Driver :
No



TIANMA TM035KDH03 Interface Detail

Signal Electrical :
Voltage Supply
3.3V (Typ.)
Current Supply
-
Consumption
35/50mW (Typ./Max.)
Signal Type :
Digital RGB (8/24-bit) + SPI, CCIR601/656
Logic Voltage
0≤VIL≤0.3VDD; 0.7VDD≤VIH≤VDD
Interface Features :
Position
-
Type
FPC
Interface Detail :
Brand
Model
Pitch
Pins
Quantity
Pin Configuration


0.5 mm
54 pins
1 pcs



TIANMA TM035KDH03 Packing Details

Package Box : Quantity Weight Box Size
168 pcs / box 8.94±0.45 Kgs 530×350×250 mm (L×W×H)



FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
