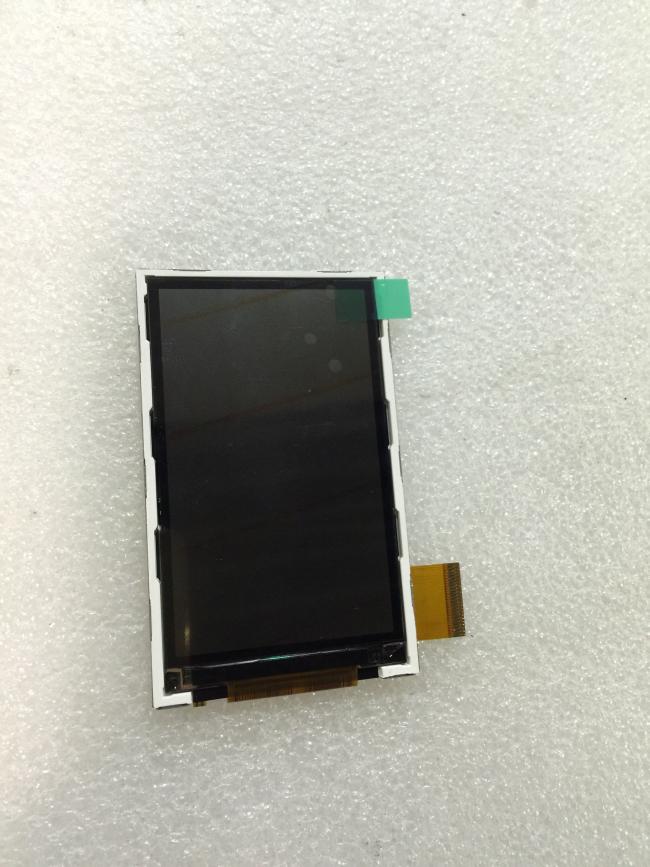

TM080VDSP03 TIANMA 8.0 inch 1200×1920 390 cd/m² INDUSTRIAL LCD DISPLAY
Price:
Negotiable
MOQ:
1PCS
Delivery Time:
1-2 DAYS
Brand:
TIANMA
Product Description
TIANMA TM080VDSP03 Optical Features
| Basic Information : | Brightness | Operating Mode | Contrast Ratio |
|---|---|---|---|
| 390 cd/m² (Typ.) | SFT, Normally Black, Transmissive | 800:1 (Typ.) (Transmissive) | |
| Viewing Angle(L/R/U/D) | Viewing Direction | Response Speed | |
| 85/85/85/85 (Typ.)(CR≥10) | Symmetry | 25 (Typ.)(Tr+Td) (ms) | |
| Dispaly Color : | Color Temperature | Color Amount | White color Chromaticity |
| 7272K | 16.7M (8-bit) | X:0.301; Y:0.321 | |
| 1931 Color Gamlt : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 61% | 80% | 62% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 63% | 46% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| Luminance Variation : | 1.18/1.25 (Typ./Max.)(9 points) | ||
TIANMA TM080VDSP03 Application Features
| Basic Information : | Brand | Model | Type | Model Alias |
|---|---|---|---|---|
| TM080VDSP03 | a-Si TFT-LCD , LCM | - | ||
| Reliability : | RoHS | Operating Temperature | Storage Temperature | Vibration Resistance |
| -10 ~ 60 °C | -15 ~ 70 °C | - | ||
| Designed For : | ||||
| Specific Features : |
|
|||
TIANMA TM080VDSP03 Mechanical Features
| Panel Size : | 8.0 inch | |||
|---|---|---|---|---|
| Pixel Features : | Resolution | Pixel Arrangement | Dot Pitch (W×H) | Pixel Pitch (W×H) |
| 1200(RGB)×1920, WUXGA | RGB Vertical Stripe | 0.0299×0.0897 mm | 0.0897×0.0897 mm [283PPI] | |
| Mechanical Size : | Active Area (W×H) | Bezel Area (W×H) | Outline Dimension (W×H) | Outline Depth |
| 107.64×172.224 mm | - | 114.58×184.09 mm | 2.05/3.95 (Typ./Max.) mm | |
| Outline Features : | Form Style | Aspect Ratio | Orientation | Shape Style |
| Flat Rectangle | 10:16 (W : H) | Portrait type | ||
| Fixation : | Without | |||
| Other Features : | Panel Cover | Weight | Surface | |
| - | TBD | Hard coating | ||
TIANMA TM080VDSP03 Electronics Features
| Power Consumption : | 1.91W (Typ.) |
|---|---|
| Frame Rate : | 60Hz |
| Reverse Scan : | No |
| D-IC Detail : | COG Suggest NT51021 |
TIANMA TM080VDSP03 Interface Features
| Signal Electrical : | Current Input | Voltage Input | Consumption | |||
|---|---|---|---|---|---|---|
| 150mA (Typ.) | 3.3V (Typ.)(VCI) | 195mW (Typ.) | ||||
TIANMA TM080VDSP03 Backlight Features
| Backlight Features: | Type | Position | Shape | Amount | Life(Hours) | Replacement |
|---|---|---|---|---|---|---|
| WLED | Edge light type | 3 strings | 7S3P | - | - | |
| WLED Electrical : | Current Input | Voltage Input | Consumption | |||
| 63mA (Typ.) | 22.4V (Typ.) | 1.41W (Typ.) | ||||
| Interface Features : | Position | Type | WLED Driver | |||
| - | Included in panel signal interface | |||||
