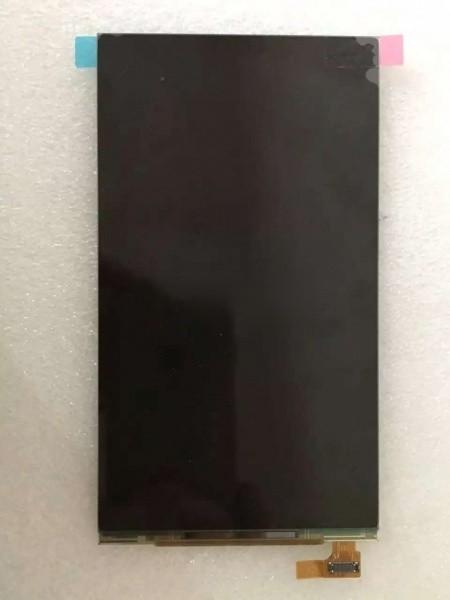

TM035NDH04 TIANMA 3.5 inch 272×480 300 cd/m² INDUSTRIAL LCD DISPLAY
Price:
Negotiable
MOQ:
1PCS
Delivery Time:
1-2 DAYS
Brand:
TIANMA
Product Description
TIANMA TM035NDH04 Packing Features
| Package Box : | Quantity | Weight | Box Size |
|---|---|---|---|
| 384 pcs / box | 14.24±0.7 | 544×365×250 mm (L×W×H) |
TIANMA TM035NDH04 Interface Features
| Panel Driving Electrical : | Voltage Supply | Current Supply | Power | |||
|---|---|---|---|---|---|---|
| 2.8/2.8V (Typ.)(IOVCC/VCC) | - | - | ||||
| Interface Features : | Position | Signal | Type | |||
| - | CPU | FPC | ||||
| FPC Detail : | Brand | Model | Pin Pitch | Pin Amount | Quantity | Configuration |
| 0.8 mm | 41 pins | 1 pcs | ||||
TIANMA TM035NDH04 Backlight Features
| Lamp Features: | Type | Position | Quantity | Shape | Life(Hours) | Lamp Exchange |
|---|---|---|---|---|---|---|
| WLED | Edge light type | 1S6P | Parallel | - | - | |
| WLED Electrical : | Voltage Supply | Current Supply | Power | |||
| 3.2V (Typ.) | 20mA (Typ.) | 384mW (Typ.) | ||||
| Interface Features : | Position | Backlight Driver | Type | |||
| - | No | Included in panel signal interface | ||||
TIANMA TM035NDH04 Electronics Features
| Reverse Scan : | No |
|---|---|
| Driver IC : | Built-in ILI9481 |
TIANMA TM035NDH04 Mechanical Features
| Panel Size : | 3.5" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Format | Pixel Configuration | Pixel Pitch (mm) | Dot Pitch (mm) |
| 272(RGB)×480 [WQVGA] | RGB Vertical Stripe | 0.16125×0.16125 [157PPI] | 0.05375×0.16125 | |
| Mechanical Size : | Active Area (mm) | Bezel Area (mm) | Outline Dimension (mm) | Outline Depth (mm) |
| 43.86(H) × 77.4(V) | 44.86(H) × 78.4(V) | 50.86(H) × 87.98(V) | 2.5 (Max.) mm | |
| Outline Features : | Form Factor | Orientation | Aspect Ratio | Shape Style |
| Flat Rectangle | Portrait type | 9:16 (H:V) | ||
| Other Detail : | Weight | Panel Cover | Treatment | |
| 21.4g | - | Antiglare | ||
TIANMA TM035NDH04 Optical Features
| Basic Information : | Luminance (cd/m²) | Viewing Angle (L/R/U/D) | Response Time (ms) |
|---|---|---|---|
| 300 (Typ.) | 60/70/70/70 (Typ.)(CR≥10) | 20 (Typ.)(Tr+Td) | |
| Best View on | Display Mode | Contrast Ratio | |
| 9 o'clock | TN, Normally White, Transmissive | 500 : 1 (Typ.) (Transmissive) | |
| Dispaly Color : | Color Temperature | Display Colors | White Coordinate |
| 7351K | 65K/262K | X:0.300; Y:0.320 | |
| 1931 Color Gamlt : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 49% | 69% | 52% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 51% | 37% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| White Variation : | 1.25 (Max.)(5 points) | ||
TIANMA TM035NDH04 Application Features
| Basic Information : | Manufacturer | Panel Model | Panel Type | Alias |
|---|---|---|---|---|
| TM035NDH04 | a-Si TFT-LCD , LCM | - | ||
| Environment : | RoHS State | Operating Temp. | Storage Temp. | Vibration Level |
| -20 ~ 70 °C | -30 ~ 80 °C | - | ||
| Used For : |
|
|||
| Specific Features : |
|
|||
| Remarks : | 3 in 1 FPC; Down side FPC (24.15mm length | |||
