China LS037V7DW06 Sharp 3.7INCH 480×640RGB  300 cd/m² INDUSTRIAL LCD DISPLAY for sale
China LS037V7DW06 Sharp 3.7INCH 480×640RGB  300 cd/m² INDUSTRIAL LCD DISPLAY for sale
China LS037V7DW06 Sharp 3.7INCH 480×640RGB  300 cd/m² INDUSTRIAL LCD DISPLAY for sale
China LS037V7DW06 Sharp 3.7INCH 480×640RGB  300 cd/m² INDUSTRIAL LCD DISPLAY for sale

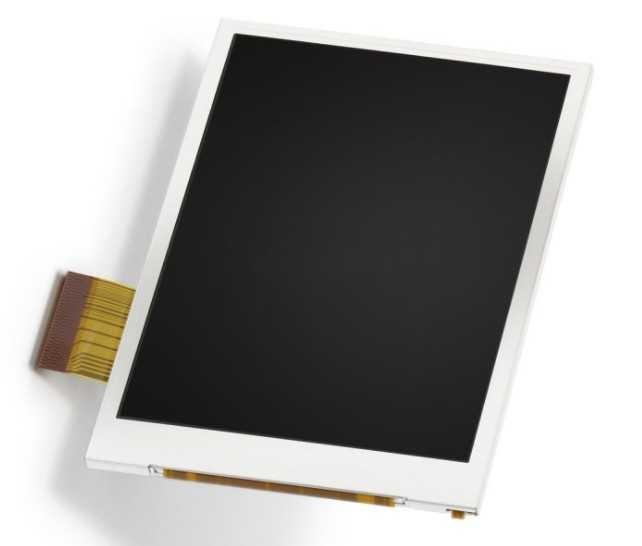

LS037V7DW06 Sharp 3.7INCH 480×640RGB  300 cd/m² INDUSTRIAL LCD DISPLAY

Price Negotiable
Price: Negotiable
MOQ: 1PCS
Delivery Time: 1-2 DAYS
Brand: SHARP
Product Description

LS037 Series LS037V7DW06 LS037V7DW05 LS037V7DW03B LS037V7DW03 LS037V7DW01





Sharp LS037V7DW06 Application Details

Basic Info :
Panel Brand
SHARP
LS037V7DW06Panel Model
Diagonal Size
3.7"
Application

CG-Silicon , LCMPanel Type
Model Alias
-
Reliability :
Operating Temp.
-20 ~ 70 °C
Storage Temp.
-30 ~ 80 °C
RoHS State

-Vibration Rating



Sharp LS037V7DW06 Optical Details

Basic Information :
Brightness
300 cd/m² (Typ.)
Contrast Ratio
900:1 (Typ.) (Transmissive)
Viewing Angle
80/80/80/80 (Typ.)(CR≥5)
Optical Mode
ASV, Normally Black, Transflective
Viewing Direction
Symmetry
Response Time
15/20 (Typ.)(Tr/Td) ms
Color Performance :
Chromaticity
Wx:0.317; Wy:0.336
Color Numbers
262K/16.7M (6-bit / 8-bit)
Color Temperature
6231K
Uniformity
1.67 (Max.)(9 points)
Dispaly Performance :
Outdoor Visibility
Sunlight Readable
Transmittance
-
3D Type
-
Reflectance
2/4% (Min./Typ.)



Sharp LS037V7DW06 Backlight Details

Back-light Features :
Lamp Type
WLED
Amount
6S1P
Life Time
10K(Min.) (Hours)
Replacement
-
Lamp Shape
1 string
Position
Edge light type
Lamp Electrical :
Voltage Input
18.0/19.8V (Typ./Max.)
Current Input
17mA (Typ.)
Consumption
306/396mW (Typ./Max.)
Interface Features :
Type
Included in panel signal interface
Position
-
Lamp Driver
No



Sharp LS037V7DW06 Mechanical Details

Pixel Features :
Pixel Format
480(RGB)×640, VGA
Dot Pitch
0.039×0.117 mm (H×V)
Configuration
RGB Vertical Stripe
Pixel Pitch
0.117×0.117 mm (H×V) [217PPI]
Mechanical Size :
Display Area
56.16×74.88 mm (H×V)
Bezel Area
58.8×78.0 mm (H×V)
Outline Dim.
65×89.2 mm (H×V)
Outline Depth
3.2/3.6 (Typ./Max.) mm
Outline Features :
Form Factor
Flat Rectangle
Orientation
Portrait type
Aspect Ratio
3:4 (H:V)
Shape Style

Other Features :
Weight
38.0g (Typ.)
Surface
Antiglare



Sharp LS037V7DW06 Electronics Details

Frame Frequency :
60Hz
Reverse Scan :
Yes (U/D, L/R)





Sharp LS037V7DW06 Interface Detail

Signal Systerm :
Parallel RGB (1 ch, 8-bit) + SPI
Logic Voltage
0≤VIL≤0.3VCI; 0.7VCI≤VIH≤VCI
Signal Electrical :
Voltage Input
5.5/1.8V (Typ.)(VDD5/VCI)
Current Input
11.0/5.3mA (Typ./Max.)
Interface Features :
Type
FPC
Position
-
FPC Detail :
Brand
Model
Pin Pitch
Pins
Amount
Configuration


0.3 mm
61 pins
1 pcs



Sharp LS037V7DW06 Carton Details

Package Carton : Amount Net Weight Carton Size (L×W×H)
140 pcs / box 9.6 Kgs 575×360×225 mm



5. FAQ:



Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.



Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.



Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.



Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
