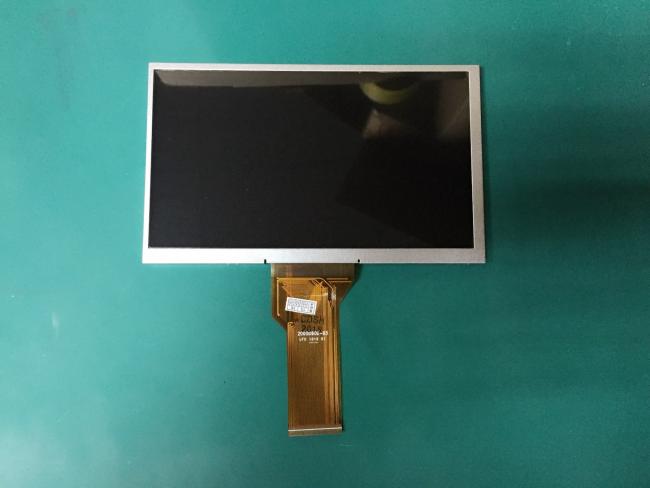

TM070RDH10-11 TIANMA 7.0" 8000(RGB)×480 350 cd/m² INDUSTRIAL LCD DISPLAY

Name: TM070RDH10-11 TIANMA 7.0 8000(RGB)u00d7480 350 cd/mu00b2 INDUSTRIAL LCD DISPLAY
Brand: Sapientia Display Co.,LIMITED

Price Negotiable

Price: Negotiable

MOQ: 1PCS

Delivery Time: Negotiable

Brand: TIANMA

Product Description

TIANMA TM070RDH10-11 Application Features

Basic Information :	Brand	Model	Type	Model Alias
Basic Information :		TM070RDH10-11	a-Si TFT-LCD , LCM	-
Reliability :	RoHS	Operating Temperature	Storage Temperature	Vibration Resistance
Reliability :		-20 ~ 70 °C	-30 ~ 80 °C	-
Designed For :
Specific Features :
Remarks :	80.15mm length FPC

TIANMA TM070RDH10-11 Mechanical Features

Panel Size :	7.0 inch
Pixel Features :	Resolution	Pixel Arrangement	Dot Pitch (W×H)	Pixel Pitch (W×H)
Pixel Features :	800(RGB)×480, WVGA	RGB Vertical Stripe	0.0642×0.1790 mm	0.1926×0.1790 mm [134PPI]
Mechanical Size :	Active Area (W×H)	Bezel Area (W×H)	Outline Dimension (W×H)	Outline Depth
Mechanical Size :	154.08×85.92 mm	157.08×89.39 mm	164.9×100 mm	5.7±0.3 mm
Outline Features :	Form Style	Aspect Ratio	Orientation	Shape Style
Outline Features :	Flat Rectangle	16:9 (W : H)	Landscape type
Fixation :	Without
Other Features :	Panel Cover	Weight	Surface
Other Features :	-	160g (Typ.)	Antiglare

TIANMA TM070RDH10-11 Optical Features

Basic Information :	Brightness	Operating Mode	Contrast Ratio
	350 cd/m² (Typ.)	TN, Normally White, Transmissive	500:1 (Typ.) (Transmissive)
	Viewing Angle(L/R/U/D)	Viewing Direction	Response Speed
	70/70/50/70 (Typ.)(CR≥10)	12 o'clock	25 (Typ.)(Tr+Td) (ms)
Dispaly Color :	Color Temperature	Color Amount	White color Chromaticity
Dispaly Color :	6371K	262K/16.7M (6-bit / 6-bit + Dithering)	X:0.315; Y:0.330
1931 Color Gamlt :	NTSC Ratio	sRGB Coverage	Adobe RGB Coverage
	50%	70%	52%
	DCI-P3 Coverage	Rec.2020 Coverage	Remarks
	52%	37%	sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
Luminance Variation :	1.33 (Typ.)(9 points)

TIANMA TM070RDH10-11 Electronics Features

Frame Rate :	60Hz
Reverse Scan :	Yes (U/D, L/R)
Time Controller (T-CON) :	Embedded T-CON

TIANMA TM070RDH10-11 Interface Features

Signal Electrical :	Current Input		Voltage Input			Consumption
Signal Electrical :	10/55/0.3/0.3mA (Max.)(ICC/IDD/IGH/IGL)		3.3/12.5/22.0/-7.0V (Typ.)(VCC/AVDD/VGH/VGL)			-
Voltage for Display Signals :	0≤VIL≤0.3VCC; 0.7VCC≤VIH≤VCC
Interface Features :	Position	Type	Interface
Interface Features :	-	FPC	Parallel RGB (1 ch, 6/8-bit)
Signal Interface :	Brand	Model	Amount	Pin Pitch	Pins	Pin Assignment
Signal Interface :			1 pcs	0.5 mm	50 pins	DRGB-50P1C8B-115A

TIANMA TM070RDH10-11 Application Features

Basic Information :	Brand	Model	Type	Model Alias
Basic Information :		TM070RDH10-11	a-Si TFT-LCD , LCM	-
Reliability :	RoHS	Operating Temperature	Storage Temperature	Vibration Resistance
Reliability :		-20 ~ 70 °C	-30 ~ 80 °C	-
Designed For :
Specific Features :
Remarks :	80.15mm length FPC

TIANMA TM070RDH10-11 Mechanical Features

Panel Size :	7.0 inch
Pixel Features :	Resolution	Pixel Arrangement	Dot Pitch (W×H)	Pixel Pitch (W×H)
Pixel Features :	800(RGB)×480, WVGA	RGB Vertical Stripe	0.0642×0.1790 mm	0.1926×0.1790 mm [134PPI]
Mechanical Size :	Active Area (W×H)	Bezel Area (W×H)	Outline Dimension (W×H)	Outline Depth
Mechanical Size :	154.08×85.92 mm	157.08×89.39 mm	164.9×100 mm	5.7±0.3 mm
Outline Features :	Form Style	Aspect Ratio	Orientation	Shape Style
Outline Features :	Flat Rectangle	16:9 (W : H)	Landscape type
Fixation :	Without
Other Features :	Panel Cover	Weight	Surface
Other Features :	-	160g (Typ.)	Antiglare

Disclaimer : Inputted by panelook engineers according to datasheet, but we cannot guarantee the spec listed is entirely correct.
Back to Top

TIANMA TM070RDH10-11 Optical Features

Basic Information :	Brightness	Operating Mode	Contrast Ratio
	350 cd/m² (Typ.)	TN, Normally White, Transmissive	500:1 (Typ.) (Transmissive)
	Viewing Angle(L/R/U/D)	Viewing Direction	Response Speed
	70/70/50/70 (Typ.)(CR≥10)	12 o'clock	25 (Typ.)(Tr+Td) (ms)
Dispaly Color :	Color Temperature	Color Amount	White color Chromaticity
Dispaly Color :	6371K	262K/16.7M (6-bit / 6-bit + Dithering)	X:0.315; Y:0.330
1931 Color Gamlt :	NTSC Ratio	sRGB Coverage	Adobe RGB Coverage
	50%	70%	52%
	DCI-P3 Coverage	Rec.2020 Coverage	Remarks
	52%	37%	sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
Luminance Variation :	1.33 (Typ.)(9 points)

Disclaimer : Inputted by panelook engineers according to datasheet, but we cannot guarantee the spec listed is entirely correct.
Back to Top

TIANMA TM070RDH10-11 Electronics Features

Frame Rate :	60Hz
Reverse Scan :	Yes (U/D, L/R)
Time Controller (T-CON) :	Embedded T-CON

TIANMA TM070RDH10-11 Packing Features

Package Carton :	Amount	Weight	Carton Size
Package Carton :	50 pcs / box	12.26±0.62 Kgs	530×350×250 mm (L×W×H)

FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.

TIANMA TM070RDH10-11 Interface Features

Signal Electrical :	Current Input		Voltage Input			Consumption
Signal Electrical :	10/55/0.3/0.3mA (Max.)(ICC/IDD/IGH/IGL)		3.3/12.5/22.0/-7.0V (Typ.)(VCC/AVDD/VGH/VGL)			-
Voltage for Display Signals :	0≤VIL≤0.3VCC; 0.7VCC≤VIH≤VCC
Interface Features :	Position	Type	Interface
Interface Features :	-	FPC	Parallel RGB (1 ch, 6/8-bit)
Signal Interface :	Brand	Model	Amount	Pin Pitch	Pins	Pin Assignment
Signal Interface :			1 pcs	0.5 mm	50 pins	DRGB-50P1C8B-115A

TIANMA TM070RDH10-11 Backlight Features

Backlight Features:	Type	Position	Shape	Amount	Life(Hours)	Replacement
Backlight Features:	WLED	Edge light type	Array	3S8P	20K(Typ.)	-
WLED Electrical :	Current Input		Voltage Input			Consumption
WLED Electrical :	160/200mA (Typ./Max.)		9.6/10.8V (Typ./Max.)			1.54/2.16W (Typ./Max.)
Interface Features :	Position	Type	WLED Driver
Interface Features :	-	Included in panel signal interface	No
