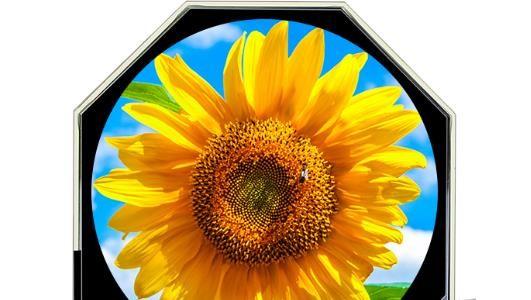

TM030XDHG30 TIANMA 2.1" 480(RGB)×480 450CD/M2 INDUSTRIAL LCD DISPLAY
Price:
Negotiable
MOQ:
1PCS
Delivery Time:
1-2 DAYS
Brand:
TIANMA
Product Description
TIANMA TM030XDHG30 Application Details
| Basic Info : | Panel Brand | Panel Model | TM030XDHG30 | |
|---|---|---|---|---|
| Diagonal Size | 2.1" | Application |
|
|
| Panel Type | a-Si TFT-LCD , LCM | Model Alias | - | |
| Reliability : | Operating Temp. | -20 ~ 70 °C | Storage Temp. | -30 ~ 80 °C |
| RoHS State | Vibration Rating | - | ||
| Specific Features : |
|
|||
| Remarks : | for Google Nest Learning Thermosta | |||
TIANMA TM030XDHG30 Mechanical Details
| Pixel Features : | Pixel Format | 480(RGB)×480 | Dot Pitch | 0.037×0.111 mm (H×V) |
|---|---|---|---|---|
| Configuration | RGB Vertical Stripe | Pixel Pitch | 0.111×0.111 mm (H×V) [228PPI] | |
| Mechanical Size : | Display Area | 53.28×53.28 mm (H×V) | Bezel Area | - |
| Outline Dim. | 58.01×61.38 mm (H×V) | Outline Depth | 2.45±0.2 mm | |
| Outline Features : | Form Factor | Flat Circular | Orientation | Landscape / Portrait |
| Aspect Ratio | 1:1 (H:V) | Shape Style | ||
| Other Features : | Weight | 16.9g (Typ.) | Surface | Hard coating |
TIANMA TM030XDHG30 Optical Details
| Basic Information : | Brightness | 450 cd/m² (Typ.) | Contrast Ratio | 800:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥10) | Optical Mode | SFT, Normally Black, Transmissive | |
| Viewing Direction | Symmetry | Response Time | 25 (Typ.)(Tr+Td) (ms) | |
| Color Performance : | Chromaticity | Wx:0.310; Wy:0.330 | Color Numbers | 16.7M (8-bit) |
| Color Temperature | 6638K | White Uniformity | 1.25/1.33 (Typ./Max.)(5 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 53% | sRGB | 73% coverage |
| Adobe RGB | 55% coverage | DCI-P3 | 55% coverage | |
| Rec.2020 | 39% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020 |
TIANMA TM030XDHG30 Electronics Details
| Frame Frequency : | 60Hz |
|---|---|
| Reverse Scan : | No |
| D-IC Detail : | COG Built-in HX8369A |
TIANMA TM030XDHG30 Backlight Details
| Back-light Features: | Lamp Shape | 1 string | Lamp Type | WLED | Life Time | - |
|---|---|---|---|---|---|---|
| Replacement | - | Amount | 4S1P | Position | Edge light type | |
| Lamp Electrical : | Voltage Input | 12.8V (Typ.) | Current Input | 20mA (Typ.) | ||
| Consumption | 256mW (Typ.) | |||||
| Interface Features : | Type | Included in panel signal interface | Position | - | Lamp Driver | No |
TIANMA TM030XDHG30 Interface Details
| Signal Systerm : | Parallel RGB (1 ch, 8-bit) + SPI | Logic Voltage | - | |||
|---|---|---|---|---|---|---|
| Signal Electrical : | Voltage Input | (1.8/2.8)/2.8V (Typ.)(IOVCC/VCC) | Current Input | - | ||
| Consumption | 94/145mW (Typ./Max.) | |||||
| Interface Features : | Type | FPC | Position | - | ||
| FPC Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| 0.3 mm | 41 pins | 1 pcs | ||||
TIANMA TM030XDHG30 Carton Details
| Package Carton : | Amount | Net Weight | Carton Size (L×W×H) |
|---|---|---|---|
| 504 pcs / box | 14.4±0.7 Kgs | 544×365×250 mm |
FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
