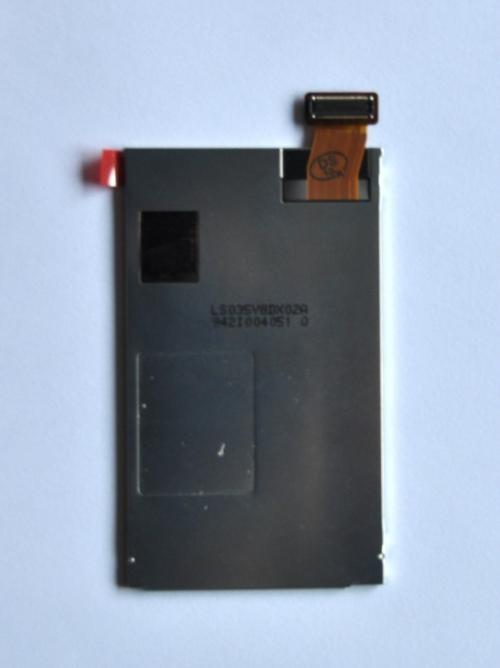

LS035Y8DX02A Sharp 3.5" LCM 480×800 RGB 500 cd/m² INDUSTRIAL LCD DISPLAY
Price:
Negotiable
MOQ:
1PCS
Delivery Time:
1-2 DAYS
Brand:
SHARP
Product Description
LS035 Series LS035Y8DX02A LS035Y8DX06 LS035Y8DX04A LS035Y8DX04
Sharp LS035Y8DX02A Application Features
| Basic Information : | Brand Name | Model Name | Type | Model Alias |
|---|---|---|---|---|
| SHARP | LS035Y8DX02A | CG-Silicon , LCM | - | |
| Maximum Ratings : | RoHS | Operating Temperature | Storage Temperature | Vibration Level |
| -20 ~ 70 °C | -30 ~ 80 °C | - |
Sharp LS035Y8DX02A Optical Features
| Basic Information : | Luminance | Work Mode | Contrast Ratio |
|---|---|---|---|
| 500 cd/m² (Typ.) | ASV, Normally Black, Transflective | 500:1 (Typ.) (Transmissive) 10:1 (Typ.) (Reflective) | |
| Good View at | Viewing Angle | Response Time | |
| Symmetry | 80/80/80/80 (Typ.)(CR≥5) | 11/24 (Typ.)(Tr/Td) (ms) | |
| Dispaly Color : | Color Temperature: | Support Color | Color Coordinate |
| 8266K | 16.7M (8-bit) | X:0.290; Y:0.310 | |
| 1931 Color Gamlt : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 52% | 72% | 54% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 54% | 39% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| White Uniformity : | 1.25 (Typ.)(9 points) | ||
| Performance : | 3D Technology | Outdoor Visibility | Reflectance |
| - | Sunlight Readable | 1.5% (Typ.) | |
Sharp LS035Y8DX02A Backlight Features
| Back-light Features: | Type | Position | Life(Hours) | Amount | Shape | Replacement |
|---|---|---|---|---|---|---|
| WLED | Edge light type | - | 7S1P | 1 string | - | |
| WLED Electrical : | Input Voltage | Input Current | Power Consumption | |||
| 21.7V (Typ.) | 20mA (Typ.) | |||||
| Interface Features : | WLED Driver State | Physical Type | Interface Position | |||
| No | Included in panel signal interface | - | ||||
Sharp LS035Y8DX02A Mechanical Features
| Screen Size : | 3.5" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Number | Pixel Format | Dot Pitch (H×V) | Pixel Pitch (H×V) |
| 480(RGB)×800, WVGA | RGB Vertical Stripe | 0.0315×0.0945 mm | 0.0945×0.0945 mm [268PPI] | |
| Mechanical Size : | Display Area (H×V) | Bezel Opening (H×V) | Overall Dimension (H×V) | Overall Depth |
| 45.36×75.6 mm | - | 51.16×86.45 mm | 2.0 (Typ.) mm | |
| Outline Features : | Form Shape | Aspect Ratio (H:V) | Orientation | Shape Style |
| Flat Rectangle | 3:5 | Portrait type | ||
| Other Spec : | Mass | Panel Cover | Surface Treatment | |
| 16.6g (Typ.) | - | - | ||
Sharp LS035Y8DX02A Electronics Features
| Refresh Rate : | 60Hz |
|---|---|
| Reverse Scan : | No |
| Driver IC List: | Built-in R63302 |
Sharp LS035Y8DX02A Interface Features
| Signal Electrical : | Input Voltage | Input Current | Power Consumption | |||
|---|---|---|---|---|---|---|
| 1.8/2.8V (Typ.)(VDDIO/VCC) | 20.5mA (Typ.)(IDD+ICC) | - | ||||
| Voltage for Display Signals : | 0≤VIL≤0.2VDDIO; 0.8VDDIO≤VIH≤VDDIO | |||||
| Interface Features : | Signal Type | Physical Type | Interface Position | |||
| Parallel RGB (1 ch, 8-bit) + SPI | Connector | - | ||||
| Interface Detail : | Brand Name | Model Name | Amount | Pins | Pin Pitch | Pin Configuration |
| 1 pcs | 50 pins | |||||
Sharp LS035Y8DX02A Packing Features
| Package Box : | Amount | Weight | Size (L×W×H) |
|---|---|---|---|
| 240 pcs / box | 9.0 KGs | 365×530×235 mm (L×W×H) |
