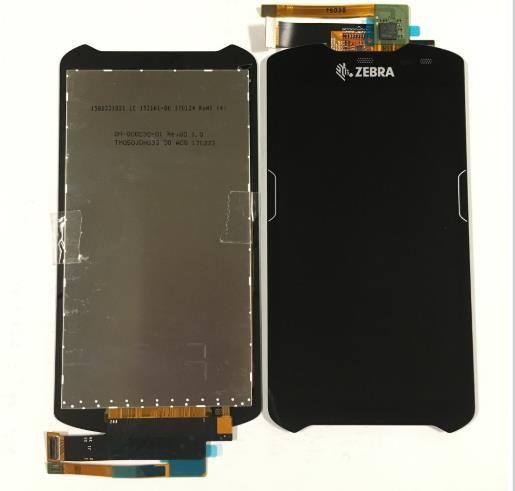

TM050JDHG33 TIANMA 5.0" 720(RGB)×1280 600 cd/m² INDUSTRIAL LCD DISPLAY

Price Negotiable
Price: Negotiable
MOQ: 1PCS
Delivery Time: 1-2 DAYS
Brand: TIANMA
Product Description

TIANMA TM050JDHG33 Application Details

Basic Detail :
Manufacturer

Model Name
TM050JDHG33
Panel Type
a-Si TFT-LCD , LCM
Another Name
-
Panel Size
5.0 inch
Designed For
Maximum Ratings :
OP Temperature
-20 ~ 70 °C
ST Temperature
-30 ~ 80 °C
RoHS

Vibration Level
-
Features :

  • Portrait type
  • Hight Brightness
  • WLED Backlight



TIANMA TM050JDHG33 Optical Details

Basic Detail :
Luminance
600 cd/m² (Typ.)
Contrast Ratio
800:1 (Typ.) (Transmissive)
Good View at
Symmetry
Response Speed
30 (Typ.)(Tr+Td) ms
Viewing Angle
80/80/80/80 (Typ.)(CR≥10)
Operating Mode
SFT, Normally Black, Transmissive
Color Performance :
Chromaticity
Wx:0.312; Wy:0.341
Support Color
16.7M (8-bit)
Color Temperature
6444K
White Variation
1.25/1.33 (Typ./Max.)(9 points)
1931 Color Gamlt :
NTSC Ratio
76%
sRGB
98% coverage
Adobe RGB
76% coverage
DCI-P3
79% coverage
Rec.2020
56% coverage
Remarks
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020



TIANMA TM050JDHG33 Mechanical Details

Pixel Features :
Number of Pixel
720(RGB)×1280, WXGA
Arrangement
RGB Vertical Stripe
Dot Pitch(W×H)
0.02875×0.08625 mm
Pixel Pitch(W×H)
0.08625×0.08625 mm [294PPI]
Physical Size :
Active Viewing
62.1(W)×110.4(H) mm
Overall Dim.
65.4(W)×118.9(H) mm
Bezel Opening
-
Overall Depth
1.7±0.1 mm
Outline Features :
Form Shape
Flat Rectangle
Orientation
Portrait type
Aspect Ratio(W:H)
9:16
Shape Style

Other Detail :
Mass
TBD
Surface
Clear, Hard coating



TIANMA TM050JDHG33 Electronics Details

Refresh Rate :
60Hz
Reverse Scan :
No
Driver IC :
COG Built-in ILI9881C



TIANMA TM050JDHG33 Interface Detail

Signal Electrical :
Input Current
-
Input Voltage
1.8/2.8V (Typ.)(VDDIO/VCC)
Consumption
-
Signal Interface
MIPI (4 data lanes)
Interface Features :
Position
-
Type
Connector
Interface Detail :
Brand
Model
Pitch
Pins
Amount
Pin Assignment
HRS
DF30FC-34DP-0.4V
0.4 mm
34 pins
1 pcs



TIANMA TM050JDHG33 Lightting Details

Lamp Features :
Lamp Type
WLED
Amount
6S2P
Position
Edge light type
Exchange
-
Lamp Shape
2 strings
Lamp Life
20K(Typ.) (Hours)
Lamp Electrical :
Input Voltage
19.2V (Typ.)
Input Current
20mA (Typ.)
Consumption
0.77/1.23W (Typ./Max.)
Interface Features :
Position
-
Type
Included in panel signal interface
Backlight Driver :
No



TIANMA TM050JDHG33 Packing Details

Package Box : Amount Size (L×W×H) Weight
192 pcs / box 11.7 Kgs 544×365×250 mm



 FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours
