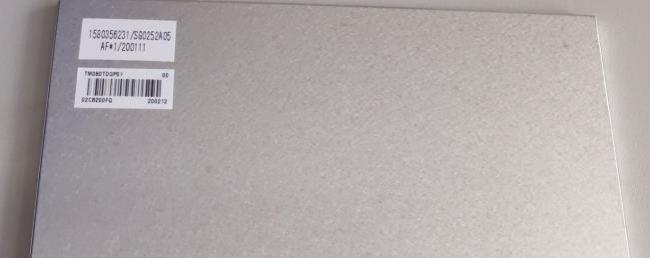

TM080TDGP01 TIANMA 8.0" 1024(RGB)×768 580 cd/m² INDUSTRIAL LCD DISPLAY
Price:
Negotiable
MOQ:
1PCS
Delivery Time:
1-2 DAYS
Brand:
TIANMA
Product Description
TIANMA TM080TDGP01 Application Details
| Basic Information : | Brand | Model | TM080TDGP01 | |
|---|---|---|---|---|
| Type | LCM a-Si TFT-LCD | Used For | ||
| Screen Size | 8.0" | Alias | - | |
| Environment : | Storage Temp. | -30 ~~ 80 °C | Operating Temp. | -20 ~~ 70 °C |
| RoHS | Vibration | - | ||
| Typical Features : |
|
|||
TIANMA TM080TDGP01 Mechanical Details
| Pixel Features : | Resolution | 1024(RGB)×768, XGA | Dot Pitch(mm) | 0.05275×0.15825 (H×V) |
|---|---|---|---|---|
| Pixel Format | RGB Vertical Stripe | Pixel Pitch(mm) | 0.15825×0.15825 (H×V) [160PPI] | |
| Mechanical Size : | Active Area(mm) | 162.048(H) × 121.536(V) | Bezel Area(mm) | 164.65(H) × 122.54(V) |
| Outline Dim.(mm) | 183.43(H) × 138.35(V) | Depth(mm) | 3.75±0.3 | |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | |
| Aspect Ratio | 4:3 (H:V) | Orientation | Landscape type | |
| Mounting : | Without | |||
| Other Spec : | Weight | TBD | Treatment | Hard coating |
TIANMA TM080TDGP01 Optical Details
| Basic Information : | Luminance(cd/m²) | 580 (Typ.) | Contrast Ratio | 1200:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) | Display Mode | SFT, Normally Black, Transmissive | |
| Best View on | Symmetry | Response(ms) | 35 (Typ.)(Tr+Td) | |
| Color Performance : | White Coordinate | X:0.310; Y:0.329 | Display Colors | 16.7M (8-bit) |
| Color Temperature | 6647K | White Uniformity | 1.18/1.25 (Typ./Max.)(9 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 52% | sRGB | 71% coverage |
| Adobe RGB | 54% coverage | DCI-P3 | 54% coverage | |
| Rec.2020 | 39% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
TIANMA TM080TDGP01 Electronics Details
| Frame Rate : | 60Hz |
|---|---|
| Reverse Scan : | Yes (U/D, L/R) |
| Driver IC : | COG Suggest RM51150+HX8684B |
TIANMA TM080TDGP01 Interface Details
| Signal Electrical : | Voltage Supply | 3.3/12.6/23/-7.0V (Typ.)(DVDD/AVDD/VGH/VGL) | Current Supply | TBD | ||
|---|---|---|---|---|---|---|
| Signal Type : | LVDS (1 ch, 8-bit) | Signal Voltage | - | |||
| Interface Features : | Position | - | Type | FPC | ||
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| 1 pcs | 40 pins | 0.5 mm | ||||
TIANMA TM080TDGP01 Backlight Details
| Backlight Features: | Shape | Array | Type | WLED | Position | Edge light type |
|---|---|---|---|---|---|---|
| Replacement | - | Quantity | 3S9P | Life Time | 30K(Typ.) (Hours) | |
| Lamp Electrical : | Voltage Supply | 9.3±0.9V | Current Supply | 180/225mA (Typ./Max.) | ||
| Consumption | 1.67/2.3W (Typ./Max.) | |||||
| Interface Features : | Position | - | Type | Included in panel signal interface | ||
| Backlight Driver : | No | |||||
TIANMA TM080TDGP01 Packing Details
| Package Box : | Quantity | Weight | Box Size |
|---|---|---|---|
| 48 pcs / box | TBD | 544×365×250 mm (L×W×H) |
FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
