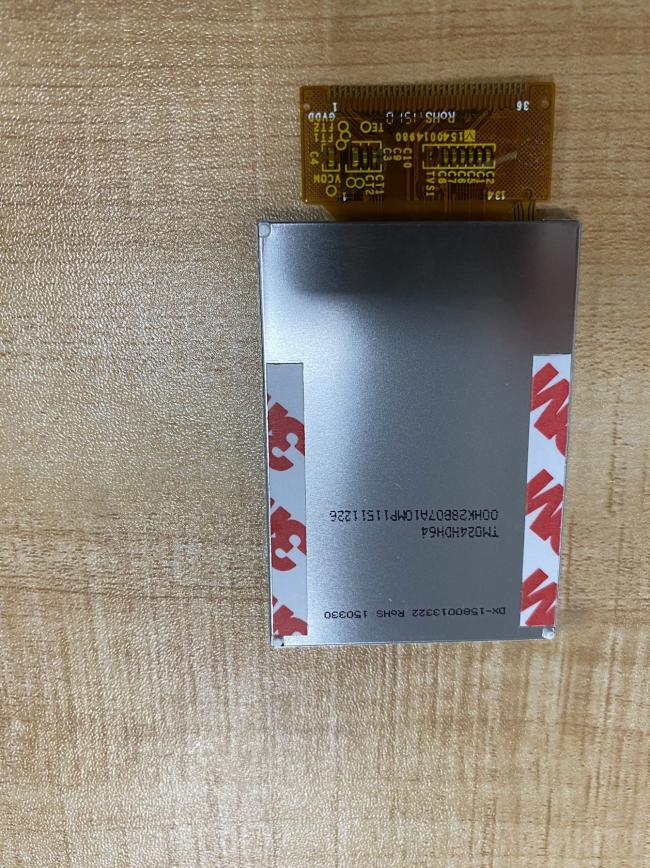

TM024HDH49 TIANMA 2.4" 240(RGB)×320 200 cd/m² INDUSTRIAL LCD DISPLAY
TIANMA TM024HDH49 Application Features
| Basic Information : | Brand Name | Model Name | Type | Model Alias |
|---|---|---|---|---|
| TM024HDH49 | a-Si TFT-LCD , LCM | - | ||
| Maximum Ratings : | RoHS | Operating Temperature | Storage Temperature | Vibration Level |
| -20 ~ 70 °C | -30 ~ 80 °C |
TIANMA TM024HDH49 Mechanical Features
| Screen Size : | 2.4" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Number | Pixel Format | Dot Pitch (H×V) | Pixel Pitch (H×V) |
| 240(RGB)×320, QVGA | RGB Vertical Stripe | 0.051×0.153 mm | 0.153×0.153 mm [166PPI] | |
| Mechanical Size : | Display Area (H×V) | Bezel Opening (H×V) | Overall Dimension (H×V) | Overall Depth |
| 36.72×48.96 mm | - | 42.72×60.26 mm | 2.25±0.2 mm | |
| Outline Features : | Form Shape | Aspect Ratio (H:V) | Orientation | Shape Style |
| Flat Rectangle | 3:4 | Portrait type | ||
| Other Spec : | Mass | Panel Cover | Surface Treatment | |
| 12.0g (Typ.) | - | Clear | ||
TIANMA TM024HDH49 Optical Features
| Basic Information : | Luminance | Work Mode | Contrast Ratio |
|---|---|---|---|
| 200 cd/m² (Typ.) | TN, Normally White, Transmissive | 500:1 (Typ.) (Transmissive) | |
| Good View at | Viewing Angle | Response Time | |
| 6 o'clock | 70/70/70/60 (Typ.)(CR≥10) | 20 (Typ.)(Tr+Td) (ms) | |
| Dispaly Color : | Color Temperature: | Support Color | Color Coordinate |
| 8553K | 262K (6-bit) | X:0.286; Y:0.311 | |
| 1931 Color Gamut : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 52% | 73% | 55% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 55% | 39% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| White Uniformity : | 1.25 (Typ.)(9 points) | ||
TIANMA TM024HDH49 Electronics Features
| Refresh Rate : | 60Hz |
|---|---|
| Reverse Scan : | No |
| Driver IC List: | COG Built-in HX8347-G |
TIANMA TM024HDH49 Backlight Features
| Back-light Features: | Type | Position | Life(Hours) | Amount | Shape | Replacement |
|---|---|---|---|---|---|---|
| WLED | Edge light type | 20K(Typ.) | 1S4P | Parallel | - | |
| WLED Electrical : | Input Voltage | Input Current | Power Consumption | |||
| 3.2V (Typ.) | 15mA (Typ.) | 192mW (Typ.) | ||||
| Interface Features : | WLED Driver State | Physical Type | Interface Position | |||
| No | Included in signal interface | |||||
TIANMA TM024HDH49 Interface Features
| Signal Electrical : | Input Voltage | Input Current | Power Consumption | |||
|---|---|---|---|---|---|---|
| 2.8/2.8V (Typ.)(IOVCC/VCC) | - | 30/36mW (Typ./Max.) | ||||
| Interface Features : | Signal Type | Physical Type | Interface Position | |||
| 8/9/16/18-bit 8080 parallel | FPC | - | ||||
| Interface Detail : | Brand Name | Model Name | Amount | Pins | Pin Pitch | Pin Configuration |
| 1 pcs | 24 pins | 0.5 mm | ||||
whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 36.72(W)×48.96(H) mm, outline size of 42.72(W)×60.26(H)×2.45(D) mm, with surface treament of Clear, net weight of 12.0g (Typ.). As a TN, Normally White, Transmissive LCM product, TM024HDH49 can provides 200 cd/m² display brightness 500:1 transimissive contrast ratio, 70/70/70/60 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 6 o'clock , and response time of 20 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors, also with performance of color gamut 53% (NTSC). This product adopted 1S4P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 20K hours, external backlight driver is additionally needed. TM024HDH49 utilizes 8/9/16/18-bit 8080 parallel as it's signal inputting systerm, which connected by 24 pins FPC with power supply voltage of 2.8/2.8V (Typ.)(IOVCC/VCC).
