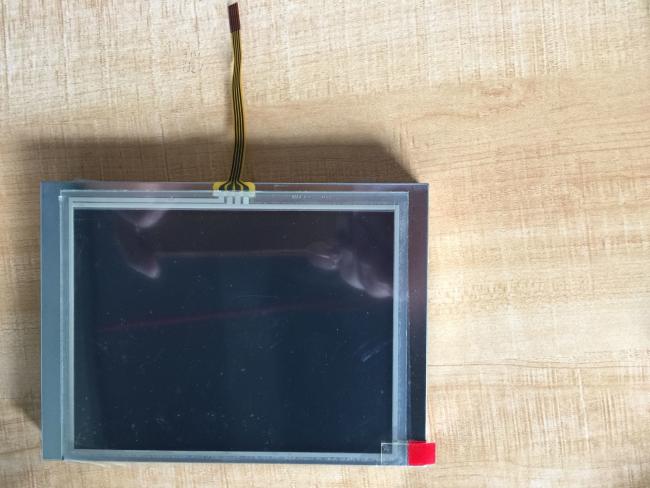

TM057KBHG01 TIANMA 5.7" 320(RGB)×240 320 cd/m² INDUSTRIAL LCD DISPLAY
Price:
Negotiable
MOQ:
1PCS
Delivery Time:
1-2 DAYS
Brand:
YIANMA
Product Description
TIANMA TM057KBHG01 Application Details
| Basic Info : | Panel Brand | Panel Model | TM057KBHG01 | |
|---|---|---|---|---|
| Diagonal Size | 5.7" | Application | ||
| Panel Type | a-Si TFT-LCD , LCM | Model Alias | - | |
| Reliability : | Operating Temp. | -20 ~ 70 °C | Storage Temp. | -30 ~ 80 °C |
| RoHS State | Vibration Rating | - | ||
| Specific Features : |
|
|||
TIANMA TM057KBHG01 Mechanical Details
| Pixel Features : | Pixel Format | 320(RGB)×240 [QVGA] | Dot Pitch | 0.120×0.360 mm (H×V) |
|---|---|---|---|---|
| Configuration | RGB Vertical Stripe | Pixel Pitch | 0.360×0.360 mm (H×V) [70PPI] | |
| Mechanical Size : | Display Area | 115.2×86.4 mm (H×V) | Bezel Area | 117.6×88.8 mm (H×V) |
| Outline Dim. | 144×104.6 mm (H×V) | Outline Depth | 14.0 (Max.) mm | |
| Outline Features : | Form Factor | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio | 4:3 (H:V) | Shape Style | ||
| Touch Screen : | Touch Points | - | TP Signal | - |
| TP Controller | Without touch controller | Touchscreen | 4-wire Resistive Touch | |
| Holes & Brackets : | Rear mounting poles (4-Φ2.6) | |||
| Other Features : | Weight | TBD | Surface | Antiglare, Hard coating (3H) |
TIANMA TM057KBHG01 Optical Details
| Basic Information : | Brightness | 320 cd/m² (Typ.) | Contrast Ratio | 500:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 70/70/60/70 (Typ.)(CR≥10) | Optical Mode | TN, Normally White, Transmissive | |
| Viewing Direction | 6 o'clock | Response Time | 20 (Typ.)(Tr+Td) (ms) | |
| Color Performance : | Chromaticity | Wx:0.320; Wy:0.360 | Color Numbers | 262K (6-bit) |
| Color Temperature | 5983K | White Uniformity | 1.25/1.33 (Typ./Max.)(9 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 53% | sRGB | 73% coverage |
| Adobe RGB | 56% coverage | DCI-P3 | 55% coverage | |
| Rec.2020 | 40% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
TIANMA TM057KBHG01 Electronics Details
| Frame Frequency : | 60Hz |
|---|---|
| Reverse Scan : | Yes (U/D, L/R) |
TIANMA TM057KBHG01 Backlight Details
| Back-light Features: | Lamp Shape | 3 strings | Lamp Type | WLED | Life Time | 50K(Typ.) (Hours) |
|---|---|---|---|---|---|---|
| Replacement | - | Amount | 5S3P | Position | Edge light type | |
| Lamp Electrical : | Voltage Input | 14.85/18.15V (Min./Max.) | Current Input | 25mA (Typ.) | ||
| Consumption | 1.238mW (Typ.) | |||||
| Interface Features : | Type | Included in panel signal interface | Position | - | Lamp Driver | No |
TIANMA TM057KBHG01 Interface Details
| Signal Systerm : | Parallel RGB (1 ch, 6-bit) | Logic Voltage | - | |||
|---|---|---|---|---|---|---|
| Signal Electrical : | Voltage Input | 3.3V (Typ.) | Current Input | 110mA (Typ.) | ||
| Interface Features : | Type | Connector | Position | - | ||
| Connector Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| STARCONN | 089H33-000100-G2-R | 0.5 mm | 33 pins | 1 pcs | DRGB-33P1C6B-020B | |
TIANMA TM057KBHG01 Carton Details
| Package Carton : | Amount | Net Weight | Carton Size (L×W×H) |
|---|---|---|---|
| 40 pcs / box | TBD | 530×350×250 mm |
