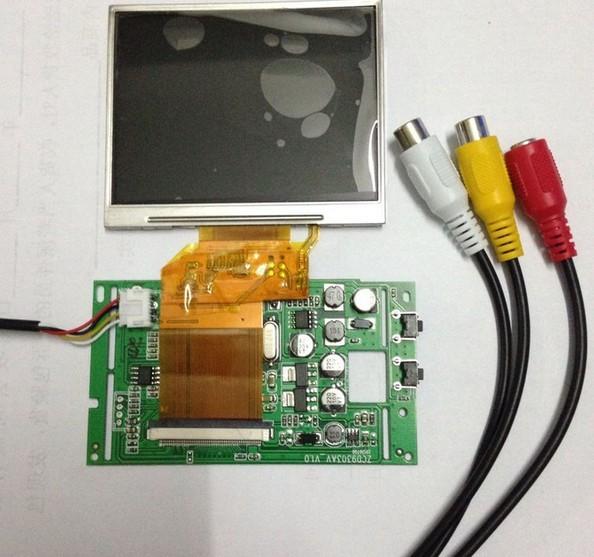

TM035KBH04 TIANMA 3.5" 320(RGB)×240 320 cd/m² INDUSTRIAL LCD DISPLAY
Price:
Negotiable
MOQ:
1PCS
Delivery Time:
1-2 DAYS
Brand:
TIANMA
Product Description
TIANMA TM035KBH04 Application Details
| Basic Info : | Panel Brand | Panel Model | TM035KBH04 | |
|---|---|---|---|---|
| Diagonal Size | 3.5" | Application |
|
|
| Panel Type | a-Si TFT-LCD , LCM | Model Alias | - | |
| Reliability : | Operating Temp. | -20 ~ 70 °C | Storage Temp. | -30 ~ 80 °C |
| RoHS State | Vibration Rating | - | ||
| Specific Features : |
|
|||
| Remarks : | 3 in1 FPC; Left side FPC (16.00mm length | |||
TIANMA TM035KBH04 Mechanical Details
| Pixel Features : | Pixel Format | 320(RGB)×240 [QVGA] | Dot Pitch | 0.073×0.219 mm (H×V) |
|---|---|---|---|---|
| Configuration | RGB Vertical Stripe | Pixel Pitch | 0.219×0.219 mm (H×V) [115PPI] | |
| Mechanical Size : | Display Area | 70.08×52.56 mm (H×V) | Bezel Area | 72.08×54.56 mm (H×V) |
| Outline Dim. | 76.9×63.9 mm (H×V) | Outline Depth | 4.45/6.0 (Typ./Max.) mm | |
| Outline Features : | Form Factor | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio | 4:3 (H:V) | Shape Style | ||
| Touch Screen : | Touch Points | - | TP Signal | - |
| TP Controller | Without touch controller | Touchscreen | 4-wire Resistive Touch | |
| Other Features : | Weight | 40.0g | Surface | Antiglare, Hard coating (3H) |
TIANMA TM035KBH04 Optical Details
| Basic Information : | Brightness | 320 cd/m² (Typ.) | Contrast Ratio | 350:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 65/65/50/60 (Typ.)(CR≥10) | Optical Mode | TN, Normally White | |
| Viewing Direction | 12 o'clock | Response Time | 25 (Typ.)(Tr+Td) (ms) | |
| Color Performance : | Chromaticity | Wx:0.288; Wy:0.312 | Color Numbers | 16.7M |
| Color Temperature | 8367K | White Uniformity | 1.25/1.33 (Typ./Max.)(9 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 54% | sRGB | 73% coverage |
| Adobe RGB | 56% coverage | DCI-P3 | 56% coverage | |
| Rec.2020 | 41% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
TIANMA TM035KBH04 Electronics Details
| Frame Frequency : | 60Hz |
|---|---|
| Reverse Scan : | No |
| Time Controller (T-CON) : | Embedded T-CON |
TIANMA TM035KBH04 Backlight Details
| Back-light Features: | Lamp Shape | 1 string | Lamp Type | WLED | Life Time | 20K(Min.) (Hours) |
|---|---|---|---|---|---|---|
| Replacement | - | Amount | 6S1P | Position | Edge light type | |
| Lamp Electrical : | Voltage Input | 19.2/21.6V (Typ./Max.) | Current Input | 20/25mA (Typ./Max.) | ||
| Consumption | 384mW (Typ.) | |||||
| Interface Features : | Type | Included in panel signal interface | Position | - | Lamp Driver | No |
TIANMA TM035KBH04 Interface Details
| Signal Systerm : | Digital RGB (8/24-bit) + SPI, CCIR601/656 | Logic Voltage | 0≤VIL≤0.2VDD; 0.8VDD≤VIH≤VDD | |||
|---|---|---|---|---|---|---|
| Signal Electrical : | Voltage Input | 3.3/3.3V (Typ.)(VCI/VDD) | Current Input | - | ||
| Consumption | 40/50mW (Typ./Max.) | |||||
| Interface Features : | Type | FPC | Position | - | ||
| FPC Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| 0.3 mm | 45 pins | 1 pcs | ||||
TIANMA TM035KBH04 Carton Details
| Package Carton : | Amount | Net Weight | Carton Size (L×W×H) |
|---|---|---|---|
| 180 pcs / box | 15.10±0.75 Kg | 544×365×250 mm |
