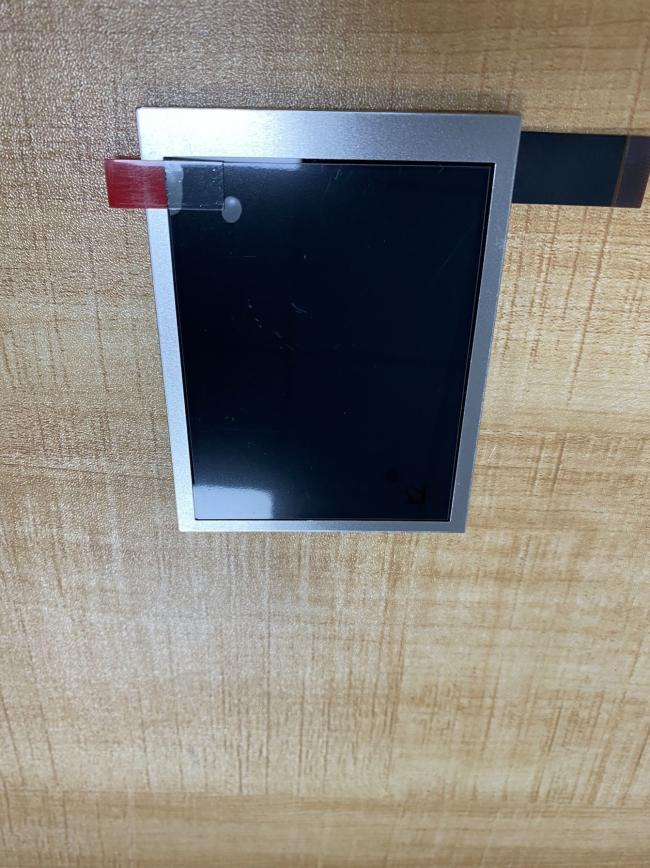

TM050JDZG41 TIANMA 5.0" 720(RGB)×1280 350 cd/m² INDUSTRIAL LCD DISPLAY
Price:
Negotiable
MOQ:
1PCS
Delivery Time:
1-2 DAYS
Brand:
TIANMA
Product Description
TIANMA TM050JDZG41 Application Details
| Basic Detail : | Manufacturer | Model Name | TM050JDZG41 | |
|---|---|---|---|---|
| Panel Type | a-Si TFT-LCD , LCM | Another Name | - | |
| Panel Size | 5.0 inch | Designed For | ||
| Maximum Ratings : | OP Temperature | -20 ~ 70 °C | ST Temperature | -30 ~ 80 °C |
| Vibration Level | - | RoHS | ||
| Features : |
|
|||
TIANMA TM050JDZG41 Optical Details
| Basic Information : | Luminance | 350 cd/m² (Typ.) | Contrast Ratio | 800 : 1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Good View at | Symmetry | Response Speed | 25 (Typ.)(Tr+Td) (ms) | |
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥10) | Operating Mode | SFT, Normally Black, Transmissive | |
| Color Performance : | Chromaticity | Wx:0.303; Wy:0.319 | Support Color | 16.7M (8-bit) |
| Color Temperature | 7176K | White Uniformity | 1.18/1.25 (Typ./Max.)(9 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 71% | sRGB | 93% coverage |
| Adobe RGB | 71% coverage | DCI-P3 | 73% coverage | |
| Rec.2020 | 53% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
TIANMA TM050JDZG41 Mechanical Details
| Pixel Features : | Number of Pixel | 720(RGB)×1280 [WXGA] | Arrangement | RGB Vertical Stripe |
|---|---|---|---|---|
| Dot Pitch(W×H) | 0.02875×0.08625 mm | Pixel Pitch(W×H) | 0.08625×0.08625 mm [294PPI] | |
| Physical Size : | Active Viewing | 62.1(W)×110.4(H) mm | Overall Dim. | 64.9(W)×118.95(H) mm |
| Bezel Opening | - | Overall Depth | 1.9 (Typ.) mm | |
| Outline Features : | Form Shape | Flat Rectangle | Orientation | Portrait type |
| Aspect Ratio(W:H) | 9:16 | Shape Style | ||
| Other Detail : | Mass | TBD | Surface | Hard coating |
TIANMA TM050JDZG41 Electronics Details
| Refresh Rate : | 60Hz |
|---|---|
| Reverse Scan : | No |
| Driver IC : | COG Built-in ILI9881C |
TIANMA TM050JDZG41 Interface Details
| Signal Electrical : | Input Current | TBD | Input Voltage | 1.8/2.8V (Typ.)(VDDI/AVDD) | ||
|---|---|---|---|---|---|---|
| Consumption | TBD | Signal Interface | MIPI (4 data lanes) | |||
| Interface Features : | Position | - | Physical Type | FPC | ||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| 1 pcs | 0.3 mm | 25 pins | ||||
TIANMA TM050JDZG41 Lightting Details
| Lamp Features: | Lamp Shape | Array | Lamp Type | WLED | Position | Edge light type |
|---|---|---|---|---|---|---|
| Exchange | - | Amount | 6S2P | Life | 20K(Typ.) (Hours) | |
| Lamp Electrical : | Input Current | 40/50mA (Typ./Max.) | Input Voltage | 19.2±1.2V | ||
| Consumption | 768mW (Typ.) | |||||
| Interface Features : | Position | - | Physical Type | Included in panel signal interface | ||
| Backlight Driver : | No | |||||
TIANMA TM050JDZG41 Packing Details
| Package Box : | Amount | Size (L×W×H) | Weight |
|---|---|---|---|
| 108 pcs / box | 395×290×315 mm |
FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
