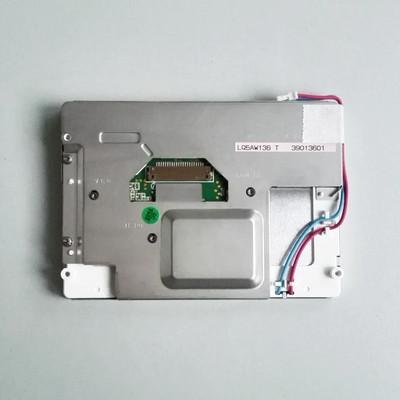

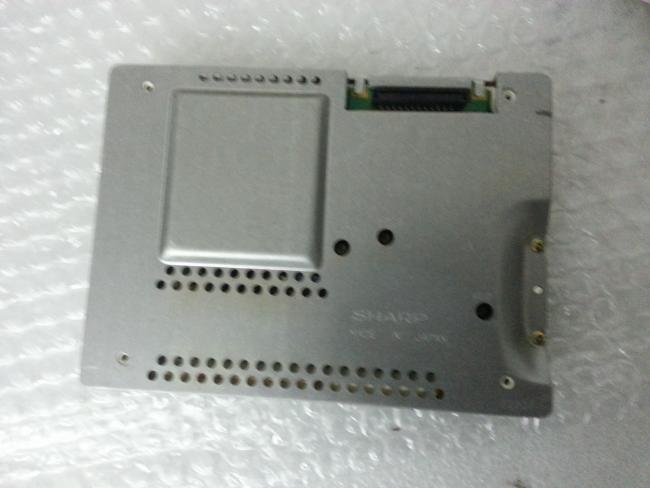

LQ5AW136T Sharp 5" LCM 320×234RGB  320cd/m² INDUSTRIAL LCD DISPLAY

Price Negotiable
Price: Negotiable
MOQ: 1PCS
Delivery Time: 1-2DAYS
Brand: Sharp
Product Description

LQ5 Series LQ5AW136T LQ5AW136 LQ5AW116



Sharp LQ5AW136T Application Details

Basic Info :
Panel Brand
SHARP
LQ5AW136TPanel Model
Diagonal Size
5.0"
Application

a-Si TFT-LCD , LCMPanel Type
Model Alias
-
Reliability :
Operating Temp.
-30 ~ 85 °C
Storage Temp.
-30 ~ 85 °C



Sharp LQ5AW136T Mechanical Details

Pixel Features :
Pixel Format
320(RGB)×234
Dot Pitch
0.1065×0.3195 mm (H×V)
Configuration
RGB Vertical Stripe
Pixel Pitch
0.3195×0.3195 mm (H×V) [79PPI]
Mechanical Size :
Display Area
102.2×74.8 mm (H×V)
Bezel Area
-
Outline Features :
Form Factor
Flat Rectangle
Orientation
Landscape type
Aspect Ratio
4:3 (H:V)
Shape Style




Sharp LQ5AW136T Backlight Details

Back-light Features :
Lamp Type
CCFL
Amount
1 pcs
Life Time
-
Replacement
-
Lamp Shape
U shape
Position
Edge light type
Interface Features :
Type
Connector
Position
-
Lamp Driver
No
Interface Detail :
Brand
Model
Pin Pitch
Pins
Amount
Configuration
JST
BHR-02(8.0)VS-1N
8.0 mm
2 pins
1 pcs
BLL-2PINS-HL





FAQ:

Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.

Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.

Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.

Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
