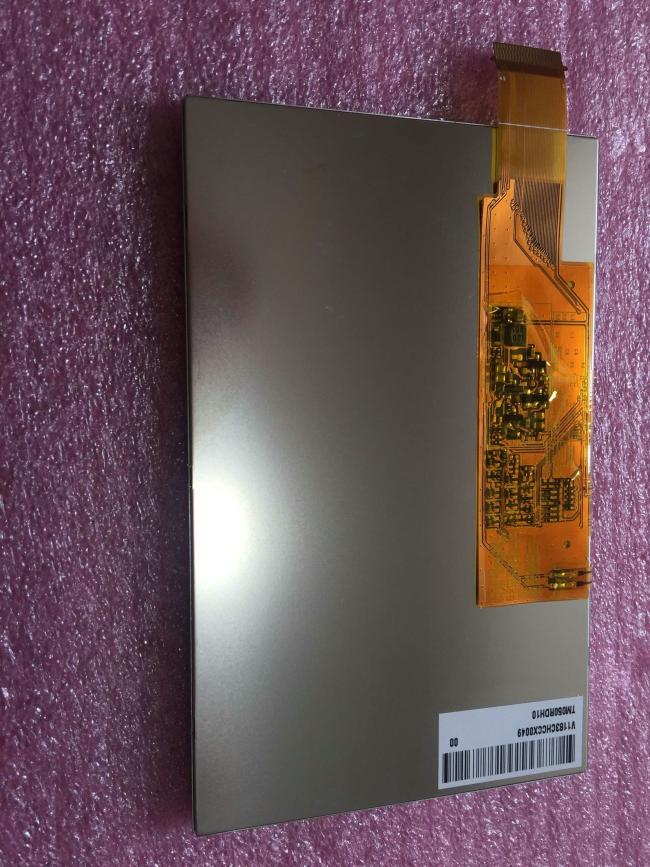

TM050RDH10 TIANMA 5.0" 800(RGB)×480 350 cd/m² INDUSTRIAL LCD DISPLAY

Price Negotiable
Price: Negotiable
MOQ: 1PCS
Delivery Time: 1-2 DAYS
Brand: TIANMA
Product Description

TIANMA TM050RDH10 Application Details

Basic Info :
Panel Brand

Panel Model
TM050RDH10
Diagonal Size
5.0"
Application

Panel Type
a-Si TFT-LCD , LCM
Model Alias
-
Reliability :
Operating Temp.
-20 ~ 70 °C
Storage Temp.
-30 ~ 80 °C
RoHS State

Vibration Rating
-
Specific Features :

  • Matte



TIANMA TM050RDH10 Mechanical Details

Pixel Features :
Pixel Format
800(RGB)×480, WVGA
Dot Pitch
0.045×0.135 mm (H×V)
Configuration
RGB Vertical Stripe
Pixel Pitch
0.135×0.135 mm (H×V) [188PPI]
Mechanical Size :
Display Area
108×64.8 mm (H×V)
Bezel Area
111.1×67.9 mm (H×V)
Outline Dim.
120.7×75.8 mm (H×V)
Outline Depth
3.0/5.0 (Typ./Max.) mm
Outline Features :
Form Factor
Flat Rectangle
Orientation
Landscape type
Aspect Ratio
15:9 (H:V)
Shape Style

Other Features :
Weight
TBD
Surface
Antiglare



TIANMA TM050RDH10 Optical Details

Basic Information :
Brightness
350 cd/m² (Typ.)
Contrast Ratio
500:1 (Typ.) (Transmissive)
Viewing Angle
70/70/60/70 (Typ.)(CR≥10)
Optical Mode
TN, Normally White, Transmissive
Viewing Direction
12 o'clock
Response Time
20 (Typ.)(Tr+Td) ms
Color Performance :
Chromaticity
Wx:0.320; Wy:0.340
Color Numbers
16.7M (8-bit)
Color Temperature
6066K
Uniformity
1.25/1.33 (Typ./Max.)(9 points)
1931 Color Gamlt :
NTSC Ratio
49%
sRGB
68% coverage
Adobe RGB
52% coverage
DCI-P3
51% coverage
Rec.2020
37% coverage
Remarks
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)



TIANMA TM050RDH10 Electronics Details

Frame Frequency :
60Hz
Reverse Scan :
No
Time Controller (T-CON) :
Embedded T-CON



TIANMA TM050RDH10 Backlight Details

Back-light Features :
Lamp Type
WLED
Amount
6S3P
Life Time
20K(Typ.) (Hours)
Replacement
-
Lamp Shape
Array
Position
Edge light type
Lamp Electrical :
Voltage Input
19.2V (Typ.)
Current Input
60mA (Typ.)
Consumption
1.15W (Typ.)
Interface Features :
Type
Included in panel signal interface
Position
-
Lamp Driver
No



TIANMA TM050RDH10 Interface Detail

Signal Systerm :
Parallel RGB (1 ch, 8-bit)
Logic Voltage
0≤VIL≤0.3VDD; 0.7VDD≤VIH≤VDD
Signal Electrical :
Voltage Input
3.3V (Typ.)
Current Input
-
Consumption
330/396mW (Typ./Max.)
Interface Features :
Type
FPC
Position
-
FPC Detail :
Brand
Model
Pin Pitch
Pins
Amount
Configuration


0.3 mm
45 pins
1 pcs
