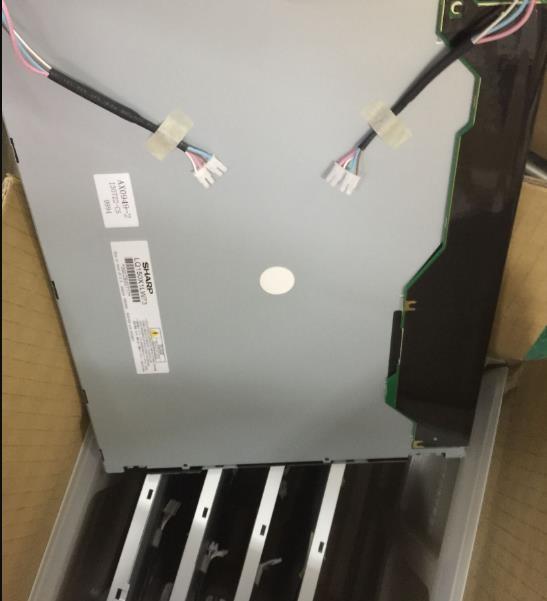

LQ190E1LW72 Sharp 19" LCM 1280×1024RGB 350cd/m² INDUSTRIAL LCD DISPLAY
Price:
Negotiable
MOQ:
1PCS
Delivery Time:
1-2 DAYS
Brand:
SHARP
Product Description
LQ190 Series LQ190E1LW72 LQ190E1LW62 LQ190E1LW61
Sharp LQ190E1LW72 Application Details
| Basic Info : | Panel Brand | SHARP | Panel Model | LQ190E1LW72 |
|---|---|---|---|---|
| Diagonal Size | 19.0" | Application |
|
|
| Panel Type | a-Si TFT-LCD , LCM | Model Alias | - | |
| Reliability : | Operating Temp. | -20 ~ 70 °C | Storage Temp. | -25 ~ 70 °C |
| RoHS State | Vibration Rating | - |
Sharp LQ190E1LW72 Mechanical Details
| Pixel Features : | Pixel Format | 1280(RGB)×1024 [SXGA] | Dot Pitch | 0.098×0.294 mm (H×V) |
|---|---|---|---|---|
| Configuration | RGB Vertical Stripe | Pixel Pitch | 0.294×0.294 mm (H×V) [86PPI] | |
| Mechanical Size : | Display Area | 376.32×301.056 mm (H×V) | Bezel Area | 382.00×307.55 mm (H×V) |
| Outline Dim. | 396×323.6 mm (H×V) | Outline Depth | 11.5±0.5 mm | |
| Outline Features : | Form Factor | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio | 5:4 (H:V) | Shape Style | ||
| Holes & Brackets : | Side mounting holes (4-M3) on left, right bezel | |||
| Other Features : | Weight | 1.30Kgs (Max.) | Surface | Antiglare (Haze 25%), Hard coating (3H) |
Sharp LQ190E1LW72 Optical Details
| Basic Information : | Brightness | 350 cd/m² (Typ.) | Contrast Ratio | 1500:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) | Optical Mode | ASV, Normally Black, Transmissive | |
| Viewing Direction | Symmetry | Response Time | 35 (Typ.)(Tr+Td) (ms) | |
| Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Color Numbers | 16.7M (8-bit) |
| Color Temperature | 6485K | White Uniformity | 1.33 (Max.)(5 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 78% | sRGB | 100% coverage |
| Adobe RGB | 78% coverage | DCI-P3 | 81% coverage | |
| Rec.2020 | 58% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
Sharp LQ190E1LW72 Electronics Details
| Frame Frequency : | 60Hz |
|---|---|
| Reverse Scan : | No |
| Power Consumption : | 19.6W |
Sharp LQ190E1LW72 Backlight Details
| Back-light Features: | Lamp Shape | - | Lamp Type | WLED | Life Time | 70K(Typ.) (Hours) |
|---|---|---|---|---|---|---|
| Replacement | - | Amount | - | Position | Edge light type | |
| Interface Features : | Type | Connector | Position | Lamp Driver | With LED Driver | |
| Interface Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| JST | SM10B-SHLS-TF | 1.0 mm | 10 pins | 1 pcs | ||
| Driver Electrical : | Voltage Input | 12.0±1.2V | Current Input | 1.4/1.9A (Typ./Max.) | ||
Sharp LQ190E1LW72 Interface Details
| Signal Systerm : | LVDS (2 ch, 8-bit) | Logic Voltage | - | |||
|---|---|---|---|---|---|---|
| Signal Electrical : | Voltage Input | 5.0V (Typ.) | Current Input | 550/1100mA (Typ./Max.) | ||
| Interface Features : | Type | Connector | Position | |||
| Connector Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| JAE | FI-XB30SSRLA-HF16 | 1.0 mm | 30 pins | 1 pcs | LVDS-30P2C8B-200A | |
