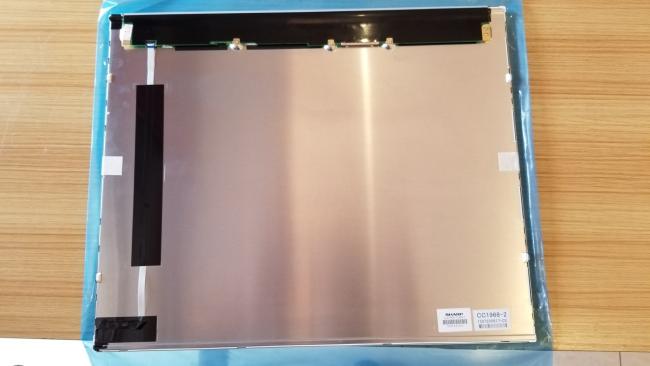

LQ190E1LW62 Sharp 19" LCM 1280×1024RGB 450cd/m² INDUSTRIAL LCD DISPLAY
Price:
Negotiable
MOQ:
1PCS
Delivery Time:
1-2 DAYS
Brand:
SHARP
Product Description
LQ190 Series LQ190E1LW72 LQ190E1LW62 LQ190E1LW61
Sharp LQ190E1LW62 Mechanical Features
| Panel Size : | 19.0 inch | |||
|---|---|---|---|---|
| Pixel Features : | Resolution | Pixel Arrangement | Dot Pitch (W×H) | Pixel Pitch (W×H) |
| 1280(RGB)×1024, SXGA | RGB Vertical Stripe | 0.098×0.294 mm | 0.294×0.294 mm [86PPI] | |
| Mechanical Size : | Active Area (W×H) | Bezel Area (W×H) | Outline Dimension (W×H) | Outline Depth |
| 376.32×301.056 mm | - | 396×323.5 mm | 11.5±0.5 mm | |
| Outline Features : | Form Style | Aspect Ratio | Orientation | Shape Style |
| Flat Rectangle | 5:4 (W : H) | Landscape type | ||
| Fixation : | Side mounting holes (4-M3) on left, right bezel | |||
| Other Features : | Panel Cover | Weight | Surface | |
| - | 1.30Kgs (Max.) | Antiglare, Hard coating (3H) | ||
Sharp LQ190E1LW62 Optical Features
| Basic Information : | Brightness | Operating Mode | Contrast Ratio |
|---|---|---|---|
| 450 cd/m² (Typ.) | ASV, Normally Black, Transmissive | 1000:1 (Typ.) (Transmissive) | |
| Viewing Angle(L/R/U/D) | Viewing Direction | Response Speed | |
| 85/85/85/85 (Typ.)(CR≥10) | Symmetry | 12 (Typ.)(Tr+Td) (ms) | |
| Dispaly Color : | Color Temperature | Color Amount | White color Chromaticity |
| 6485K | 16.7M (8-bit) | X:0.313; Y:0.329 | |
| 1931 Color Gamlt : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 92% | 100% | 88% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 94% | 68% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| Luminance Variation : | 1.33 (Max.)(5 points) | ||
Sharp LQ190E1LW62 Interface Features
| Signal Electrical : | Current Input | Voltage Input | Consumption | |||
|---|---|---|---|---|---|---|
| 0.55/1.00A (Typ./Max.) | 5.0V (Typ.) | - | ||||
| Interface Features : | Position | Type | Interface | |||
| Connector | LVDS (2 ch, 8-bit) | |||||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pins | Pin Assignment |
| HRS | DF14H-30P-1.25H(56) | 1 pcs | 1.25 mm | 30 pins | LVDS-30P2C8B-190C | |
Sharp LQ190E1LW62 Backlight Features
| Backlight Features: | Type | Position | Shape | Amount | Life(Hours) | Replacement |
|---|---|---|---|---|---|---|
| WLED | Edge light type | - | - | 50K(Typ.) | - | |
| Interface Features : | Position | Type | WLED Driver | |||
| Connector | With LED Driver | |||||
| Interface Detail | Brand | Model | Amount | Pin Pitch | Pins | Pin Assignment |
| JST | SM10B-SHLS-TF | 1 pcs | 1.0 mm | 10 pins | ||
| Driver Electrical : | Current Input | Voltage Input | Consumption | |||
| - | 12.0±1.2V | - | ||||
FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
