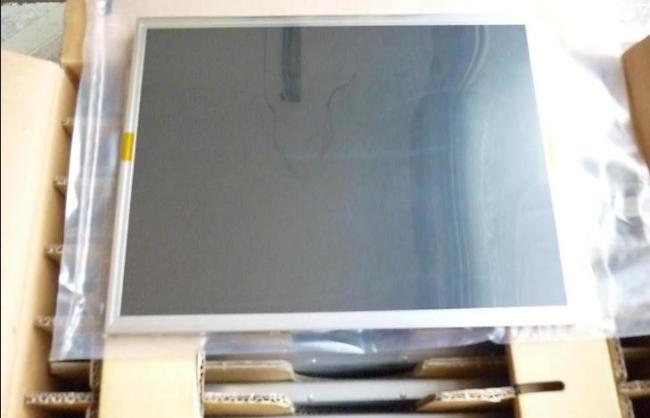

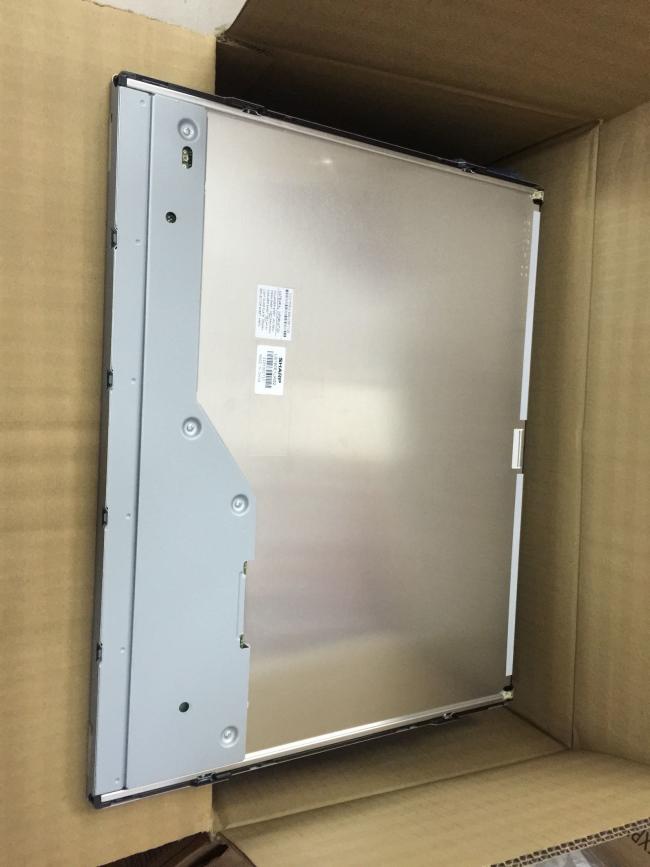

19" LCM 1280×1024RGB 450cd/m² LQ190E1LW52 Sharp TFT LCD Display
Price:
Negotiable
MOQ:
1PCS
Delivery Time:
1-2 DAYS
Brand:
SHARP
Product Description
LQ190 Series LQ190E1LW52 LQ190E1LW42 LQ190E1LW02 LQ190E1LW01
Sharp LQ190E1LW52 Mechanical Features
| Screen Size : | 19.0" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Number | Pixel Format | Dot Pitch (H×V) | Pixel Pitch (H×V) |
| 1280(RGB)×1024, SXGA | RGB Vertical Stripe | 0.098×0.294 mm | 0.294×0.294 mm [86PPI] | |
| Mechanical Size : | Display Area (H×V) | Bezel Opening (H×V) | Overall Dimension (H×V) | Overall Depth |
| 376.32×301.056 mm | 382.20×307.00 mm | 404.2×330 mm | 15.7 (Max.) mm | |
| Outline Features : | Form Shape | Aspect Ratio (H:V) | Orientation | Shape Style |
| Flat Rectangle | 5:4 | Landscape type | ||
| Other Spec : | Mass | Panel Cover | Surface Treatment | |
| 1.85Kgs (Max.) | - | Antiglare (Haze 40%), Hard coating (2H) | ||
| Holes & Brackets : | Side mounting holes (4-M3) on left, right bezel | |||
Sharp LQ190E1LW52 Optical Features
| Basic Information : | Luminance | Work Mode | Contrast Ratio |
|---|---|---|---|
| 450 cd/m² (Typ.) | ASV, Normally Black, Transmissive | 1000:1 (Typ.) (Transmissive) | |
| Good View at | Viewing Angle | Response Time | |
| Symmetry | 85/85/85/85 (Min.)(CR≥10) | 12 (Typ.)(Tr+Td) (ms) | |
| Dispaly Color : | Color Temperature: | Support Color | Color Coordinate |
| 7351K | 16.7M (8-bit) | X:0.300; Y:0.320 | |
| 1931 Color Gamlt : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 71% | 92% | 72% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 74% | 53% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| White Uniformity : | 1.43 (Max.)(9 points) | ||
Sharp LQ190E1LW52 Backlight Features
| Back-light Features: | Type | Position | Life(Hours) | Amount | Shape | Replacement |
|---|---|---|---|---|---|---|
| WLED | Edge light type | 30K(Typ.) | 5 strings × 2CN | 5 strings × 2CN | Replaceable | |
| WLED Electrical : | Input Voltage | Input Current | Power Consumption | |||
| 21.0/23.8V (Typ./Max.) | 85/90mA (Typ./Max.) | 17.9/21.5W (Typ./Max.) | ||||
| Interface Features : | WLED Driver State | Physical Type | Interface Position | |||
| No | Connector | |||||
| Interface Detail | Brand Name | Model Name | Amount | Pins | Pin Pitch | Pin Configuration |
| molex | 501568-0607 | 2 pcs | 6 pins | 1.0 mm | BLE-6PINS-ACCCCC | |
Sharp LQ190E1LW52 Interface Features
| Signal Electrical : | Input Voltage | Input Current | Power Consumption | |||
|---|---|---|---|---|---|---|
| 5.0V (Typ.) | 0.75/1.40A (Typ./Max.) | - | ||||
| Interface Features : | Signal Type | Physical Type | Interface Position | |||
| LVDS (2 ch, 8-bit) | Connector | |||||
| Interface Detail : | Brand Name | Model Name | Amount | Pins | Pin Pitch | Pin Configuration |
| JAE | FI-X30SSL-HF | 1 pcs | 30 pins | 1.0 mm | LVDS-30P2C8B-160H | |
