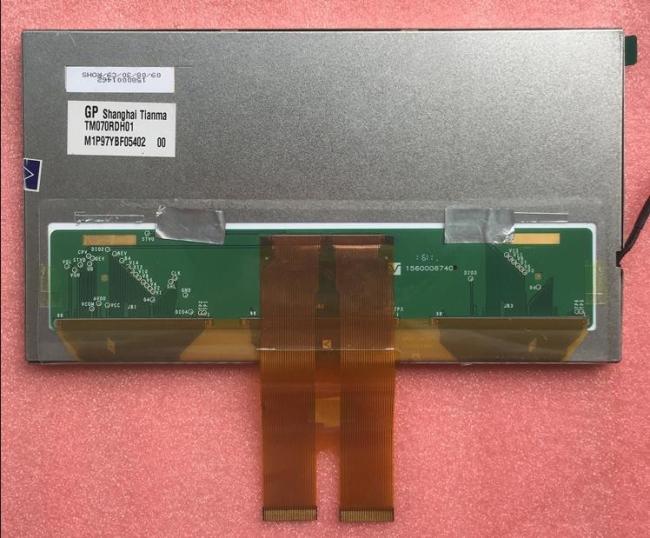

7.0" 800×480RGB 400nits Tianma LCD Panel TM070RDH01 70/70/60/70 (Typ.)(CR≥10)

Price Negotiable
Price: Negotiable
MOQ: 1PCS
Delivery Time: 1-2 DAYS
Brand: TIANMA
Product Description

TIANMA TM070RDH01 Application Details

Basic Information :
Brand

Model
TM070RDH01 1 Compatible
Type
a-Si TFT-LCD , LCM
Used For




Screen Size
7.0 inch
Alias
TS070RAATD01-00
Environment :
Storage Temp.
-30 ~ 80 °C
Operating Temp.
-20 ~ 70 °C
RoHS

Vibration
-
Typical Features :







TIANMA TM070RDH01 Mechanical Details

Pixel Features :
Resolution
800(RGB)×480, WVGA
Dot Pitch(mm)
0.0655×0.1715 (H×V)
Pixel Format
RGB Vertical Stripe
Pixel Pitch(mm)
0.1965×0.1715 (H×V) [133PPI]
Mechanical Size :
Active Area(mm)
157.2(H) × 82.32(V)
Bezel Area(mm)
160.2(H) × 85.32(V)
Outline Dim.(mm)
167(H) × 93(V)
Depth(mm)
5.4/6.1 (Typ./Max.)
Outline Features :
Form Style
Flat Rectangle
Shape Style

Aspect Ratio
17:9 (H:V)
Orientation
Landscape type
Mounting :
Without
Other Spec :
Weight
138g (Typ.)
Treatment
Antiglare



TIANMA TM070RDH01 Optical Details

Basic Information :
Luminance(cd/m²)
400 (Typ.)
Contrast Ratio
400:1 (Typ.) (Transmissive)
Viewing Angle
70/70/60/70 (Typ.)(CR≥10)
Display Mode
TN, Normally White, Transmissive
Best View on
12 o'clock
Response(ms)
25 (Typ.)(Tr+Td)
Color Performance :
White Coordinate
Wx:0.315; Wy:0.334
Display Colors
262K (6-bit)
Color Temperature
6343K
White Uniformity
1.25/1.33 (Typ./Max.)(9 points)
1931 Color Gamlt :
NTSC Ratio
50%
sRGB
70% coverage
Adobe RGB
52% coverage
DCI-P3
52% coverage
Rec.2020
37% coverage
Remarks
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)



TIANMA TM070RDH01 Electronics Details

Frame Rate :
60Hz
Reverse Scan :
Yes (U/D, L/R)
Total Consumption:
2.22W (Typ.)
Time Controller (T-CON) :
Need external T-CON



TIANMA TM070RDH01 Interface Detail

Signal Electrical :
Voltage Supply
3.3/3.3/9.84/19.0/-7.0V (Typ.)(VCC/VDD1/VDD2/VGG/VEE)
Current Supply
3.5/3.5/28/0.22/0.22mA (Typ.)(ICC/IDD1/IDD2/IGG/IEE)
Consumption
0.30/0.42W (Typ./Max.)
Signal Type :
TTL (1 ch, 6-bit)
Logic Voltage
0≤VIL≤0.2VDD1; 0.8VDD1≤VIH≤VDD1
Interface Features :
Position
-
Type
FPC
Interface Detail :
Brand
Model
Pitch
Pins
Quantity
Pin Configuration


0.5 mm
30 pins
2 pcs



TIANMA TM070RDH01 Backlight Details

Backlight Features :
Type
WLED
Quantity
3S10P
Position
Edge light type
Replacement
-
Shape
Array
Life Time
20K(Typ.) (Hours)
Lamp Electrical :
Voltage Supply
9.6/10.2V (Typ./Max.)
Current Supply
200/250mA (Typ./Max.)
Consumption
1.92/2.55W (Typ./Max.)
Interface Features :
Position
-
Type
Connector
Interface Detail :
Brand
Model
Pitch
Pins
Quantity
Pin Configuration
JST
BHSR-02VS-1
3.5 mm
2 pins
1 pcs
BLE-2PINS-AC
Backlight Driver :
No



TIANMA TM070RDH01 Packing Details

Package Box : Quantity Weight Box Size
50 pcs / box 10.579 Kgs 530×350×250 mm (L×W×H)
